Rotary Kiln Alignment: A Complete Field Guide to Hot Kiln Measurement, Trunnion Adjustment, and Critical Component Inspection

A rotary kiln operating in misalignment is not simply running inefficiently — it is destroying itself. Every revolution of a misaligned kiln imposes bending loads on the shell that were never in the design, accelerates tyre and riding ring wear asymmetrically, overloads individual trunnion bearings, and drives abnormal tooth contact patterns in the girth gear. The damage accumulates silently, invisible to operators, until a tyre cracks, a Babbitt bearing overheats, or a girth gear tooth fractures — and a cement plant or mineral processing facility loses weeks of production.

Proper kiln alignment is not a commissioning task performed once and forgotten. It is a continuous maintenance discipline that must be executed with precision, on a live kiln running at operating temperature, by engineers who understand both the measurement methodology and the mechanical consequences of each adjustment.

This guide consolidates the field-proven practices used by reliability engineers at major cement and mining operations worldwide — covering hot kiln alignment measurement, trunnion roller adjustment procedures, shell ovality analysis, and the critical component inspections that must accompany every alignment campaign.

Why "Cold" Kiln Alignment Is Not Enough

The most important concept in rotary kiln alignment is that a kiln must be aligned in its operating condition — hot, rotating, and under load. Cold alignment measurements, taken during a shutdown with the kiln stationary and at ambient temperature, are useful for initial installation checks but are fundamentally insufficient for ongoing alignment management.

Here is why:

Thermal expansion changes everything. A cement rotary kiln operating at 1,450°C process temperature has a shell surface temperature of 250–400°C. At these temperatures, the steel shell expands significantly — both radially (increasing shell diameter) and axially (extending shell length). The kiln shell of a 5-meter diameter, 80-meter long cement kiln can expand axially by 80–120mm from cold to hot. The support piers, being at ambient temperature, do not expand at the same rate. The result is that the geometric relationship between the shell axis and the trunnion roller surfaces changes substantially between cold and hot conditions.

Shell sag changes under load. A loaded kiln shell sags between support stations under the weight of the charge and the shell itself. This sag is absent in a cold, empty kiln. Cold measurements therefore show a different shell axis geometry than the operating condition.

Tyre migration is a dynamic phenomenon. The floating tyre design used on most kilns allows the tyre to migrate axially relative to the shell during operation. The migration rate and direction depend on trunnion roller skew angle and operating temperature — neither of which can be assessed on a cold, stationary kiln.

The industry consensus is clear: hot kiln alignment measurement, performed with the kiln rotating at normal operating speed and temperature, is the only method that provides actionable data for alignment corrections.

The Four Pillars of Rotary Kiln Alignment

A complete kiln alignment assessment addresses four interdependent elements. Correcting one without assessing the others is a common mistake that leads to repeat failures.

Pillar 1: Shell Axis Alignment (Centerline Survey)

The shell axis — the theoretical centerline of the rotating kiln — should ideally be a straight line passing through all support stations. In practice, it is never perfectly straight, and the goal is to keep deviations within acceptable limits.

What misalignment of the shell axis causes:

• Cyclic bending stresses in the shell at each revolution — the primary cause of shell fatigue cracking

• Uneven load distribution between support stations — overloading some trunnion bearings while underloading others

• Abnormal tyre and riding ring wear patterns — one side of the tyre contact surface wears faster than the other

• Girth gear misalignment — the gear plane tilts relative to the pinion, causing edge loading of gear teeth

How it is measured (hot):

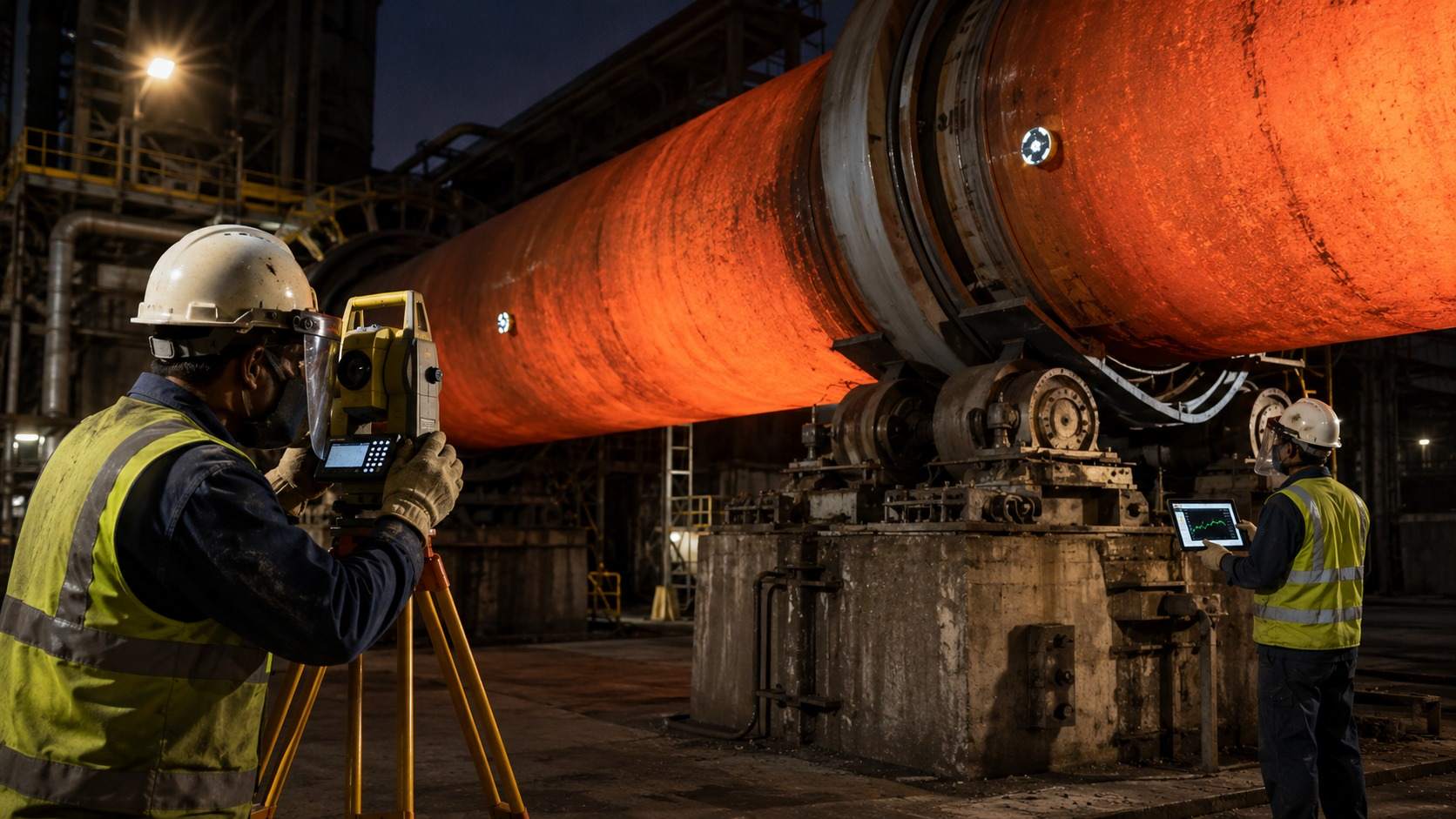

The modern standard for hot kiln centerline measurement uses optical survey instruments (total station or laser tracker) to measure the position of reference targets on the kiln shell at multiple points around each tyre station, while the kiln rotates. By measuring the eccentricity of the shell at each station, the true axis position can be calculated and compared to the ideal straight line through all stations.

Traditional methods using piano wire or optical levels have been largely superseded by laser-based measurement systems that provide higher accuracy and can be performed safely from outside the kiln's hot zone.

Acceptable limits:

Most kiln OEM specifications and industry practice set a maximum allowable deviation of the shell axis from the ideal straight line at ±3–5mm per meter of kiln length between adjacent support stations. Deviations exceeding this range require correction.

Pillar 2: Tyre and Riding Ring Condition

The tyre (riding ring) is the interface between the rotating kiln shell and the stationary support rollers. Its condition directly reflects the alignment history of the kiln and determines the quality of load transfer to the support structure.

Key tyre parameters to measure during hot alignment:

Tyre migration (axial float):

The tyre should migrate slowly back and forth between defined limits — typically ±25–50mm from the centerline of the riding ring width. Excessive migration in one direction indicates incorrect trunnion roller skew angle. Zero migration (a "locked" tyre) is equally problematic — it indicates the tyre is constrained, generating axial thrust loads that damage thrust rollers and bearings.

Tyre slip (rotational slip between tyre and shell):

The floating tyre design intentionally allows a small amount of rotational slip between the tyre and the kiln shell. This slip is necessary to prevent the tyre from imposing its own thermal expansion constraints on the shell. Correct slip rate is typically 0.5–1.5% of kiln circumference per revolution. Excessive slip causes rapid wear of the tyre retaining pads and shell filler bars; insufficient slip causes shell ovality to develop.

Tyre ovality:

A perfectly manufactured tyre is circular. In service, thermal cycling and mechanical loading can cause the tyre to become oval. Tyre ovality is measured by comparing the maximum and minimum diameters — acceptable ovality is typically less than 0.1% of the nominal tyre diameter (i.e., less than 5mm for a 5,000mm diameter tyre).

Tyre surface condition:

The rolling surface of the tyre should be smooth and free from:

• Spalling or pitting (indicates contact fatigue from overloading or hard spots)

• Polygonization (flat spots developing from vibration or incorrect roller contact)

• Corrosion pitting (from condensation during cold shutdowns)

• Transverse cracks (indicates thermal fatigue — a serious condition requiring immediate assessment)

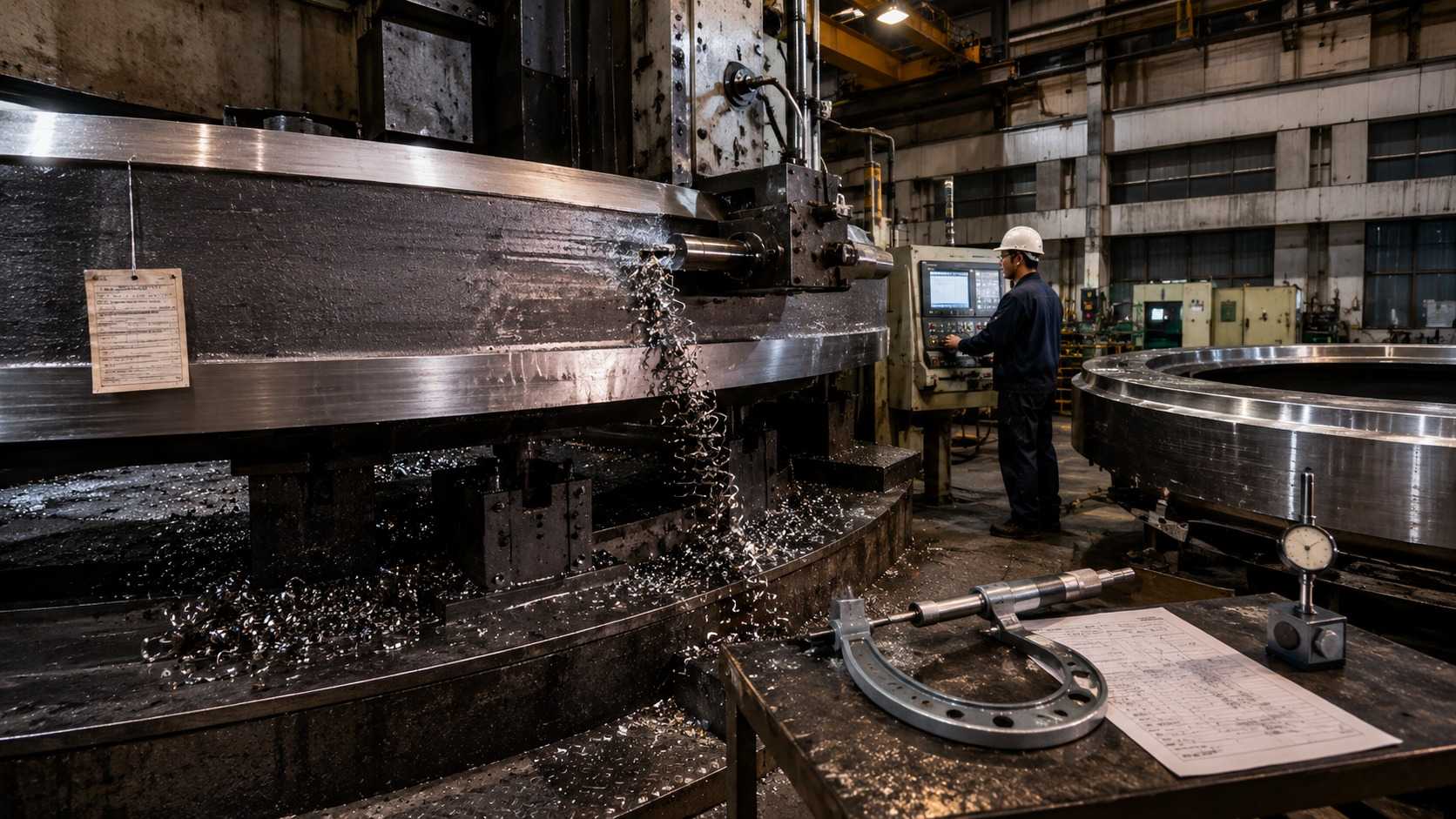

Yile Machinery manufactures replacement cast steel tyres and riding rings in ZG45 and ZG42CrMo steel, precision-machined to tight roundness tolerances and fully stress-relieved to prevent in-service cracking.

Pillar 3: Trunnion Roller Geometry and Bearing Condition

The trunnion rollers are the most actively adjustable elements in the kiln support system. Their position and skew angle are the primary tools for correcting shell axis misalignment and controlling tyre migration.

Trunnion roller parameters:

Roller skew angle:

Each trunnion roller can be skewed (rotated slightly about a vertical axis) relative to the kiln axis. This skew creates an axial thrust component in the contact force between roller and tyre, which drives the kiln axially in a controlled direction. Correct skew angle settings are the primary method for controlling tyre migration and axial kiln position.

Typical skew angles are very small — 0.5° to 2° from parallel — but their effect on kiln axial behavior is significant. Incorrect skew settings are one of the most common causes of excessive tyre migration, thrust roller overloading, and asymmetric tyre wear.

Roller contact pattern:

The contact between the trunnion roller and the tyre should be uniform across the full width of the roller face. Incorrect contact patterns indicate:

• Roller axis not parallel to tyre axis (roller skew in the vertical plane) — causes edge loading and rapid wear at one end of the roller

• Shell axis misalignment at that station — causes the tyre to approach the roller at an angle

• Tyre or roller surface damage — causes localized high-pressure contact

Contact pattern is assessed by applying a thin coat of marking compound (engineer's blue or equivalent) to the roller surface and observing the transfer pattern on the tyre after one revolution.

Roller surface condition:

Trunnion roller surfaces should be inspected for:

• Spalling and pitting (contact fatigue)

• Banding (circumferential wear grooves from abrasive contamination)

• Thermal cracking (from overheating due to bearing failure or lubrication loss)

• Polygonization (matching the tyre polygon pattern — indicates the tyre has developed ovality)

Trunnion bearing condition:

The Babbitt (white metal) bearings that support the trunnion roller shafts are the most maintenance-sensitive components in the kiln support system. Their condition must be assessed at every alignment campaign.

Key indicators of bearing distress:

• Elevated bearing temperature (> 65°C for oil-lubricated Babbitt bearings) — indicates inadequate oil film, contamination, or overloading

• Oil discoloration (darkening, metallic particles) — indicates Babbitt wear or contamination

• Abnormal vibration at the bearing housing — indicates shaft misalignment or Babbitt damage

• Visual inspection of Babbitt surface (during planned shutdown) — scoring, wiping, or delamination indicates bearing distress

Yile Machinery manufactures and re-Babbits rotary kiln trunnion bearings with 100% ultrasonic bond testing to guarantee void-free Babbitt adhesion — the most common cause of premature bearing failure.

Pillar 4: Girth Gear and Pinion Alignment

The girth gear is the largest and most expensive single component in the kiln drive system. Its alignment with the drive pinion must be maintained within tight tolerances to prevent premature tooth wear, fatigue fracture, and catastrophic drive failure.

Girth gear alignment parameters:

Radial runout:

The girth gear should rotate concentrically with the kiln shell axis. Radial runout (eccentricity of the gear pitch circle relative to the rotation axis) causes the center distance between gear and pinion to vary cyclically with each revolution — alternately loading and unloading the tooth mesh. Acceptable radial runout is typically ≤ 1.5mm total indicator reading (TIR) for large kiln girth gears.

Axial runout (face runout):

The gear face should be perpendicular to the rotation axis. Axial runout causes the gear to wobble axially as it rotates, driving the pinion in and out of correct mesh. Acceptable axial runout is typically ≤ 1.0mm TIR.

Backlash:

Correct backlash between girth gear and pinion is essential. Insufficient backlash causes tooth interference and overheating; excessive backlash causes impact loading at each tooth engagement. Correct backlash for large module kiln girth gears is typically 0.3–0.5mm per 100mm of module (e.g., for a Module 30 gear: 9–15mm backlash).

Tooth contact pattern:

The contact pattern across the gear tooth face should be centered and uniform. Edge loading (contact concentrated at one end of the tooth face) is the most common cause of girth gear tooth fatigue fracture and must be corrected immediately.

Yile Machinery manufactures replacement segmented girth gears for rotary kilns and ball mills in ZG42CrMo alloy steel, cast with vacuum degassing (VD) technology and precision-machined to DIN gear accuracy standards.

Step-by-Step Hot Kiln Alignment Procedure

The following procedure represents current best practice for a comprehensive hot kiln alignment campaign. It should be performed by qualified alignment engineers with appropriate instrumentation.

Phase 1: Pre-Measurement Preparation (24–48 Hours Before Measurement)

1.1 Establish baseline operating conditions

Record and verify that the kiln is operating at normal production conditions:

• Kiln speed: normal operating RPM (not reduced for maintenance)

• Feed rate: normal production rate

• Shell temperature: stabilized at normal operating profile

• All auxiliary systems (lubrication, cooling fans) operating normally

Do not perform hot alignment measurements during startup, shutdown, or abnormal operating conditions — the thermal state of the kiln will not represent the true operating condition.

1.2 Install measurement targets

Attach reflective survey targets to the kiln shell at defined positions around each tyre station. Targets should be positioned at equal angular intervals (typically 8–12 targets per station) and at a consistent axial distance from the tyre centerline.

1.3 Set up instrumentation

Position the total station or laser tracker at a location with clear line of sight to all measurement stations. Establish a stable reference coordinate system tied to the kiln foundation structure (not to the kiln itself, which is moving).

1.4 Record tyre migration rate

Before beginning shell axis measurements, observe and record the tyre migration rate at each station. Mark a reference point on the tyre and the shell, and measure the relative displacement after a defined number of revolutions. This establishes the baseline migration rate before any roller adjustments are made.

Phase 2: Hot Shell Axis Measurement

2.1 Measure shell eccentricity at each station

With the kiln rotating at normal speed, record the position of each shell target as it passes through the measurement arc. For each station, this produces a set of points that define the circle traced by the shell surface at that axial location.

2.2 Calculate shell axis positions

From the measured circle at each station, calculate the center position — this is the shell axis position at that station. Compare the calculated axis positions at all stations to the theoretical ideal straight line (the design centerline).

2.3 Identify misalignment pattern

Plot the shell axis positions to identify the misalignment pattern:

• Simple vertical sag: Shell axis sags below the ideal line at the mid-span station — normal and expected; assess magnitude

• Lateral offset: Shell axis displaced horizontally at one or more stations — indicates roller position error

• Angular misalignment: Shell axis tilted at a station — indicates differential roller heights or uneven foundation settlement

• Complex pattern: Combination of the above — requires systematic correction sequence

Phase 3: Trunnion Roller Adjustment

Roller adjustments are the primary correction tool for shell axis misalignment. Each adjustment affects multiple parameters simultaneously — shell axis position, tyre migration, bearing load distribution, and gear mesh — so adjustments must be made incrementally and their effects monitored before proceeding.

3.1 Calculate required roller adjustments

Based on the shell axis measurement data, calculate the required roller position changes (lateral and vertical) at each station to bring the shell axis within acceptable limits. This calculation must account for the kinematic constraints of the roller adjustment mechanism at each station.

3.2 Adjust roller skew angles for axial control

Before adjusting roller positions, correct any grossly incorrect skew angles. Skew adjustments affect tyre migration immediately and can be verified by observing migration rate change within a few hours of adjustment.

Skew adjustment procedure:

• Identify which direction the tyre needs to migrate (toward or away from the drive end)

• Adjust both rollers at the station simultaneously, maintaining equal and opposite skew angles to avoid introducing lateral force imbalance

• Make small adjustments (0.1–0.3° increments) and monitor migration rate response before further adjustment

3.3 Adjust roller lateral position

Lateral roller position adjustments (moving the roller perpendicular to the kiln axis) correct horizontal shell axis offset. Adjustments are made by moving the roller bearing housings on their mounting plates using the adjustment screws provided.

3.4 Adjust roller vertical position (if required)

Vertical roller position adjustments (raising or lowering the roller) correct vertical shell axis offset. These adjustments typically require shimming under the roller bearing housings and are more involved than lateral adjustments.

Important: After any roller position adjustment, allow the kiln to run for a minimum of 4–8 hours before taking new measurements. The thermal state of the system needs time to re-equilibrate after mechanical changes.

Phase 4: Girth Gear and Pinion Inspection and Adjustment

4.1 Measure girth gear runout

With the kiln rotating, measure radial and axial runout of the girth gear using dial indicators mounted on a fixed reference. Record runout at multiple points around the circumference to identify the high and low points.

4.2 Inspect tooth contact pattern

Apply marking compound to the pinion teeth and observe the transfer pattern on the girth gear teeth after several revolutions. Document the contact pattern location and uniformity.

4.3 Measure and adjust backlash

Measure backlash at multiple circumferential positions (minimum 4 positions, 90° apart) to assess variation due to gear runout. Adjust pinion position to achieve correct average backlash while keeping variation within acceptable limits.

4.4 Adjust pinion position if required

If tooth contact pattern or backlash measurements indicate misalignment, adjust the pinion bearing housing position (lateral and/or axial) to correct. Pinion adjustments should always be made after shell axis corrections are complete — correcting the shell axis first may resolve apparent gear misalignment without requiring pinion adjustment.

Phase 5: Post-Adjustment Verification and Documentation

5.1 Repeat shell axis measurement

After all adjustments are complete and the kiln has stabilized thermally, repeat the full shell axis measurement to verify that corrections have achieved the target alignment.

5.2 Monitor bearing temperatures

Record bearing temperatures at all stations for a minimum of 24 hours after adjustment completion. Temperatures should stabilize at normal operating levels. Rising temperatures after adjustment indicate a bearing is being overloaded and require immediate investigation.

5.3 Document all measurements and adjustments

A complete alignment report should include:

• Pre-adjustment shell axis measurements (with plots)

• Tyre migration rates (before and after)

• Roller adjustment records (skew angles, lateral and vertical positions)

• Girth gear runout measurements

• Tooth contact pattern photographs

• Backlash measurements

• Post-adjustment shell axis measurements

• Bearing temperature trends

This documentation is essential for trend analysis at future alignment campaigns and for identifying progressive deterioration of components.

Shell Ovality: The Hidden Damage Mechanism

Shell ovality is one of the most damaging conditions in rotary kiln operation — and one of the least understood by plant maintenance teams. It deserves specific attention in any alignment guide.

What Is Shell Ovality?

A rotating kiln shell, supported at discrete stations, deflects slightly under gravity as it rotates. At each support station, the shell is pushed upward by the tyre and rollers; between stations, it sags under its own weight and the weight of the charge. As the shell rotates, each cross-section alternately experiences the support force (at the bottom) and the free-span sag (at the top). This cyclic deformation causes the shell cross-section to become slightly oval — this is shell ovality.

Why Shell Ovality Is Dangerous

Refractory damage: The refractory lining inside the kiln is rigid and cannot deform with the shell. As the shell ovalizes, the refractory experiences cyclic compression and tension — it cracks, loosens, and eventually falls out. Refractory failure is the most common consequence of excessive shell ovality, and refractory replacement is one of the most expensive and time-consuming kiln maintenance activities.

Shell fatigue cracking: The cyclic bending stress associated with ovality fatigues the shell steel. Over time, fatigue cracks develop in the shell plate, particularly at welds and geometric discontinuities.

Tyre and roller wear: An oval shell causes the tyre to oscillate radially as it rotates, generating impact loads on the trunnion rollers and accelerating wear on both tyre and roller surfaces.

Measuring Shell Ovality

Shell ovality is measured by placing a dial indicator or laser displacement sensor in a fixed position adjacent to the shell surface and recording the radial displacement as the shell completes one revolution. The difference between the maximum and minimum readings is the total ovality.

Acceptable ovality limits:

• Normal operation: ≤ 0.3% of shell diameter (e.g., ≤ 15mm for a 5,000mm diameter shell)

• Caution zone: 0.3–0.5% of shell diameter — monitor closely, investigate cause

• Critical: > 0.5% of shell diameter — immediate investigation required; consider reducing production rate

Causes of Excessive Shell Ovality

1. Incorrect tyre fit (excessive tyre clearance): The gap between the tyre and the shell filler bars should be within the design specification. Excessive clearance allows the tyre to "breathe" with the shell ovality rather than restraining it. Measure tyre clearance at multiple points around the circumference.

2. Overloaded support station: A support station carrying more than its design share of the kiln weight will impose a larger upward force on the shell, increasing ovality at that station. Correct by adjusting shell axis alignment to redistribute load.

3. Worn or damaged shell filler bars: The filler bars between the tyre and the shell transfer the support force from the tyre to the shell. Worn filler bars increase effective tyre clearance.

4. Shell deformation from previous ovality damage: Once a shell has been significantly ovalised, it may retain a permanent set that makes it difficult to return to acceptable ovality levels without shell repair or replacement.

Critical Component Inspection Schedule

The following inspection schedule represents the minimum recommended frequency for kiln rotating component inspections. Kilns with known alignment issues or aging components should be inspected more frequently.

When to Replace vs. Repair: Decision Guide for Key Components

Kiln Tyre / Riding Ring

Replace when:

• Surface spalling depth exceeds 10mm

• Transverse cracks detected by NDT

• Ovality exceeds 0.5% of nominal diameter after machining

• Wall thickness reduced below 85% of original by wear

Consider machining (re-turning) when:

• Surface roughness or minor pitting is the primary issue

• Sufficient wall thickness remains after material removal

• Roundness can be restored to within specification

Yile Machinery supplies replacement cast steel riding rings in ZG45 and ZG42CrMo, with full dimensional documentation and NDT certification.

Trunnion Bearing (Babbitt)

Re-Babbit when:

• Babbitt surface shows scoring, wiping, or delamination

• Ultrasonic bond testing reveals voids in the Babbitt-to-shell bond

• Bearing operating temperature has been chronically elevated

• Oil analysis shows elevated metal content

Replace bearing housing when:

• Housing is cracked or structurally damaged

• Housing bore is worn beyond repair limits

Yile Machinery provides both new trunnion bearing manufacture and re-Babbitting services, with 100% ultrasonic bond testing on all Babbitt work.

Girth Gear

Replace when:

• Tooth thickness worn to 70% of original (measured at pitch circle)

• Tooth root cracks detected by MT inspection

• Pitch error has increased beyond DIN accuracy class limits

• Casting defects exposed by wear have reached critical size

Reverse the gear (flip to unworn side) when:

• One face of a double-helical or reversible gear is worn but the other face is serviceable

• This is a planned maintenance strategy that can double gear service life

Yile Machinery manufactures segmented replacement girth gears in two, four, or more segments for simplified field installation without kiln disassembly.

Frequently Asked Questions

Q1: How often should a full hot kiln alignment survey be performed?

The minimum recommended frequency is once per year for kilns in normal operation. Kilns with known alignment issues, aging components, or recent shell repairs should be surveyed every 6 months. Additionally, a full survey should always be performed after any significant maintenance event — shell section replacement, tyre replacement, girth gear replacement, or major foundation work.

Q2: Can we perform kiln alignment ourselves, or do we need a specialist?

Hot kiln alignment requires specialized instrumentation (total station or laser tracker), software for axis calculation, and — critically — experience in interpreting results and sequencing adjustments. The consequences of incorrect adjustments (overloaded bearings, increased shell ovality, gear damage) can be severe. Most cement and mining plants contract specialist alignment firms for the measurement and calculation work, with plant maintenance teams executing the physical roller adjustments under the specialist's direction.

Q3: Our girth gear shows heavy wear on one side of the tooth face. What does this indicate?

One-sided tooth contact (edge loading) is almost always caused by axial misalignment between the girth gear and the pinion — either the gear has excessive axial runout (face wobble), the pinion axis is not parallel to the gear axis, or both. This is a serious condition that will lead to tooth fatigue fracture if not corrected. A full girth gear runout measurement and pinion alignment check should be performed immediately.

Q4: One of our trunnion bearings runs consistently 10–15°C hotter than the others. What should we check?

A bearing running hotter than its neighbors is carrying more than its share of the kiln load — a direct indicator of shell axis misalignment at that station. The first step is to perform a hot alignment survey to quantify the misalignment. In parallel, increase bearing inspection frequency and oil analysis frequency at the affected station. Do not simply increase cooling water flow as a long-term solution — this treats the symptom without addressing the cause. [2]

Q5: We are planning a tyre replacement. What alignment work should be done at the same time?

A tyre replacement is a major maintenance event that provides an opportunity for comprehensive alignment work. We recommend: (1) full hot alignment survey before shutdown to document the pre-replacement condition; (2) shell ovality measurement at the affected station; (3) trunnion roller surface inspection and dimensional check; (4) Babbitt bearing inspection at the affected station; (5) post-installation hot alignment survey after the kiln returns to normal operating temperature. Replacing a tyre without correcting the alignment conditions that caused premature wear will simply repeat the failure.

Q6: What information do I need to provide to get a quote for a replacement riding ring or girth gear?

For a riding ring: outer diameter (OD), inner diameter (ID), face width, material grade (if known), and kiln make/model. For a girth gear: outer diameter, number of teeth, module, face width, number of segments, material grade, and kiln make/model. If drawings are available, please provide them. If not, we can work from key dimensions and the original equipment specification. Contact our engineering team at jasmine@yileindustry.com— we respond to all technical inquiries within 24 hours.

Yile Machinery: Your Single-Source Partner for Rotary Kiln Rotating Components

Maintaining a rotary kiln's alignment and component condition requires a reliable supply of precision-manufactured replacement parts. Yile Machinery manufactures the complete range of rotary kiln rotating components from our integrated facility in Luoyang, China — serving cement, mining, and mineral processing plants worldwide.

All components ship with complete documentation: material certificates, heat treatment records, NDT reports, and dimensional inspection reports.

Email: jasmine@yileindustry.com

Submit your RFQ: www.yilemachinery.com/contactus.html

Emergency breakdown support available. Mark urgent inquiries accordingly for same-business-day response.

Related Products & Resources

• Heavy-Duty Girth Gears for Rotary Kilns, Ball Mills & Dryers

• Cast Steel Riding Rings (Tyres) for Rotary Kilns — ZG45 & ZG42CrMo

• Rotary Kiln Trunnion Bearings — New Manufacture & Re-Babbitting

• Segmented Girth Gears & Large Diameter Split Gears

• Mining & Cement Industry Solutions — Full Component Range

• Heavy-Duty Forged Crusher Rotor Shafts

• Forged vs. Cast Steel Crusher Shafts — Technical Selection Guide

• Worm Gear Material Selection Guide
