A crusher rotor shaft failure is not a maintenance event. It is a catastrophic event. When a shaft fractures at full operating speed inside an impact crusher or hammer mill, the consequences extend far beyond the cost of the shaft itself — destroyed rotor discs, damaged crusher housing, bent tie rods, and in the worst cases, injuries to nearby personnel. Production stops for weeks, not days.
The single most important decision in crusher shaft procurement is not which supplier to use or what price to pay. It is whether the shaft is forged or cast — and whether the material grade matches the actual demands of your application.
This guide gives maintenance engineers, plant managers, and procurement professionals a complete technical basis for making that decision correctly.
Steel is steel — or so it might seem. In reality, the mechanical properties of a finished steel component depend not just on the alloy composition, but critically on how the steel was processed from its molten state into its final shape.
For a crusher rotor shaft, which must endure millions of combined bending, torsional, and impact load cycles over its service life, the difference between a forged shaft and a cast shaft is not a matter of degree. It is a matter of fundamental structural integrity.
Here is why.
When steel is melted and poured into a mold (casting), it solidifies from the outside in. As it cools, the liquid steel contracts. If solidification is not perfectly controlled — and for large, complex shapes it rarely can be — this contraction creates:
Shrinkage porosity: Small voids or cavities inside the casting where liquid steel pulled away from solidified material
Gas porosity: Bubbles trapped in the solidifying metal
Segregation: Uneven distribution of alloying elements as different components solidify at different temperatures
Dendritic grain structure: A coarse, branching crystal structure that is inherently weaker than refined equiaxed grains
These are not manufacturing defects in the sense of poor workmanship — they are the inherent physical consequences of the casting process for large steel sections. They can be minimized with excellent foundry practice, but they cannot be entirely eliminated in heavy cast sections.
In the forging process, a steel ingot or billet is heated to forging temperature (typically 1,100–1,250°C for alloy steels) and then worked under compressive force — either by hammer blows or hydraulic press. This mechanical working does several critical things:
1. Closes internal voids and porosity. The compressive force physically collapses any shrinkage cavities or gas pores in the original ingot. A properly forged shaft has essentially zero internal porosity.
2. Refines the grain structure. The mechanical working breaks up the coarse dendritic grains from solidification into a much finer, more uniform equiaxed grain structure. Finer grains mean higher strength and better toughness.
3. Creates a favorable grain flow (fiber structure). As the steel is worked, the grain structure aligns along the direction of metal flow. In a correctly forged shaft, the grain flow follows the shaft's contour — running along the length of the shaft and wrapping around features like shoulders and keyways. This aligned grain flow dramatically improves fatigue resistance in the directions that matter most.
4. Eliminates segregation. The mechanical working homogenizes the distribution of alloying elements throughout the cross-section.
The result is a component that is fundamentally stronger, tougher, and more fatigue-resistant than a casting of the same alloy and cross-section — not because of better steel, but because of better steel structure.
Property |
Forged Steel Shaft |
Cast Steel Shaft |
Internal porosity |
Essentially zero (voids closed by forging) |
Risk of shrinkage/gas porosity in heavy sections |
Grain structure |
Fine, uniform, aligned with shaft contour |
Coarse dendritic, random orientation |
Tensile strength |
Higher for same alloy grade |
Lower — typically 10–20% less than forged equivalent |
Yield strength |
Higher |
Lower |
Fatigue strength |
Significantly higher — critical for rotating shafts |
Lower — fatigue cracks initiate more easily at grain boundaries and pores |
Impact toughness (Charpy) |
Higher — better resistance to shock loads |
Lower — more brittle under impact |
Ductility (elongation) |
Higher |
Lower |
Dimensional consistency |
Excellent — forging dies control shape |
Good — but shrinkage can cause dimensional variation |
Internal defect risk |
Very low |
Moderate — requires thorough UT inspection |
Cost |
Higher material and processing cost |
Lower initial cost |
Lead time |
Comparable for custom components |
Comparable |
Suitable for crusher shafts? |
Yes — the correct choice |
No — not recommended for crusher rotor shafts |
The verdict is unambiguous: For crusher rotor shafts — components that experience high-cycle fatigue combined with severe impact loading — forged steel is the only appropriate manufacturing process. A cast crusher shaft is not a cost-saving measure; it is a deferred failure.
Once the decision to use forged steel is established, the next critical choice is the alloy grade. Not all forging steels are equal, and the right choice depends on your crusher type, operating conditions, and shaft size.
34CrNiMo6 is the material of choice for the most demanding crusher shaft applications — and the standard material used by Yile Machinery for heavy-duty forged rotor shafts for impact crushers.
This nickel-chromium-molybdenum alloy steel delivers an exceptional combination of properties:
Chemical composition (typical):
Carbon: 0.30–0.38%
Chromium: 1.30–1.70%
Nickel: 1.30–1.70%
Molybdenum: 0.15–0.30%
Mechanical properties after quench & temper (typical):
Property |
Value |
Tensile strength (Rm) |
1,000 – 1,200 MPa |
Yield strength (Rp0.2) |
≥ 800 MPa |
Elongation (A5) |
≥ 11% |
Charpy impact toughness (KV) |
≥ 63 J at room temperature |
Hardness |
300 – 360 HB |
Why 34CrNiMo6 excels for crusher shafts:
The nickel content is the key differentiator. Nickel improves toughness and ductility at all hardness levels — meaning the shaft can absorb impact energy without brittle fracture, even at the hardness levels needed for wear resistance. This combination of high strength and high toughness is exactly what a crusher shaft demands.
The molybdenum improves hardenability (allowing uniform properties through large cross-sections) and reduces temper brittleness — a phenomenon where some steels become brittle after tempering in certain temperature ranges.
Best applications for 34CrNiMo6:
Horizontal shaft impactors (HSI) — highest impact loading of any crusher type
Hammer mills and hammer crushers — repeated high-energy impacts
Large jaw crushers — high eccentric shaft loads
Any application where shaft diameter exceeds 200mm (large sections require high hardenability)
Applications with frequent start-stop cycles or variable loading
42CrMo4 is a chromium-molybdenum steel without the nickel addition of 34CrNiMo6. It is widely used for crusher shafts in moderate-duty applications and is the standard material for Yile Machinery's HSI impactor and hammer mill rotor shafts where application conditions permit.
Chemical composition (typical):
Carbon: 0.38–0.45%
Chromium: 0.90–1.20%
Molybdenum: 0.15–0.30%
(No significant nickel content)
Mechanical properties after quench & temper (typical):
Property |
Value |
Tensile strength (Rm) |
900 – 1,100 MPa |
Yield strength (Rp0.2) |
≥ 650 MPa |
Elongation (A5) |
≥ 12% |
Charpy impact toughness (KV) |
≥ 45 J at room temperature |
Hardness |
260 – 320 HB |
Advantages of 42CrMo4:
Lower cost than 34CrNiMo6 (no nickel premium)
Excellent machinability
Wide availability of certified material
Sufficient toughness for moderate-impact applications
Best applications for 42CrMo4:
Cone crushers — predominantly compressive loading, lower impact than HSI
Smaller jaw crushers (shaft diameter under 200mm)
Secondary and tertiary crushers with lower feed sizes
Applications where budget is a constraint and loading is moderate
Use this framework to select the appropriate material for your crusher shaft:
Crusher Type |
Impact Level |
Shaft Diameter |
Recommended Material |
Horizontal shaft impactor (HSI) |
Very high |
Any |
34CrNiMo6 |
Hammer mill / hammer crusher |
Very high |
Any |
34CrNiMo6 |
Vertical shaft impactor (VSI) |
High |
Any |
34CrNiMo6 |
Large jaw crusher (primary) |
High |
> 200mm |
34CrNiMo6 |
Medium jaw crusher |
Moderate–High |
150–200mm |
34CrNiMo6 or 42CrMo4 |
Small jaw crusher |
Moderate |
< 150mm |
42CrMo4 |
Cone crusher (primary) |
Moderate |
Any |
42CrMo4 |
Cone crusher (secondary/tertiary) |
Low–Moderate |
Any |
42CrMo4 |
Gyratory crusher |
High |
Large |
34CrNiMo6 |
When in doubt, specify 34CrNiMo6. The cost premium over 42CrMo4 is modest compared to the cost of a shaft failure and the resulting production shutdown.
Understanding the complete manufacturing sequence helps you ask the right questions when evaluating suppliers — and identify shortcuts that compromise quality.
The process begins with certified steel ingots or blooms from a qualified steel mill. The material certificate (mill certificate) must confirm:
Chemical composition meeting the specified grade
Heat number for full traceability
Melt practice (electric arc furnace, vacuum degassing for premium grades)
Red flag: A supplier who cannot provide a material mill certificate with heat number traceability is not managing material quality. Do not accept verbal assurances about material grade.

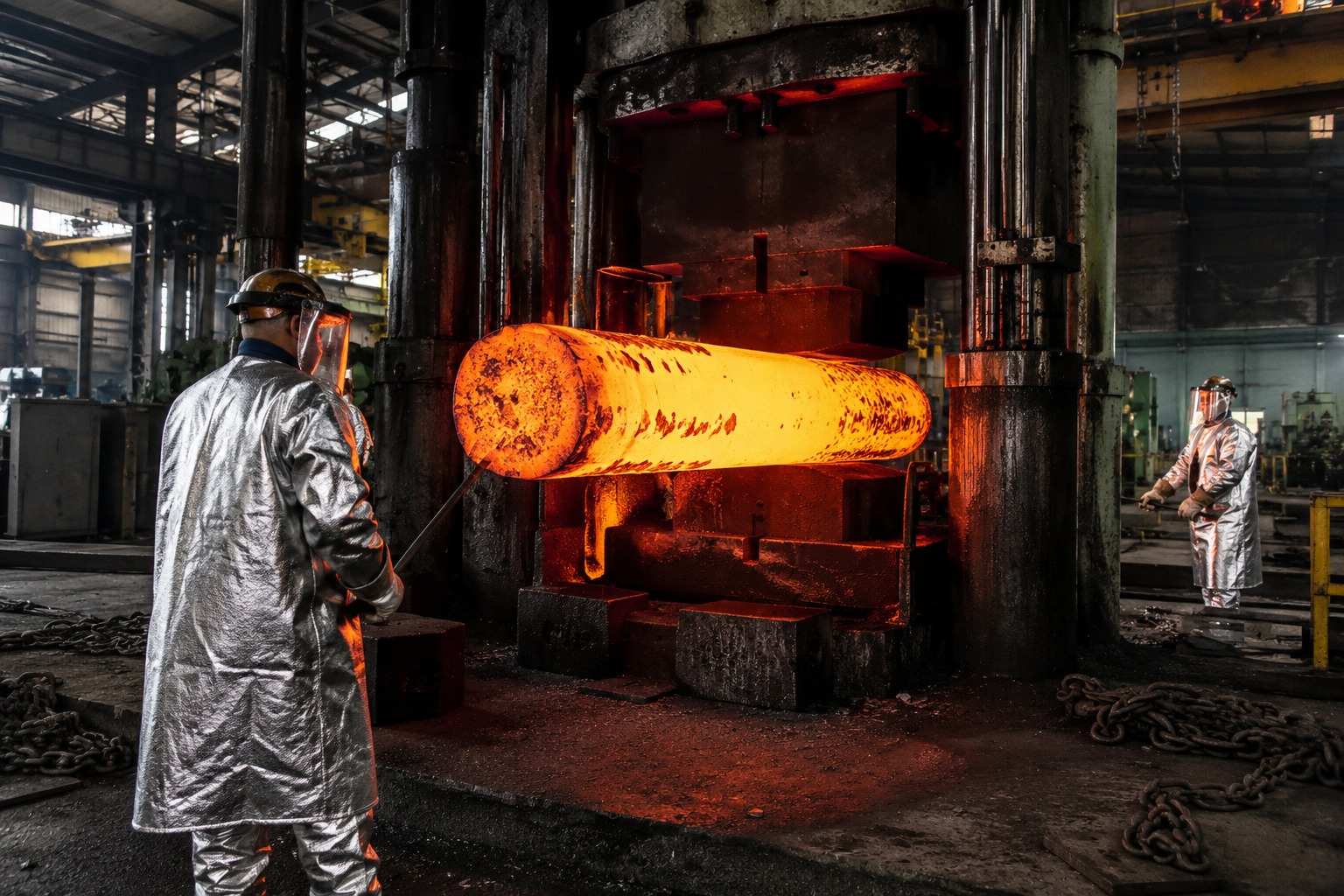

The ingot is heated to forging temperature and worked under a hydraulic press or forging hammer. For crusher shafts, open-die forging is the standard process — the shaft is progressively worked along its length to achieve the desired grain refinement and dimensional envelope.
Critical forging parameters:
Forging ratio: The ratio of original cross-section to final cross-section. A minimum forging ratio of 3:1 is generally required for adequate grain refinement; higher ratios give better properties.
Forging temperature control: Too hot causes grain growth; too cool causes forging cracks. Proper temperature monitoring is essential.
Final forging temperature: The last forging passes should be completed at a temperature that produces fine grain size.
After forging, the shaft is normalized — heated to above the upper critical temperature and air-cooled — to relieve forging stresses and produce a uniform, fine-grained microstructure before heat treatment.
This is the most critical step for achieving the target mechanical properties. The shaft is:
Austenitized: Heated to 840–880°C (for 34CrNiMo6) until the entire cross-section reaches temperature
Quenched: Rapidly cooled in oil or water to transform the austenite to martensite — a hard, strong but brittle phase
Tempered: Reheated to 550–650°C and held for several hours to transform the brittle martensite into tempered martensite — the combination of high strength and good toughness that characterizes a properly heat-treated alloy steel shaft
Why tempering temperature matters:
Higher tempering temperature → lower hardness, higher toughness
Lower tempering temperature → higher hardness, lower toughness
The target tempering temperature must be chosen to achieve the specified hardness range while maintaining adequate toughness for the application
Red flag: Any supplier who cannot provide heat treatment records showing actual furnace temperature-time charts has not properly documented this critical process. Hardness test results alone are insufficient — they confirm the outcome but not the process.
The heat-treated forging is rough-machined to remove scale and bring all surfaces close to final dimensions, leaving grinding allowance on critical surfaces.
All functional features are machined to final dimensions:
Bearing journals: Machined to tight diameter tolerances (typically h6 or k6 fit) for correct bearing installation
Keyways: Milled to precise dimensions for drive key fitment
Threaded ends: Cut to specified thread form and class
Rotor disc seats: Machined for correct interference fit with rotor discs
Tapers and shoulders: Machined to drawing dimensions with correct surface finish
Bearing journals and other critical surfaces are finish-ground to achieve:
Final diameter tolerance (typically IT5–IT6)
Surface finish (Ra 0.4–0.8 μm for bearing seats)
Geometric tolerances (roundness, cylindricity, runout)
Completed rotor assemblies are dynamically balanced to minimize vibration in service. Yile Machinery balances finished rotors to ISO 1940 Grade G6.3 or better — unbalanced rotors cause vibration that dramatically reduces bearing life and fatigues the crusher frame.
Every shaft undergoes a comprehensive inspection program before shipment:
Ultrasonic Testing (UT):
Performed on the finished shaft to detect any internal defects — cracks, inclusions, or residual porosity. For crusher shafts, 100% UT coverage is standard at Yile Machinery. Acceptance criteria per EN 10228-3 or equivalent.
Magnetic Particle Inspection (MPI/MT):
Applied to all machined surfaces to detect surface and near-surface cracks, particularly at stress concentration points: keyway corners, shoulder radii, and bearing seat transitions.
Hardness Testing:
Multiple Brinell hardness readings at specified locations to verify heat treatment uniformity across the shaft cross-section.

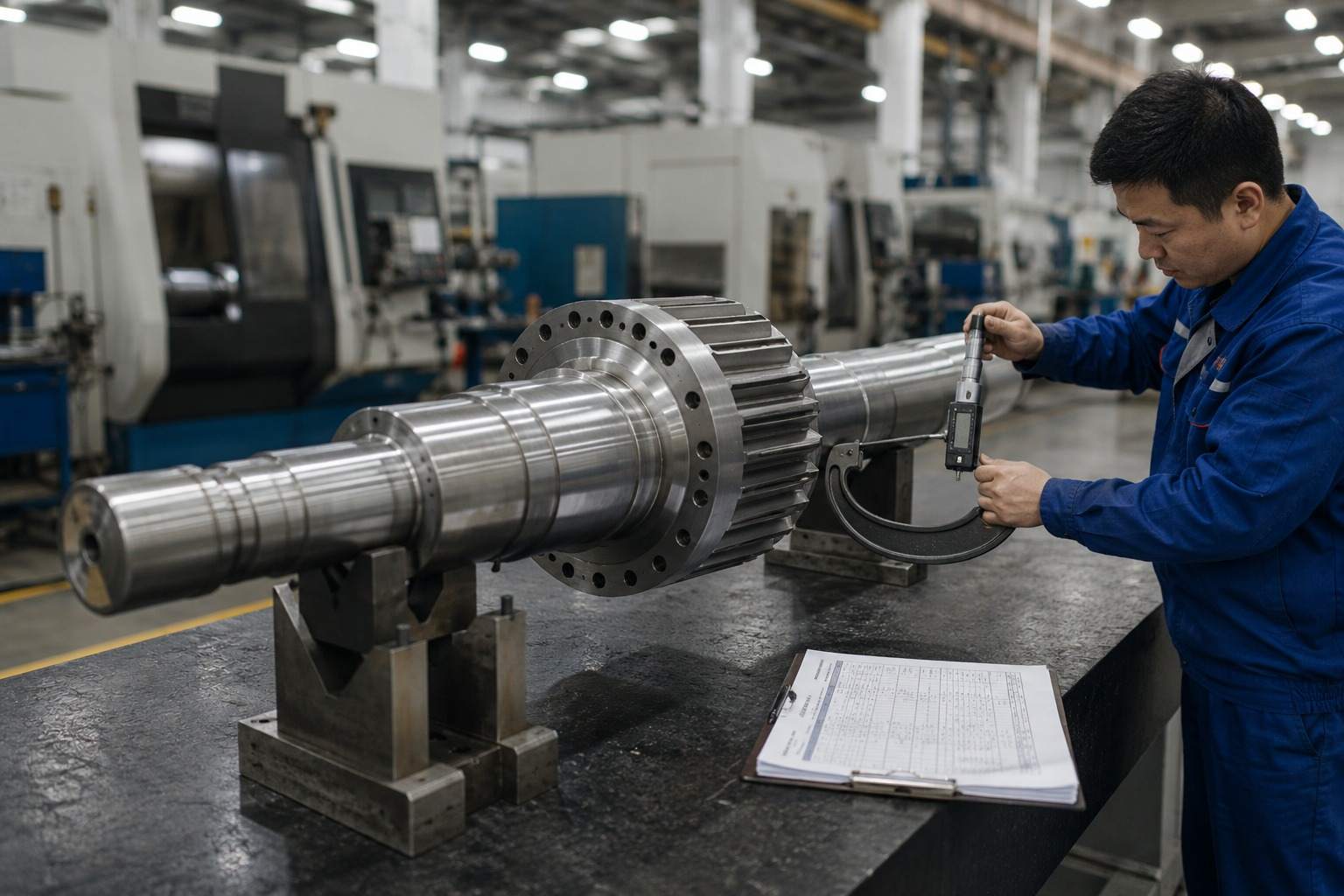

Dimensional Inspection:
Full dimensional check against drawing, with particular attention to bearing journal diameters, runout, keyway dimensions, and overall length.
Documentation package:
Every shaft is shipped with: material mill certificate, forging certificate, heat treatment records (temperature-time charts + hardness results), UT report, MT report, dimensional inspection report, and packing list.
Understanding how crusher shafts fail helps you specify the right replacement and avoid repeating the same failure.
Appearance: Fracture surface shows a smooth "beach mark" pattern radiating from an initiation point, with a rougher final fracture zone.
Cause: Cyclic stress exceeding the material's fatigue limit, initiated at a stress concentration — typically a keyway corner, shoulder radius, surface scratch, or internal defect.
What it tells you:
If initiated at a keyway or shoulder: the shaft design has inadequate fillet radii, or the shaft was notch-sensitive (too hard, insufficient toughness)
If initiated at a surface defect: surface finish was inadequate or the shaft was damaged during installation
If initiated at an internal defect: the shaft was cast (not forged) or the forging quality was poor
Prevention: Use forged 34CrNiMo6, specify generous fillet radii at all stress concentrations, ensure correct surface finish on bearing seats, and handle shafts carefully during installation.
Appearance: 45° helical fracture surface — the classic "candy cane" fracture pattern.
Cause: Torque overload, typically from a crusher jam or sudden blockage.
What it tells you: The shaft material has insufficient torsional strength for the applied torque, or the crusher experienced an overload event beyond design limits.
Prevention: Verify that shaft material and diameter are correctly sized for the crusher's maximum torque output. Consider upgrading from 42CrMo4 to 34CrNiMo6 for higher toughness.
Appearance: Relatively flat fracture surface, often with evidence of plastic deformation before fracture.
Cause: Bending overload from rotor imbalance, bearing failure, or foreign object damage.
What it tells you: The shaft was subjected to bending loads beyond its design capacity — often because a bearing failed first and the shaft then ran without support.
Prevention: Maintain bearings proactively; inspect shaft alignment regularly; ensure rotor is correctly balanced.
Appearance: Multiple crack initiation points, often with corrosion products visible on fracture surface.
Cause: Combined action of cyclic stress and corrosive environment (moisture, process chemicals).
Prevention: Specify appropriate surface protection for the operating environment; ensure shaft is not exposed to corrosive media at stress concentration points.
A crusher shaft passes through multiple critical processes — forging, heat treatment, CNC machining, grinding, NDT — before it is ready for installation. When these processes are performed by different subcontractors, quality control gaps appear at every handoff.
Yile Machinery performs all critical manufacturing steps in-house at our Luoyang facility:
Forging workshop: Open-die forging capability for shafts up to multi-ton weight
Heat treatment furnaces: In-house, calibrated furnaces with full temperature recording
CNC machining: Heavy-duty CNC lathes and machining centers for large-diameter, long shafts
Grinding: Precision cylindrical grinding for bearing journals and critical surfaces
NDT laboratory: In-house UT and MT inspection by certified inspectors
Balancing: Dynamic balancing of completed rotor assemblies
This integrated capability — combined with our broader castings and forgings production line — means that every shaft we ship has been manufactured and inspected under a single quality management system, with no gaps between subcontractors.
We also manufacture the complementary components that work alongside crusher shafts: crusher flywheels for jaw and cone crushers, and high manganese steel jaw plates — allowing you to source a complete crusher spare parts package from a single qualified supplier.
For customers in the mining and cement industry, we also supply the full range of rotary kiln and ball mill rotating components — girth gears, riding rings, and trunnion bearings — making Yile Machinery a single-source partner for your plant's most critical rotating equipment.
Passing UT inspection confirms that no detectable internal defects are present at the time of inspection. However, it does not change the fundamental microstructural differences between cast and forged steel — the coarser grain structure and lower fatigue strength of cast steel remain, regardless of UT results. For crusher rotor shafts, we do not recommend cast steel regardless of inspection results. The fatigue loading is simply too severe for cast steel to be a reliable long-term solution.
Yes, and in most cases we recommend it. 34CrNiMo6 is a direct upgrade in terms of strength and toughness — it will fit the same dimensional envelope as the original shaft. The only consideration is cost: 34CrNiMo6 carries a modest premium over 42CrMo4. Given the cost of a shaft failure, this premium is almost always justified for high-impact applications.
Shafts with fatigue cracks — even small ones detected by MT inspection — should be replaced, not repaired. Welding a fatigue crack introduces heat-affected zone embrittlement and residual stresses that make the repaired area more susceptible to re-cracking. Shafts with surface wear on bearing journals (within limits) can sometimes be restored by chrome plating or thermal spray, but this should be evaluated case by case. Contact our engineering team with inspection results and we can advise on the best course of action.
Provide: engineering drawing (PDF or DWG) or the worn shaft for reverse engineering, crusher make and model, required material grade, quantity, and delivery date. If you have a failure history (how the previous shaft failed), share that too — it helps us recommend the most appropriate material and any design improvements. We respond to all quotation requests within 48 hours.
Yes. We manufacture OEM-equivalent replacement shafts for all major crusher brands including Metso (Outotec), Sandvik, Terex, Kleemann, Hazemag, Williams, and others. We manufacture to the original dimensional specification — or can improve on the original material grade if the customer requests it.
We manufacture forged crusher shafts up to approximately 8 meters in length and 800mm in diameter (finished dimensions). For very large shafts, contact us with your specific requirements and we will confirm feasibility and lead time.
For shafts with drawings available and standard material (34CrNiMo6 or 42CrMo4): 8–12 weeks from drawing approval to shipment. For shafts requiring reverse engineering: add 2–3 weeks for drawing production and approval. For urgent breakdown situations, contact us directly — we will assess expedited production feasibility.
Yes. We provide a 12-month warranty against manufacturing defects (material, forging, heat treatment, or machining defects) from the date of installation, or 18 months from shipment, whichever comes first. All warranty claims are supported by the quality documentation shipped with the component.
Whether you need a direct replacement for a worn or failed shaft, an upgrade to a better material grade, or a custom shaft for a new machine design, Yile Machinery has the forging, heat treatment, and machining capability to deliver a component you can rely on.
To receive a detailed quotation, send us:
Engineering drawing (PDF or DWG) — or the worn shaft / clear photos with key dimensions for reverse engineering
Crusher make, model, and application (primary, secondary, material type)
Required material grade (or describe your application and we will recommend)
Quantity and required delivery date
Any special inspection or certification requirements
