Common Girth Gear Failures: Wear, Pitting, Cracks, Broken Teeth, and Root Causes in Rotary Kilns and Ball Mills

A girth gear failure is never just a damaged part. In a rotary kiln, ball mill, SAG mill, dryer, or other large open-gear drive, the girth gear is a critical torque-transmitting component. When it begins to wear abnormally, pit, crack, or lose teeth, the result is not only a maintenance problem. It is a production risk.

For plant managers, maintenance engineers, and procurement teams, one question comes up again and again:

What exactly caused the girth gear to fail—and how do we prevent the same problem from destroying the next one?

This is the right question.

Many replacement projects focus immediately on price, lead time, and delivery. But if the original failure mode is not clearly identified, a new girth gear can develop the same damage pattern much sooner than expected. In practice, girth gear failure is often not caused by one single factor. It is usually the result of a combination of load, alignment, lubrication, material condition, installation quality, and pinion interaction.

This guide explains the most common girth gear failures seen in rotary kilns, ball mills, SAG mills, and other large industrial drives, how to recognize them, what usually causes them, and what should be checked before repair or replacement.

Yile Machinery manufactures custom girth gears, ring gears, pinions, and gear shafts for cement, mining, metallurgy, and heavy-duty industrial applications. We support OEM production, replacement-part projects, reverse-engineering review, machining, inspection, and export delivery for large open-gear systems.

Quick Answer: What Are the Most Common Girth Gear Failures?

The most common girth gear problems in rotary kilns and ball mills include:

• abnormal flank wear

• pitting and spalling

• scuffing or scoring

• edge loading and uneven contact

• tooth root cracking

• rim or body cracking

• broken or chipped teeth

• cyclic damage caused by excessive runout or backlash variation

These failures are usually linked to one or more of the following root causes:

• poor alignment between girth gear and pinion

• unstable backlash

• insufficient lubrication

• contamination by dust or abrasive particles

• damaged or worn pinion

• incorrect material or heat treatment

• mounting or segment assembly problems

• foundation or shell movement

• overload, shock load, or repeated start-stop duty

In many cases, the visible failure is only the symptom. The real engineering problem is elsewhere in the drive system.

Why Failure Mode Analysis Matters Before Ordering a Replacement

When a girth gear is visibly damaged, the natural response is to ask for a quote for a new one. But ordering a replacement before understanding the failure mode can create three major risks:

1. The new gear may fail in the same way

2. The buyer may specify the wrong material or hardness

3. The pinion or alignment condition may damage the new gear immediately after startup

A proper diagnosis helps answer critical questions such as:

• Is the gear damaged because of wear, or because of misalignment?

• Is the problem localized, or present around the full circumference?

• Is the pinion also damaged?

• Is repair still reasonable, or is replacement the safer option?

• Should the new gear copy the original design, or should the material, hardness, or assembly details be upgraded?

If you are still evaluating whether the gear should be repaired or replaced, see our related guide: Girth Gear Repair or Replacement? How to Make the Right Decision for Rotary Kilns and Ball Mills.

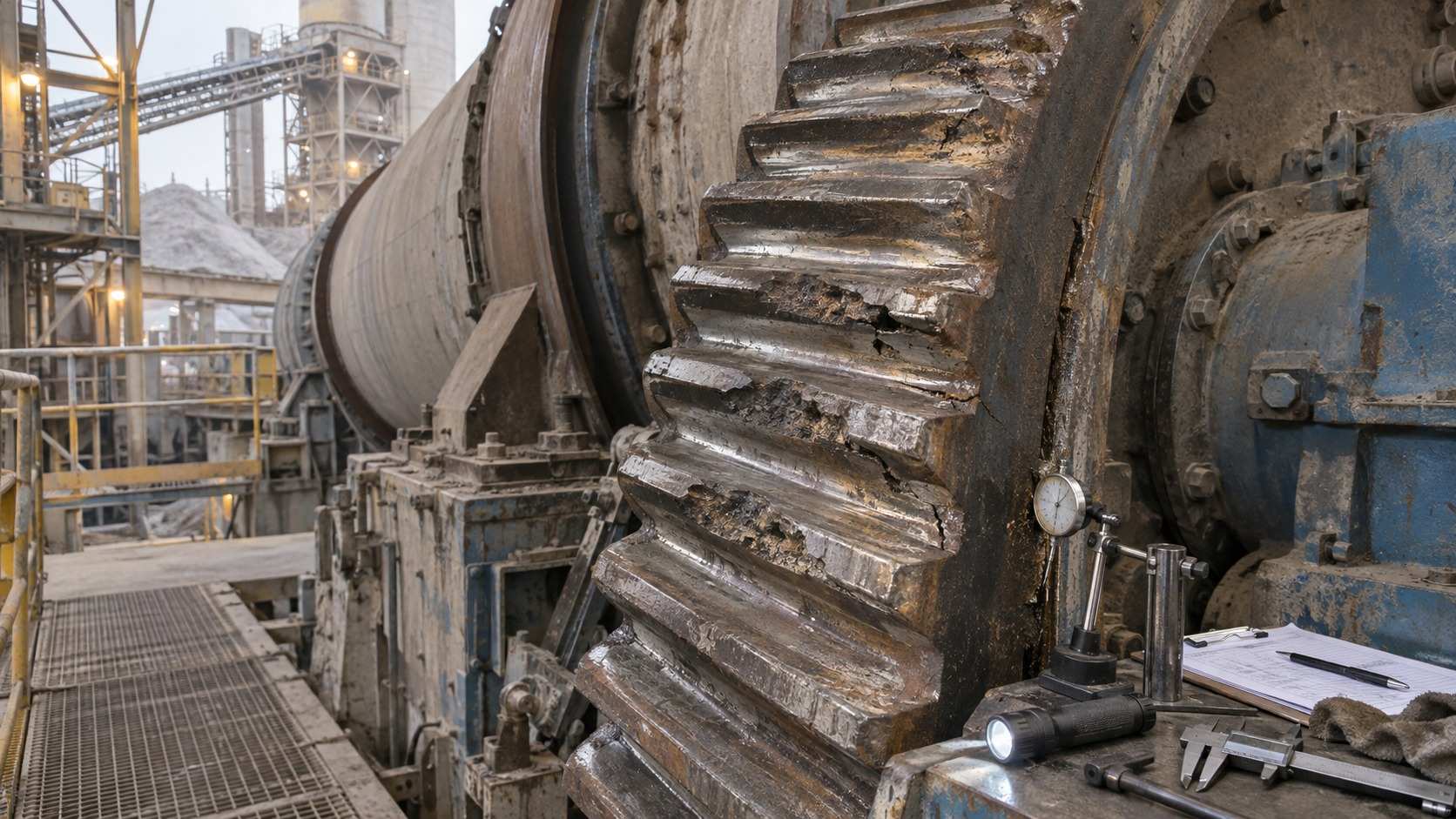

1. Abnormal Flank Wear

Wear is one of the most common and most frequently misunderstood girth gear failure modes.

Not all wear means the gear has failed. Every open gear develops some wear over time. The key issue is whether the wear is normal and progressive, or abnormal and destructive.

Typical Visual Signs

• smooth but excessive loss of tooth thickness

• polished tooth flanks

• hooked tooth profiles

• uneven wear from one end of the tooth face to the other

• wear concentrated on one side of the tooth height

• reduction in backlash due to material loss pattern changes

Common Root Causes

• inadequate lubrication film

• wrong lubricant type or application rate

• abrasive dust contamination

• poor tooth contact pattern

• misalignment causing edge contact

• excessive sliding under unstable mesh conditions

• worn or mismatched pinion tooth profile

What to Check

• tooth contact pattern across face width

• lubricant spray pattern and timing

• lubricant cleanliness and consumption

• dust ingress around the gear guard

• backlash variation around the circumference

• tooth thickness measurements at several positions

• condition of the mating pinion

Why It Matters

Wear changes the effective tooth geometry. If left unchecked, it can lead to:

• unstable contact pattern

• impact loading

• pitting

• cracking at the tooth root

• eventual tooth breakage

General wear is often the first visible sign that the open gear drive is operating outside its ideal condition.

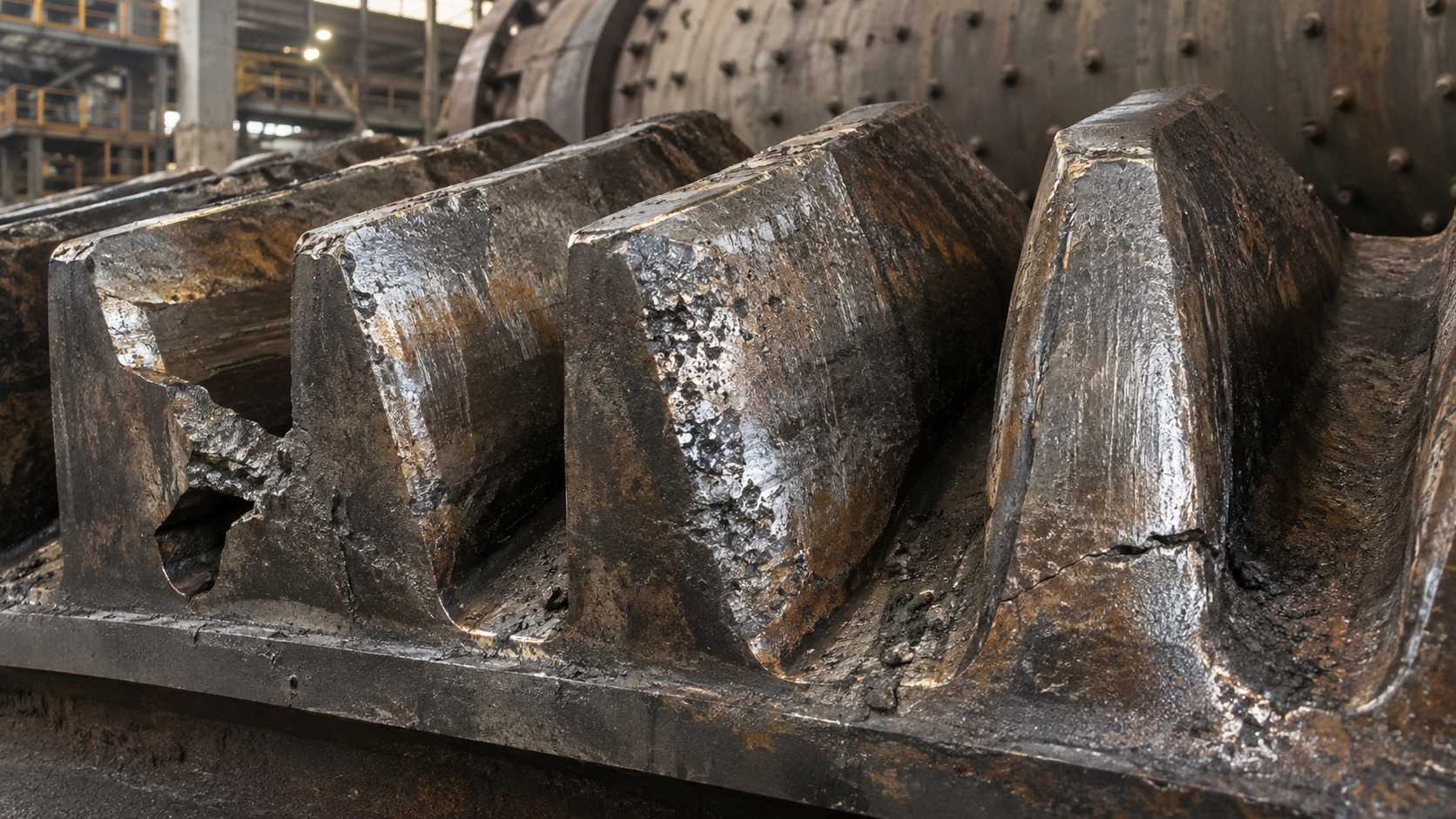

2. Pitting and Spalling

Pitting is a classic surface-fatigue failure. It appears as small cavities or pits on the tooth flank, usually in the contact zone. If it grows, it may develop into larger material loss known as spalling.

Typical Visual Signs

• small pits on loaded tooth flanks

• concentrated pitting near the pitch line

• material flaking from the surface

• rough, damaged contact bands

• repeated pitting in the same circumferential zone

Common Root Causes

• contact stress too high for the actual surface condition

• incorrect contact pattern

• repeated overload

• poor lubrication film under high load

• surface roughness too high

• material or hardness mismatch between girth gear and pinion

• misalignment that concentrates load into a narrow band

What to Check

• whether pitting is isolated or widespread

• whether it affects both girth gear and pinion

• tooth surface hardness and material reports

• backlash and mesh stability

• runout and local load concentration

• lubricant quality and application effectiveness

Why It Matters

Early pitting may be manageable if the contact pattern is corrected and the damage remains stable. But active pitting that continues to grow can rapidly reduce flank integrity and lead to:

• noise increase

• unstable contact

• spalling

• local overheating

• tooth profile deterioration

If material selection or heat treatment is part of the concern, see our detailed guide: Girth Gear Material and Heat Treatment: How to Choose the Right Steel Grade for Rotary Kilns and Ball Mills.

3. Scuffing, Scoring, and Surface Overheating

Scuffing is a severe lubrication-related failure in which the protective film breaks down and direct metal-to-metal contact occurs under load. The result is tearing, smearing, or scoring of the tooth flanks.

Typical Visual Signs

• smeared or torn tooth surface

• dark discolored bands or overheated areas

• rough streaks in sliding direction

• sudden temperature increase at the mesh zone

• loud abnormal noise during operation

Common Root Causes

• insufficient lubricant supply

• incorrect lubricant viscosity

• poor spray-system positioning

• backlash too tight

• thermal expansion not considered

• local overload at the tight point of gear rotation

• severe misalignment causing concentrated sliding contact

What to Check

• lubrication nozzles, timing, and coverage

• tooth temperature pattern after running

• backlash at the tightest point

• radial runout that may create periodic tight mesh

• signs of lubricant starvation on one edge of the face

• pinion shaft bearing condition

Why It Matters

Scuffing is often more sudden than wear or pitting. Once the oil film fails and the tooth surfaces begin tearing, damage can accelerate quickly. In heavy-duty kiln and mill drives, this may force an unscheduled shutdown.

4. Edge Loading and Uneven Contact Pattern

Edge loading is not always listed as a failure mode by itself, but in practice it is one of the most destructive conditions in a girth gear drive. It means the tooth load is not evenly distributed across the full face width.

Typical Visual Signs

• one edge of the tooth face worn much more than the other

• one-sided polishing or pitting

• contact band concentrated at the drive side or coast side edge

• tooth corners breaking down first

• repeated damage in the same axial position

Common Root Causes

• pinion shaft not parallel to the girth gear axis

• girth gear face runout

• shell movement or support condition changes

• misassembled gear segments

• distorted pinion stand or foundation settlement

• thermal growth not considered during alignment

What to Check

• marking-compound contact pattern

• pinion stand alignment in horizontal and vertical planes

• face runout of the girth gear

• segment-joint condition

• support roller or bearing condition

• foundation and anchor-bolt stability

Why It Matters

Edge loading greatly increases local stress. Even if the gear material and hardness are correct, tooth life will be much shorter if only a small part of the face width is carrying the load.

For a full mesh-adjustment procedure, read: Girth Gear and Pinion Alignment: A Complete Guide to Mesh Adjustment for Rotary Kilns and Ball Mills.

5. Tooth Root Cracks

A tooth root crack is one of the most serious girth gear defects because it develops in the highest bending-stress zone of the tooth.

Typical Visual Signs

• fine cracks starting at the root fillet

• cracks appearing on several adjacent teeth

• rusty crack lines visible after shutdown

• crack growth from one side of the tooth toward the other

• crack associated with severe wear or overload area

Common Root Causes

• repeated overload or shock load

• incorrect tooth contact causing stress concentration

• tooth profile loss due to wear

• local hard spots or metallurgical discontinuities

• inadequate root toughness

• previous repair welding not properly stress-relieved

• excessive backlash impact or tight mesh overload

What to Check

• MT or PT for surface crack mapping

• UT where deeper crack extension is suspected

• crack location relative to contact pattern

• whether the crack is isolated or repeated around the gear

• old repair history

• material certificate and heat-treatment record if available

• operating events such as jam, overload, or sudden stop

Why It Matters

Tooth root cracks can propagate under every load cycle. Once crack growth becomes active, the risk of tooth breakage rises sharply. In most heavy-duty open gear drives, root cracking is a strong warning sign that replacement planning should begin immediately.

6. Rim Cracks, Body Cracks, and Segment Joint Cracks

Not all serious cracks appear in the teeth. The gear rim, web, body, and segment-joint region can also crack under structural or assembly-related stress.

Typical Visual Signs

• cracking near bolt holes

• cracks radiating from segment joints

• rim-body transition cracks

• repeated cracking in the same mounting region

• fretting or movement marks at joints

Common Root Causes

• poor fit at the mounting surface

• uneven bolt preload

• segment assembly errors

• excessive shell distortion

• stress concentration near holes or joints

• residual stress from manufacturing or repair

• cyclic loading amplified by runout or support movement

What to Check

• bolt torque history

• joint-face condition

• hole wear or elongation

• match-marking and assembly sequence

• shell flange or support ring condition

• girth gear radial and face runout

• previous crack repair history

Why It Matters

A crack in the rim or body may mean the problem is not only in the tooth mesh, but also in the mounting system or structural support. Replacing the gear without correcting the mounting condition may only repeat the same failure.

7. Broken Teeth and Tooth Chipping

Broken teeth are among the most visible and most urgent girth gear failures.

Tooth failure may be limited to small corner chipping, or it may involve full tooth fracture. The cause must be understood before deciding whether local repair is acceptable or whether the gear should be replaced.

Typical Visual Signs

• tooth corner chipping

• partial tooth loss

• full tooth fracture

• repeated broken teeth within one sector

• broken areas associated with cracking or severe wear

• impact damage on the mating pinion

Common Root Causes

• active tooth root cracking

• severe overload or jam event

• foreign material entering the mesh

• excessive backlash impact

• very poor alignment or edge loading

• weak residual section after long wear

• brittle material condition or poor repair history

What to Check

• whether tooth failure occurred at the root or near the tip

• condition of neighboring teeth

• signs of impact on the pinion

• process upset or mechanical jam history

• whether failure occurred at the tight point of rotation

• root crack growth on adjacent teeth

Why It Matters

A broken tooth often indicates the gear has moved beyond normal wear and into structural failure territory. Even if only one tooth is visibly broken, the remaining teeth may already contain hidden cracks or unstable contact damage.

8. Cyclic Damage from Excessive Runout and Backlash Variation

Some gears do not fail because of one isolated defect. They fail because the mesh condition changes every revolution.

This happens when the girth gear has excessive radial runout, excessive face runout, or unstable mounting. Backlash then becomes tight at one position and loose at another.

Typical Visual Signs

• damage concentrated at one clock position

• repeated hot spot in one sector

• periodic noise or impact once per revolution

• alternating heavy and light contact pattern

• non-uniform wear around the circumference

Common Root Causes

• eccentric assembly

• shell distortion

• segment mismatch

• mounting-surface inaccuracy

• foundation or support movement

• incorrect bolt tightening sequence

• deformation after thermal cycling

What to Check

• radial runout measurement

• face runout measurement

• backlash at multiple positions around the gear

• shell geometry and support condition

• segment joint fit

• thermal expansion behavior between cold and hot condition

Why It Matters

A gear drive with cyclic tight-loose mesh will not run consistently, even if the tooth geometry is correct on paper. It can create a damaging combination of:

• scuffing at the tight point

• impact loading at the loose point

• bearing load variation

• accelerated fatigue of both gear and pinion

9. The Mating Pinion Can Be the Real Problem

In many field cases, the girth gear is not the only damaged component. The pinion may already be:

• worn,

• pitted,

• cracked,

• profile-distorted,

• or poorly aligned.

Installing a new girth gear against a damaged pinion is one of the fastest ways to shorten the life of the replacement gear.

Always inspect the pinion for:

• tooth profile condition

• hardness and material compatibility

• shaft runout

• bearing clearance

• previous repair history

• contact pattern

• local chipping or pitting

Yile Machinery supplies custom girth gears, pinions, gear shafts, and related heavy-duty transmission parts for mills, kilns, and other industrial drive systems, including matched replacement sets for OEM and maintenance projects.

Failure Mode and Root Cause Matrix

Inspection Checklist Before Repair or Replacement

Before deciding what to order, collect as much real condition data as possible.

Visual and Dimensional Checks

• photograph the damage at multiple positions

• mark clock location of every major defect

• measure backlash around the circumference

• check radial and face runout

• inspect contact pattern

• measure tooth thickness at defined points

• inspect segment joints and mounting bolts

NDT and Material Checks

• magnetic particle testing for root cracks

• ultrasonic testing for deeper discontinuities if applicable

• hardness testing

• review material certificate if available

• inspect past weld-repair areas

Operating and System Checks

• pinion condition

• pinion bearing clearance

• foundation condition

• shell movement or runout

• tyre and support roller condition for kilns

• trunnion bearing condition for mills

• lubrication type and delivery performance

• event history: jam, overload, sudden stop, abnormal noise

If you are preparing a purchase inquiry for a replacement gear, our checklist article will help you structure the quotation package: How to Send an RFQ for a Custom Girth Gear: Drawings, Specifications, and Checklist for Buyers.

When Repair May Be Possible—and When Replacement Is Safer

Not every damaged girth gear must be replaced immediately, but not every defect is a good repair candidate either.

Repair May Be Considered When

• damage is localized

• no active root crack is present

• tooth geometry can be restored

• the rim and body are structurally sound

• the root cause is identified and can be corrected

• remaining service life to the next shutdown is acceptable

Replacement Is Usually Safer When

• root cracks are active or widespread

• multiple teeth are broken

• wear is severe around a large arc

• profile loss prevents correct meshing

• body or joint cracks are present

• the pinion is also badly damaged

• the gear has already had repeated repairs

• production risk from sudden failure is high

For a dedicated decision framework, see: Girth Gear Repair or Replacement? How to Make the Right Decision for Rotary Kilns and Ball Mills.

How to Prevent Repeat Failure After Replacement

Ordering a new gear is only part of the solution. To avoid repeating the same failure, buyers and maintenance teams should review the full drive system.

1. Review the Gear Specification

Confirm:

• module and tooth geometry

• face width

• segment arrangement

• mounting interface

• material and hardness

• inspection requirements

If you are still evaluating the right replacement design, see: How to Select a Girth Gear for Ball Mills and Rotary Kilns.

2. Review Material and Heat Treatment

Do not assume the original steel grade is always optimal. If the gear suffered repeated wear or cracking, material review may be justified. See: Girth Gear Material and Heat Treatment: How to Choose the Right Steel Grade for Rotary Kilns and Ball Mills.

3. Inspect the Pinion and Bearings

A worn or damaged pinion can shorten new gear life quickly. Review:

• pinion tooth profile

• shaft condition

• bearing clearance

• hardness compatibility

• lubrication supply

4. Perform Correct Alignment and Mesh Adjustment

Alignment errors are among the most common repeat-failure causes. Always verify:

• backlash at the tight point

• pinion shaft parallelism

• contact pattern

• runout behavior

• post-startup recheck

For detailed procedures, read: Girth Gear and Pinion Alignment: A Complete Guide to Mesh Adjustment for Rotary Kilns and Ball Mills.

5. Verify Installation and Mounting Quality

Segment assembly, bolt preload, match-marking, surface cleanliness, and mounting accuracy all affect final runout and tooth contact.

6. Monitor Early-Life Operation

During the first operating period after replacement:

• monitor noise and vibration

• verify lubricant coverage

• inspect contact pattern

• recheck backlash if required

• confirm there is no localized heating

Frequently Asked Questions

What is the most common girth gear failure?

Abnormal wear is probably the most commonly observed condition, but in many plants the most serious failures are root cracks, pitting progression, scuffing, and broken teeth. The visible symptom depends on load, lubrication, alignment, and operating history.

What usually causes pitting on a girth gear?

Pitting is usually related to surface fatigue under repeated contact stress. Common contributing factors include poor lubrication, incorrect contact pattern, overload, high local stress, rough tooth surfaces, and material or hardness mismatch between gear and pinion.

Can a girth gear with a crack continue running?

That depends on crack type, size, and location. A tooth root crack or structural crack in the rim or body should always be treated as a serious risk condition. Continued operation without engineering review can lead to sudden tooth loss or larger gear failure.

Why does one side of the tooth wear faster than the other?

This usually indicates misalignment, face runout, shell movement, or pinion shaft angular error. One-sided wear is a strong sign that the load is not being distributed across the full face width.

Should the pinion be inspected when replacing a damaged girth gear?

Yes. The girth gear and pinion work as a matched pair. If the pinion is worn, pitted, cracked, or misaligned, it can damage the replacement gear very quickly.

Is a harder girth gear always better?

No. Higher hardness can improve wear resistance in some cases, but the correct choice must also consider toughness, machinability, repairability, distortion control, and compatibility with the pinion. The best solution is balanced performance, not simply maximum hardness.

What information should I send to get a replacement girth gear quote?

Ideally, send the drawing, module, number of teeth, outside diameter, face width, segment count, pinion information, material requirement, inspection requirements, quantity, delivery time, and destination port. If drawings are incomplete, field measurements and photos are also useful.

Can Yile Machinery manufacture replacement girth gears for rotary kilns and ball mills?

Yes. Yile Machinery manufactures custom replacement and OEM girth gears, pinions, gear shafts, and related heavy-duty machinery parts for rotary kilns, ball mills, SAG mills, crushers, and other industrial applications. You can also review our ball mill gear solutions and broader product range.

Request a Technical Review for Your Girth Gear Failure Case

If your girth gear is showing wear, pitting, cracks, broken teeth, or abnormal contact marks, the best next step is not only to ask for price. It is to organize a technical review of the actual failure mode.

To request a quotation or engineering review, please send:

• gear drawing or available field sketch

• equipment type and application

• module, number of teeth, face width, and diameter

• number of segments

• photos of the damaged area

• pinion information if available

• material and hardness data if known

• backlash or runout measurements if available

• required delivery date and destination port

Yile Machinery can support custom manufacturing of girth gears, pinions, shafts, and other heavy-duty parts for cement, mining, metallurgy, lime, and other industrial sectors. You can also explore our blog center for more technical articles on gear drives, kiln parts, mill components, rollers, bearings, and replacement-part sourcing.
