Author: Lily Wang Publish Time: 2026-09-07 Origin: Yile Machinery

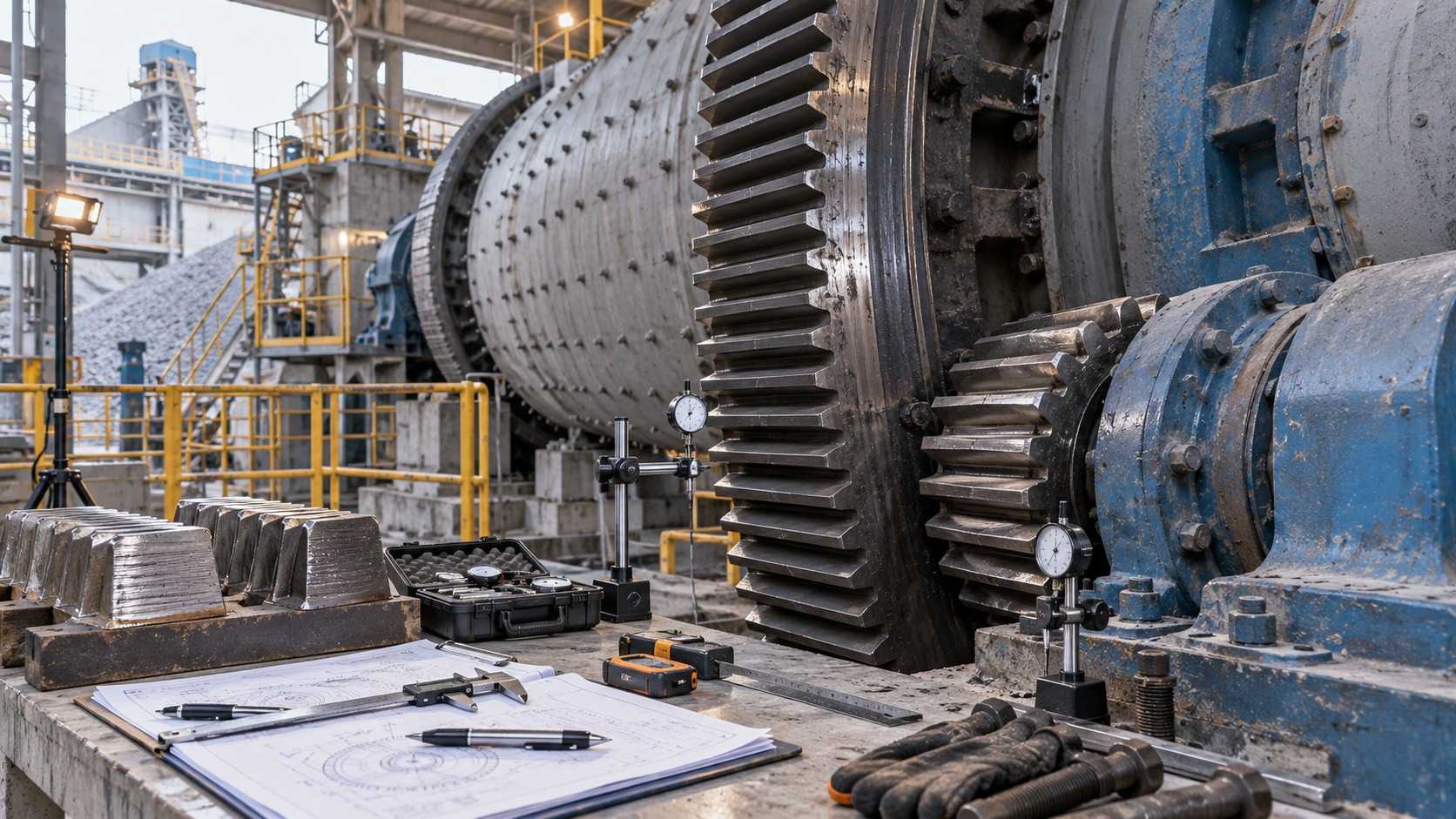

In a ball mill or rotary kiln drive system, the girth gear is not just a large gear ring. It is the main torque-transmitting component between the drive pinion and the rotating shell, and its selection directly affects operating reliability, gear life, shutdown frequency, and spare-parts cost.
Yet many replacement projects start with an incomplete question:
“We need a new girth gear. Can you quote by diameter and number of teeth?”
In practice, that is not enough.
The right girth gear must match the equipment type, torque, shell structure, mounting arrangement, pinion design, alignment condition, lubrication method, and required service life. A gear that looks correct on paper but is poorly matched to the application can lead to abnormal wear, noise, tooth breakage, and expensive downtime.
This guide explains how to select a girth gear for ball mills, SAG mills, rotary kilns, dryers, and other large open-gear drives. It is written for plant engineers, maintenance managers, procurement teams, and OEM buyers who need a reliable replacement or a custom-manufactured gear for a new project.
Yile Machinery manufactures custom girth gears, ring gears, pinions, and gear shafts for heavy-duty industrial equipment. Our manufacturing scope covers large-module gears for cement, mining, metallurgy, and bulk material handling applications, with OEM/ODM support based on customer drawings and technical specifications.
The correct girth gear is determined by more than outside diameter and tooth count. At a minimum, selection should consider:
Equipment type and operating duty
Required transmitted torque and service factor
Gear module, number of teeth, and pitch diameter
Face width and tooth geometry
Material grade and heat treatment
Segmented or one-piece design
Pinion matching and mesh compatibility
Gear accuracy, runout, and mounting tolerances
Lubrication method and site environment
Inspection, testing, documentation, and delivery requirements
If you are replacing an existing girth gear, the goal is usually not to “choose a similar-looking part.” The goal is to supply a gear that is dimensionally interchangeable, mechanically reliable, and suitable for the actual operating conditions.
The same gear size may behave very differently in a ball mill and a rotary kiln because the duty cycle and loading pattern are different.
In grinding mills, the girth gear operates under:
Heavy continuous torque
Variable load depending on ore level and grinding media
Frequent shock or impact loading during startup and process fluctuations
Long operating hours with limited shutdown windows
For mill applications, buyers usually focus on:
Tooth strength under high torque
Stable contact pattern
Pinion compatibility
Good wear resistance
Reliable long-term operation with minimal backlash variation
If your project involves a replacement gear for a grinding mill, you may also want to review available ball mill gear product information and compare the mounting style, segment structure, and material route with your existing design.
In rotary kilns, the girth gear is affected by:
Continuous rotational load
Thermal expansion of the kiln shell
Axial movement and shell runout
Possible alignment variation due to tyres, support rollers, and kiln shell condition
Rotary kiln gears therefore require close attention to:
Mounting flexibility
Gear body stiffness
Runout tolerance
Tooth contact stability under thermal and structural movement
Resistance to edge loading caused by alignment drift
In other words, application conditions define gear requirements. The same material or segmentation approach may not be ideal for both machines.
A girth gear RFQ should always begin with verified technical parameters. If the original drawing is old, missing, or incomplete, field measurement and engineering review may be needed before production.
The most important parameters include:
Module determines tooth size and is one of the most critical inputs for manufacturing. A gear cannot be accurately quoted or machined without the correct module or diametral pitch.
Tooth count determines the transmission ratio when paired with the pinion. If the replacement gear must match an existing pinion and drive speed, the number of teeth usually cannot be changed without redesigning the full drive system.
These define the gear size and influence the torque arm, machining route, transport method, and installation procedure.
Face width affects load-carrying capacity and contact pattern stability. A gear with insufficient face width may suffer accelerated wear; one with an incorrect face width may not align properly with the pinion.
Confirm whether the gear is:
Bolted to a shell flange
Mounted on a fabricated support ring
Installed as a multi-segment split gear
Positioned through a hub or ring support arrangement
Errors in mounting dimensions often cause more installation problems than errors in tooth data.
For large equipment, girth gears are commonly supplied in segmented form rather than as one full ring.
Segmented gears are often preferred for large mills and kilns because they offer:
Easier transport and handling
Lower risk during overseas shipping
More practical installation at site
Better suitability for very large diameters
Easier replacement in shutdown projects
This is why many heavy-duty girth gears and ring gears for kilns and mills are manufactured as split or multi-segment assemblies.
A one-piece gear may still be suitable when:
Diameter is small enough for transport and lifting
Site installation access is good
A segmented joint is not preferred in the original design
The equipment manufacturer specified a one-piece structure
If selecting a segmented gear, confirm:
Number of segments
Joint geometry
Bolt-hole location and tolerance
Match-marking for assembly
Segment interchangeability
Assembly torque procedure
Final runout requirement after installation
A segmented gear is not just a cut-up version of a full ring. Joint design and assembly accuracy are critical to long-term performance.
Most large girth gears for ball mills and rotary kilns are manufactured from cast steel, especially when the gear is large in diameter and segmented in structure. However, the right choice depends on the design concept, size, manufacturing route, and customer specification.
Typical material options may include:
ZG45 / 45# cast steel
ZG42CrMo cast alloy steel
42CrMo forged alloy steel
Other customer-specified carbon or alloy steel grades
Yile Machinery's product range includes gears manufactured from cast steel and forged alloy steel depending on size, module, and application requirements.
Cast steel is widely used for large girth gears because it allows:
Large-diameter manufacturing
Complex geometry
Segment-based production
Good balance between strength, machinability, and cost
Forged material may be used in certain gear components or smaller high-strength gears when:
Higher toughness is required
Geometry is suitable for forging
The part is not an extra-large segmented ring
Customer design calls for forged blanks
Buyers should avoid oversimplified assumptions such as “forged is always better.” In large girth gear applications, the correct question is:
Which material and manufacturing route best match the actual size, load, design, and service conditions?
Gear hardness affects wear resistance, tooth strength, machinability, and pinion matching. But selecting the hardest possible gear is not always the best solution.
Important considerations include:
Surface hardness of the gear teeth
Core strength and toughness
Heat-treatment uniformity
Compatibility with the mating pinion
Distortion control after heat treatment
Depending on the design, a girth gear may be supplied in:
Normalized condition
Quenched and tempered condition
Induction-hardened tooth surface
Other customer-defined heat-treatment condition
For open gears in mills and kilns, the design objective is usually a practical balance between:
Wear resistance
Impact tolerance
Machining accuracy
Repairability
Service life under field conditions
When evaluating a supplier, ask for:
Material grade
Heat-treatment process
Target hardness range
Hardness test locations
Whether the pinion hardness is matched appropriately
A girth gear and pinion must work as a matched pair. Even a well-manufactured new gear can fail early if it is installed with a worn, damaged, or geometrically incompatible pinion.
Before placing an order, confirm:
Pinion number of teeth
Pinion material and hardness
Tooth profile and pressure angle
Face width compatibility
Existing wear pattern
Shaft and bearing condition
Backlash requirement
Contact pattern history
If the existing pinion is near the end of its life, it is often more economical to replace or remanufacture the gear and pinion together during the same shutdown.
For customers planning installation or post-replacement mesh checks, see our related article: Girth Gear and Pinion Alignment: A Complete Guide to Mesh Adjustment for Rotary Kilns and Ball Mills.
Large gears should not be purchased only by nominal size. The required manufacturing and inspection quality must also be defined.
Buyers should specify or confirm:
Gear standard: DIN, AGMA, ISO, or customer standard
Tooth profile accuracy
Tooth lead accuracy
Pitch deviation tolerance
Radial runout
Face runout
Tooth flank finish
NDT requirements
Dimensional inspection scope
If these points are not discussed before production, disputes can arise later because the supplier and buyer may not be working to the same acceptance standard.
Yile Machinery states that its in-house gear cutting, hobbing, machining, and inspection capabilities support production to DIN, AGMA, or ISO requirements, with dimensional inspection and non-destructive testing before delivery.
A surprising number of gear replacement projects are driven by symptoms rather than root causes. Before selecting the next gear, ask why the previous one failed.
Common failure causes include:
Incorrect alignment
Excessive runout
Poor lubrication
Pinion damage
Bearing wear
Foundation settlement
Thermal distortion
Tooth overload
Incorrect backlash
Improper installation of segmented joints
If the old gear failed due to misalignment or mesh instability, simply ordering a new part of the same size may not solve the real problem.
If your current gear is already damaged and you are deciding whether repair is still possible, read our related guide: Girth Gear Repair or Replacement? How to Make the Right Decision for Rotary Kilns and Ball Mills.
A complete RFQ saves time, improves quote accuracy, and reduces engineering risk. Ideally, you should provide the following:
Gear drawing or assembly drawing
Module or diametral pitch
Number of teeth
Outside diameter
Pitch diameter
Face width
Number of segments
Joint details
Mounting-hole pattern
Material grade
Required hardness or heat treatment
Gear accuracy standard
Equipment type and model
Application: ball mill, SAG mill, rotary kiln, dryer, etc.
Quantity required
Required delivery date
Destination port or country
Photos of the existing gear
Photos of damaged areas
Pinion drawing or pinion data
Previous inspection records
Contact-pattern observations
Runout and backlash measurements
Material certificate of the old gear if available
Some replacement projects can still proceed using:
Measured dimensions from the old gear
Damaged segment samples
Site photos
Pinion measurements
Equipment nameplate details
Reverse-engineering review
This is common in old cement plants, legacy mining equipment, and imported machinery where the original supplier is no longer available.
Not every supplier that can “machine a large ring” can manufacture a reliable girth gear for a high-load open drive. Buyers should evaluate actual capability, not just catalog claims.
Ask the supplier:
What is your maximum module range and gear diameter capacity?
Can you manufacture segmented gears for mills and kilns?
What material grades do you commonly use for girth gears?
What heat-treatment process do you recommend for this application?
Can you supply the matching pinion?
Which gear standards can you manufacture to?
What NDT and dimensional inspection reports can you provide?
Can you support reverse engineering if drawings are incomplete?
How do you protect large gears for export shipping?
Can you provide production photos, inspection documents, and technical communication during the order?
A reliable manufacturer should be able to discuss not only gear size, but also mounting, alignment, contact pattern, material behavior, inspection standards, and delivery risk.
You can review Yile Machinery's full product range for related heavy-duty components including gears, pinions, shafts, rollers, tyres, bearings, castings, and other replacement parts for cement, mining, and industrial equipment.
Buyers can reduce costly errors by avoiding these common mistakes:
Diameter alone does not define tooth geometry, mounting, strength, or mating compatibility.
A worn pinion can destroy a new girth gear quickly.
If the old design failed repeatedly, a strict copy may reproduce the same problem.
The cheapest gear is rarely the lowest-cost solution if it creates shutdown risk, alignment difficulty, or short service life.
Without clear acceptance criteria, dimensional and tooth-quality disputes become much more likely.
Segment joints, runout control, and installation sequence are critical to final gear performance.
For most replacement girth gear projects, the most practical process is:
Inspect the old gear and pinion
Identify the real failure mode
Confirm field dimensions and assembly details
Review whether the existing design should be copied or optimized
Define material, hardness, and accuracy requirements
Confirm whether the pinion should also be replaced
Evaluate manufacturing capacity and inspection scope
Approve drawings before production
Plan transport, installation, and alignment in advance
Recheck backlash and contact pattern after installation
This process greatly reduces the risk of ordering a gear that fits the drawing but not the real operating condition.
There is no single factor. In most projects, the key is matching the gear to the actual equipment duty, tooth geometry, mounting design, and pinion condition. A technically correct gear is one that fits the machine, carries the required load, and can operate with stable alignment and lubrication.
Not always, but the pinion must be inspected. If the pinion shows significant wear, pitting, tooth-profile loss, hardness issues, or bearing-related damage, replacing both as a matched set is often the safer and more economical option.
For very large, segmented girth gears used in ball mills and rotary kilns, cast steel is commonly the practical choice. Forged routes may be appropriate for certain smaller or different gear designs. The best choice depends on the application, size, design structure, and engineering requirements.
In many cases, yes. If original drawings are unavailable, reverse engineering may be possible using field measurements, gear samples, photos, old inspection reports, pinion data, and equipment nameplate information. Final production should always be based on verified technical confirmation.
Depending on the agreed scope, typical documents may include a material test certificate, heat-treatment records, hardness test results, UT/MT reports, dimensional inspection reports, gear measurement records, assembly marks for segments, packing list, and shipping documents.
Review real production capability, module and diameter range, machining equipment, inspection process, project references, dimensional-report quality, and whether the supplier can discuss alignment, mounting, and pinion matching in technical detail.
Yes. Yile Machinery manufactures custom girth gears, ring gears, pinions, and related heavy-duty transmission parts for rotary kilns, ball mills, SAG mills, crushers, and other industrial equipment. We support OEM/ODM production based on drawings, samples, and customer specifications.
If you are sourcing a new or replacement girth gear for a ball mill, rotary kiln, SAG mill, or industrial dryer, the best starting point is a technical review instead of a price-only inquiry.
Please send us the following information:
Gear drawing, assembly drawing, or field sketch
Module, number of teeth, and face width
Outside diameter and number of segments
Material and hardness requirements
Pinion information if available
Equipment type and application
Quantity required
Required delivery time
Destination country or port
Photos of the existing gear or damaged teeth
Yile Machinery can provide custom manufacturing support for girth gears, pinions, shafts, and other heavy-duty machinery parts used in cement, mining, and other demanding industrial applications. You can also explore more replacement-part options on our products page or browse the latest technical articles in our blog center.
