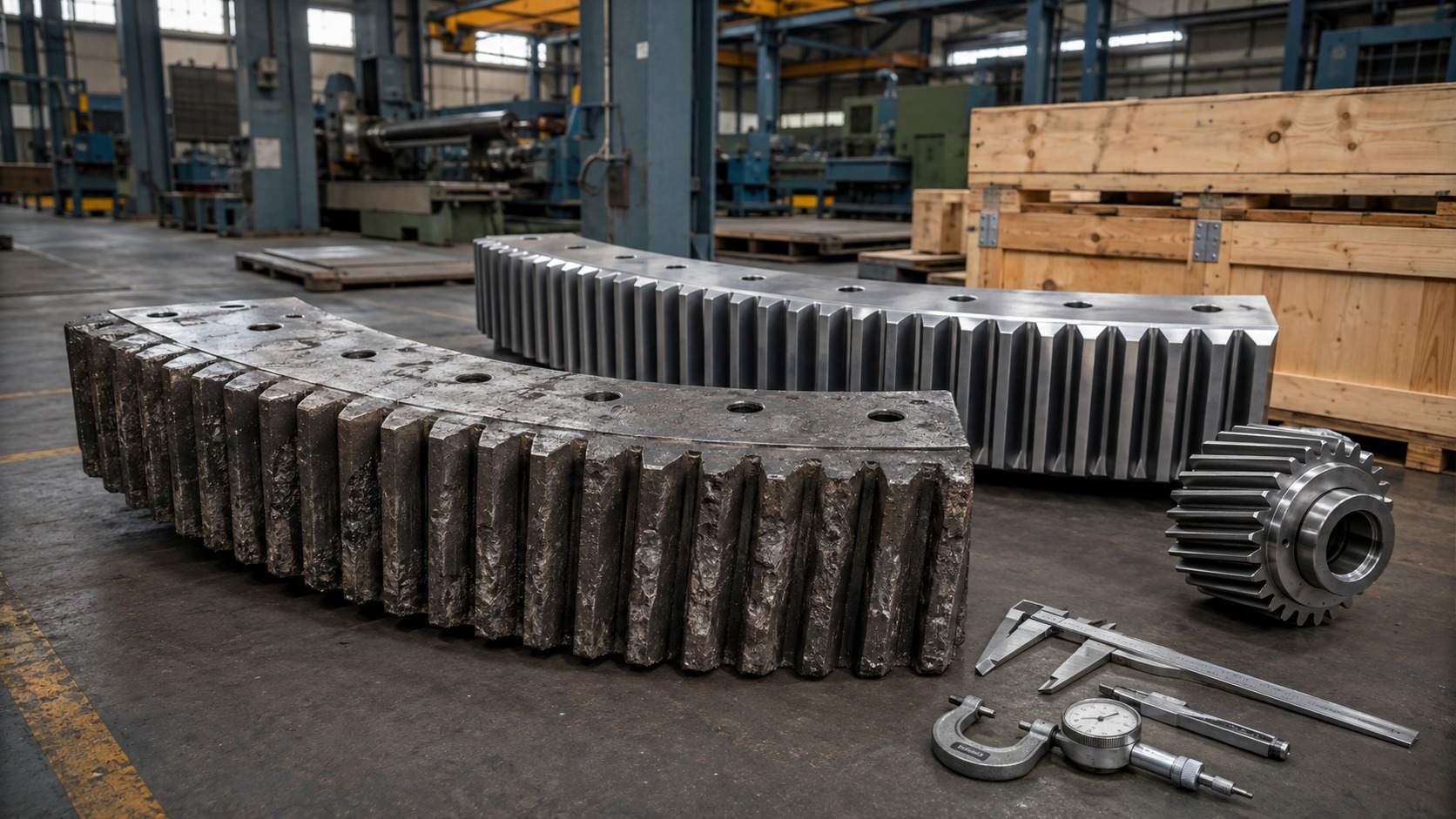

A damaged girth gear is never just a spare-parts issue. In a rotary kiln, ball mill, SAG mill, dryer, or other large rotating machine, the girth gear transfers driving torque to equipment that may be central to plant production. When gear teeth wear excessively, crack, chip, or show abnormal contact patterns, the key question is not simply “Can it be repaired?” It is:
Will repair restore reliable operation at an acceptable risk, or is replacement the safer and more economical decision?
The correct answer depends on the type of damage, the remaining tooth geometry, the root cause of the failure, the condition of the mating pinion, and the consequences of an unexpected shutdown. This guide explains how maintenance teams, engineers, and procurement managers can evaluate a damaged girth gear before deciding between repair and replacement.
Yile Machinery manufactures custom heavy-duty girth gears, ring gears, pinions, and gear shafts for rotary kilns, ball mills, crushers, mine hoists, and other industrial applications. We support OEM projects, replacement parts, and custom manufacturing based on customer drawings, samples, or technical specifications.
A girth gear may be suitable for controlled repair when the damage is localized, the tooth root remains structurally sound, the gear retains acceptable geometry, and the underlying alignment or lubrication problem has been corrected.
Replacement is normally the safer choice when there are:
Cracks at or near the tooth root
Repeated tooth breakage
Severe wear across a large percentage of the tooth flank
Significant deformation, radial runout, or mounting damage
Widespread pitting, spalling, or hardened-layer failure
Damage caused by persistent misalignment that has already changed gear geometry
An old gear with insufficient remaining service life for the next planned shutdown cycle
In heavy-duty kilns and mills, a low-cost repair that fails early can cause a much higher total cost than a planned replacement. The decision should therefore be based on technical evidence—not only on the immediate spare-part price.
A girth gear rarely fails without a reason. Replacing or repairing the damaged gear without identifying the original cause can lead to the same failure occurring again.
Common root causes include:
Incorrect gear and pinion alignment
Excessive axial, radial, or angular misalignment can concentrate load on one side of the tooth face. This often creates uneven wear patterns, edge contact, high local stress, and premature tooth damage.
Insufficient or incorrect lubrication
Open-gear lubrication must provide an adequate protective film under high load, low speed, dust, heat, and vibration. Under-lubrication can cause scuffing, overheating, abrasive wear, and pitting.
Pinion damage or incompatible pinion condition
A worn or damaged pinion can quickly damage a newly repaired or replaced girth gear. In many cases, the pinion and girth gear must be inspected as a matched set.
Rotary kiln or mill mechanical movement
Kiln shell runout, tyre and support roller alignment issues, bearing wear, foundation movement, or mill trunnion problems can alter the gear mesh during operation.
Manufacturing or installation errors
Incorrect backlash, poor segment joint fit-up, improper bolt tightening, inaccurate machining, or inadequate material quality can reduce gear life.
Before making a repair-versus-replacement decision, document the failure mode and inspect the complete drive system. For related rotating-equipment maintenance topics, see our industrial machinery blog, including technical guides covering kiln, mill, conveyor, gearbox, roller, and bearing applications.
Repair is not automatically a poor choice. When performed with an approved process, suitable materials, qualified welding procedures, controlled machining, and final inspection, repair can extend the useful service life of certain gears.
Minor tooth tip chipping or local impact damage may be repairable if:
The damage does not extend into the tooth root.
The crack-free base material is confirmed by inspection.
The tooth profile can be restored without creating a stress concentration.
The mating pinion has not been severely damaged.
The contact pattern and backlash can be reset after repair.
Moderate surface wear may be manageable when the teeth still maintain adequate thickness, proper mesh geometry, and a stable contact pattern. However, simply grinding away damaged areas without verifying the remaining tooth profile can create new load concentration.
Small, isolated pits may be monitored or repaired depending on depth, location, and progression rate. If pitting is widespread, deep, or combined with spalling and tooth profile loss, replacement should be considered.
On a segmented girth gear, some mounting or joint-related issues may be repairable if the gear body remains structurally sound. The repair plan must include inspection of bolt holes, joint faces, fasteners, torque procedures, and gear runout after reassembly.
Some failure modes indicate that the gear has reached the end of its safe working life. Continuing operation or performing a limited repair may create unacceptable risk.
A crack at the tooth root is one of the most serious findings because this area carries high bending stress. Even if a crack appears small, it can propagate under repeated torque loading and result in sudden tooth failure.
Replacement is generally recommended when:
Cracks are found at multiple tooth roots.
The crack extends into the gear rim or web.
Crack propagation cannot be reliably stopped and verified.
Previous welding repairs have already been performed in the same area.
The machine operates under high torque, shock loading, or continuous production conditions.
One broken tooth may result from accidental overload or foreign material. Multiple broken teeth, especially in the same loading zone, often indicate a broader problem involving alignment, overload, material condition, or pinion engagement.
Replacing only individual teeth without correcting the cause may provide a temporary result but does not necessarily restore long-term reliability.
Replacement should be evaluated when gear teeth show:
Heavy wear over a large section of the circumference
Pronounced wear at one edge of the tooth face
Loss of involute tooth profile
Sharp or hooked tooth shapes
Reduced tooth thickness below the equipment owner's acceptable limit
Poor contact pattern that cannot be corrected through alignment
Severe uneven wear is often associated with kiln or mill misalignment. A new girth gear should not be installed until the alignment condition is measured and corrected.
Surface damage becomes critical when it affects a large percentage of loaded tooth flanks, creates unstable contact, or continues to grow despite improved lubrication. Spalling can expose weaker underlying material and accelerate deterioration.

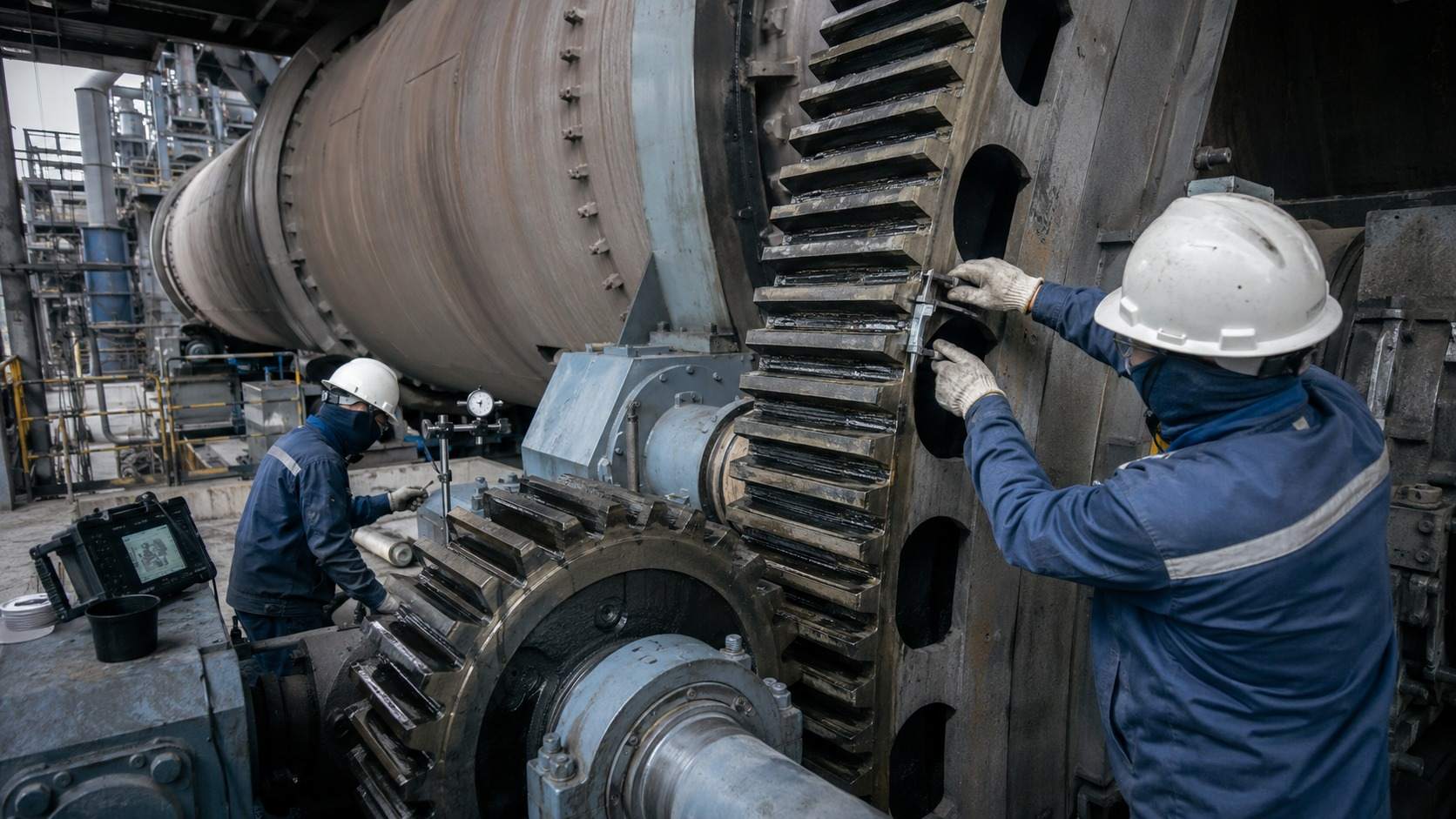

A reliable decision requires more than a visual inspection. Before approving a repair or issuing a replacement purchase order, collect the following information.
Photograph each damaged tooth and identify its clock position.
Measure tooth thickness at defined locations.
Check backlash between the girth gear and pinion.
Inspect tooth contact pattern under operating conditions where possible.
Measure radial and face runout.
Inspect segment joints, mounting faces, bolts, and bolt holes.
Compare actual measurements with original drawings, OEM data, or previous inspection records.
Depending on the gear material and failure mode, suitable testing may include:
Magnetic particle testing (MT) for surface and near-surface cracks in ferromagnetic steel parts
Ultrasonic testing (UT) for internal discontinuities and deeper crack investigation
Dye penetrant testing (PT) for surface-breaking defects where applicable
Hardness testing to confirm material condition and heat-treatment consistency
Yile Machinery uses dimensional inspection and non-destructive testing as part of its quality-control process for heavy-duty gears and industrial components. Our gear manufacturing capabilities include large-module gears for demanding kiln, mill, mining, and heavy-equipment applications. $CITE_1
Collect data from the machine, not only from the gear:
Motor power and torque history
Vibration trend data
Lubricant type, consumption, and application condition
Kiln or mill alignment records
Pinion condition and pinion bearing condition
Shell runout or girth gear eccentricity
Previous gear repairs and failure history
Evaluation Factor |
Repair May Be Appropriate |
Replacement Is Usually Preferred |
Damage location |
Localized tooth tip or limited flank damage |
Tooth root, gear rim, web, or multiple locations |
Crack condition |
No cracks or verified superficial defect |
Root cracks, propagating cracks, repeated cracking |
Wear extent |
Limited and stable |
Severe, widespread, or uneven wear |
Tooth profile |
Can be restored within specification |
Profile loss prevents correct meshing |
Gear runout |
Within acceptable range or correctable |
Excessive runout, deformation, or mounting damage |
Pinion condition |
Serviceable or replaced as needed |
Heavily worn or damaged mating pinion |
Root cause |
Identified and corrected |
Unknown or unresolved |
Planned operating life |
Short-term extension until scheduled shutdown |
Long-term continuous operation required |
Production risk |
Non-critical or controlled downtime available |
High-cost unplanned downtime must be avoided |

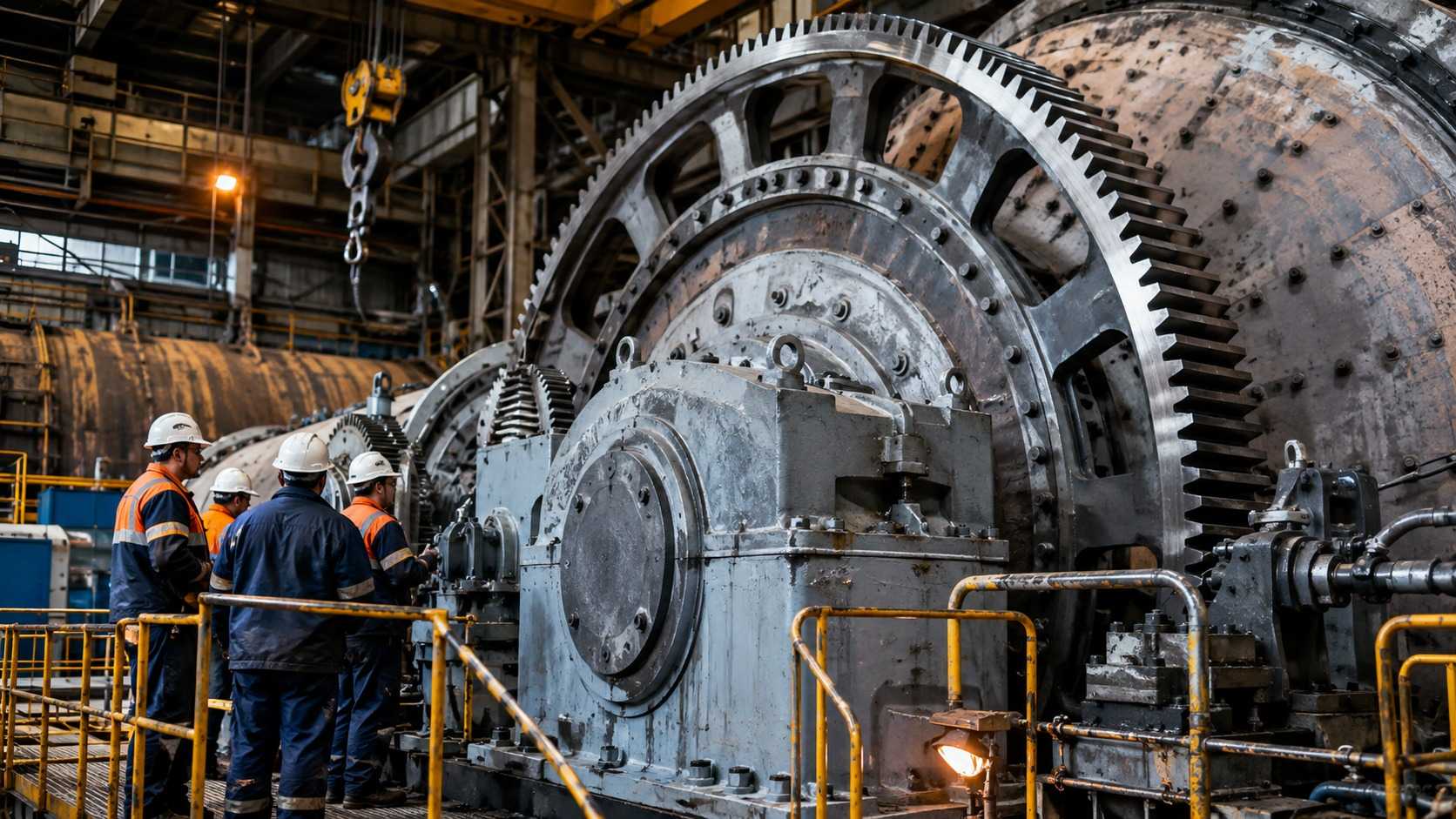

A new girth gear should not be treated as an isolated spare part. Its service life depends on the complete drive system.
Before installation, inspect or verify:
Pinion tooth condition and hardness
Pinion shaft runout
Pinion bearing clearance
Gearbox output alignment
Baseplate and foundation condition
Kiln support roller or mill bearing condition
Gear guard condition and lubrication system
Gear mounting surface cleanliness and accuracy
Segment assembly sequence, fastener grade, and tightening torque
For rotary kilns, tyre, support roller, and alignment conditions can directly affect gear meshing. For ball mills and SAG mills, trunnion bearing condition, shell movement, and drive alignment should also be assessed. Our product range includes custom rotary kiln tyres, trunnion bearings, girth gears, shafts, rollers, and other heavy-duty replacement parts for industrial maintenance and OEM applications.
A complete RFQ reduces engineering risk, avoids quotation delays, and helps ensure the replacement gear fits the existing drive system.
Please provide the following information whenever available:
Original drawing or detailed measured drawing
Gear type: spur gear, helical gear, ring gear, or segmented girth gear
Number of segments
Module or diametral pitch
Number of teeth
Outside diameter and face width
Bore, mounting-hole pattern, and joint details
Material grade and required mechanical properties
Heat-treatment and hardness requirements
Gear accuracy standard, such as DIN, AGMA, or ISO
Required inspection and NDT standards
Equipment type, model, and operating application
Photos of the existing gear and damaged areas
Pinion data, including tooth count and material where available
Replacement manufacturing may still be possible through reverse engineering. Useful information includes:
A sample segment or damaged gear section
Accurate field measurements
Equipment nameplate information
Installation photos
Pinion dimensions
Historical maintenance reports
Material test data, if available
For ball mill applications, you may also refer to our ball mill gear product information and submit your available drawings or specifications for a technical review.
Procurement teams should evaluate more than price. A large girth gear is a critical component with potentially high shutdown costs, complex transportation requirements, and demanding installation conditions.
When selecting a supplier, ask the following questions:
Can the supplier manufacture the required module, diameter, and segment configuration?
What material will be used, and can the supplier provide a material test certificate?
What heat-treatment process and hardness range will be applied?
Which machining equipment will be used for tooth cutting and finishing?
Will UT, MT, hardness testing, and dimensional inspection be performed?
Can the supplier provide inspection reports before shipment?
How will the gear be protected during international transport?
Can the supplier support replacement production based on drawings, samples, or reverse-engineering data?
What documents will be supplied with the shipment?
Can the supplier provide technical communication during installation and commissioning?
Yile Machinery manufactures heavy-duty custom gears and pinions with gear cutting, hobbing, machining, dimensional inspection, and non-destructive testing support. We manufacture single pieces and small batches for replacement projects, equipment upgrades, and OEM machinery programs.
It depends on the crack location, depth, gear material, service conditions, and repair procedure. Small, localized defects may sometimes be repaired using an engineered welding and machining process. However, tooth root cracks, recurring cracks, and cracks extending into the rim or web generally require a more conservative evaluation and often lead to replacement.
Not always, but the pinion must be carefully inspected. A worn pinion can damage a new girth gear quickly. If the pinion tooth profile, hardness, contact pattern, or shaft condition is outside acceptable limits, replacing or remanufacturing it as part of the drive-system repair may be the better decision.
The most common causes are misalignment, incorrect backlash, radial or axial runout, poor lubrication, pinion bearing wear, kiln shell movement, mill movement, and installation errors. Uneven wear should always trigger an investigation of the complete drive train.
Lead time depends on the gear diameter, module, material, number of segments, casting or forging route, heat treatment, machining requirements, inspection scope, and shipping destination. Providing complete technical information at the RFQ stage helps shorten the engineering-review and production-planning process.
Depending on the agreed specification, documents may include a material test certificate, heat-treatment records, hardness-test results, UT/MT reports, dimensional inspection reports, gear measurement records, packing list, and shipping documentation.
Yes. For projects without complete original drawings, Yile Machinery can review samples, photographs, field measurements, equipment details, and available technical data to assess a reverse-engineering and replacement-manufacturing solution. Final production should proceed after technical requirements and critical dimensions are confirmed by both parties.
Whether you need to evaluate a damaged gear, plan a shutdown spare, replace a worn ring gear, or source a custom gear-and-pinion set, the first step is a complete technical review.
Please send us:
Gear drawings, sketches, or available specifications
Equipment model and application details
Photos of wear, cracks, or damaged teeth
Material and hardness requirements
Quantity and required delivery date
Destination country or port
Yile Machinery can provide custom manufacturing support for heavy-duty gears, pinions, shafts, castings, forgings, and other industrial machinery parts. Contact our engineering team to discuss your rotary kiln, ball mill, mining, or heavy-equipment replacement-part requirements.
