Product Description
A worm drive is a compact and efficient gear system composed of a worm (the screw) and a worm gear (the wheel). It is renowned for its ability to achieve high gear reduction ratios and transmit motion at a 90-degree angle.
Yile Machinery specializes in manufacturing custom worm gear sets to your exact specifications. We produce both the hardened steel worm shaft and the corresponding bronze worm wheel, ensuring a perfectly matched set for smooth, reliable, and long-lasting performance.
A successful worm drive depends on the precise pairing of two distinct components, each made from a material chosen for its specific role.
The Worm Gear (or Worm Wheel):
The worm gear is typically manufactured from a bronze alloy (such as Aluminum Bronze or Tin Bronze). This material is chosen for its excellent properties when running against a steel worm: low friction, high wear resistance, and the ability to "wear in" rather than galling. We use precision CNC gear hobbing to create the exact tooth profile required to match the worm.

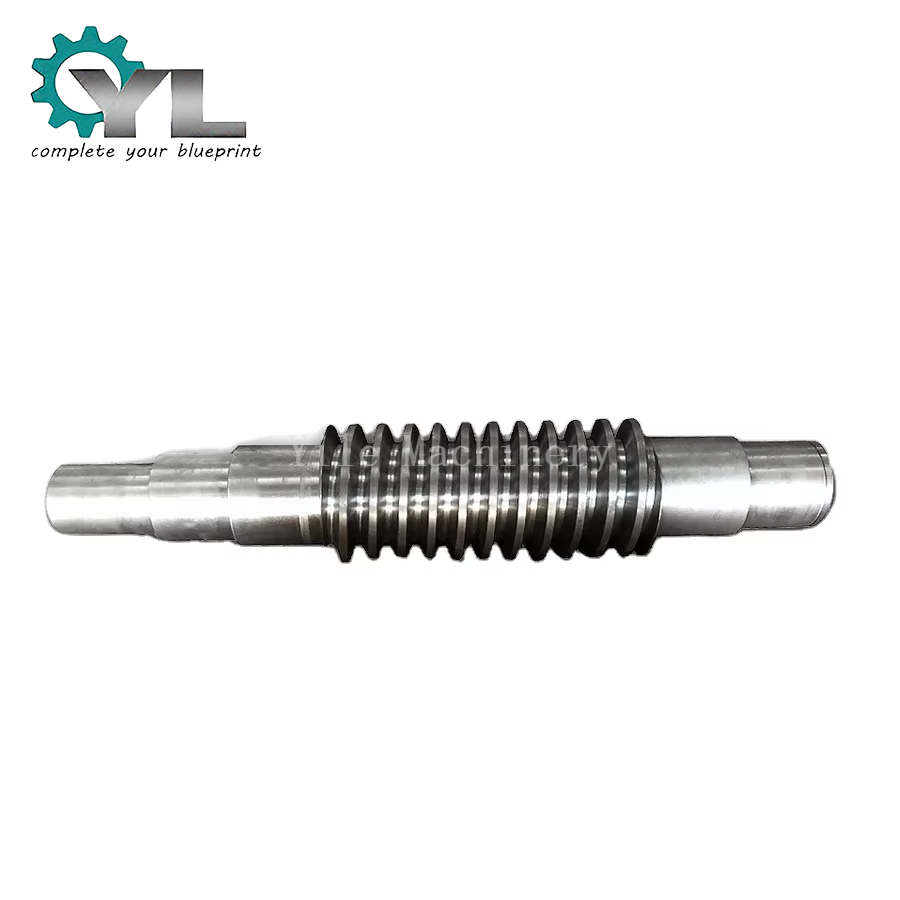

The Worm Shaft:
The worm shaft is the input component and must withstand high rotational and contact stresses. We manufacture our worms from high-strength alloy steels (e.g., 42CrMo4 / AISI 4140) . The shaft is machined and then the worm threads are precision ground. To ensure maximum durability, the worm is typically hardened and tempered for superior surface hardness and a tough core.
Worm drives are the preferred solution for many engineering challenges due to their unique benefits:
High Gear Reduction: Easily achieve ratios from 10:1 to over 100:1 in a single stage.
Self-Locking Capability: In many high-ratio designs, the worm wheel cannot drive the worm, providing a natural and reliable braking or holding feature.
Compact & Space-Saving Design: Delivers high torque and reduction in a much smaller envelope than a multi-stage spur gear system.
Smooth and Quiet Operation: The sliding action between the worm and wheel results in very low noise and vibration.
Material Expertise: We start with certified bronze alloys and high-tensile alloy steels to ensure the foundation of your gear set is sound.
Precision Machining: We utilize multi-axis CNC machining, CNC gear hobbing, and precision thread grinding to produce components with the highest level of accuracy.
Heat Treatment: Steel worm shafts undergo controlled heat treatment processes to achieve the ideal surface hardness and core toughness for maximum wear resistance and fatigue life.
Quality Assurance: Every component is subject to strict quality control, including gear profile inspection, surface finish analysis, and full dimensional verification to ensure a perfect fit.
We manufacture worm gear sets for a vast range of OEM and replacement applications:
Conveyor Systems
Lifts, Hoists, and Winches
Machine Tools (e.g., rotary tables)
Presses and Rolling Mills
Automated Gates and Actuators
Get a Quote for Your Custom Worm Gear Set
Send us your technical drawings, required gear ratio, materials, and quantity. Our engineering team will work with you to manufacture a high-performance worm drive solution for your project.
