Where are sprockets applied in mining equipment?

In mining machinery and equipment, large sprockets, as key transmission components, are widely used in high-intensity and heavy-load working conditions. Their design and application need to meet requirements such as wear resistance, impact resistance and long service life. The following are the main application scenarios and technical features of large sprockets in mining machinery and equipment:

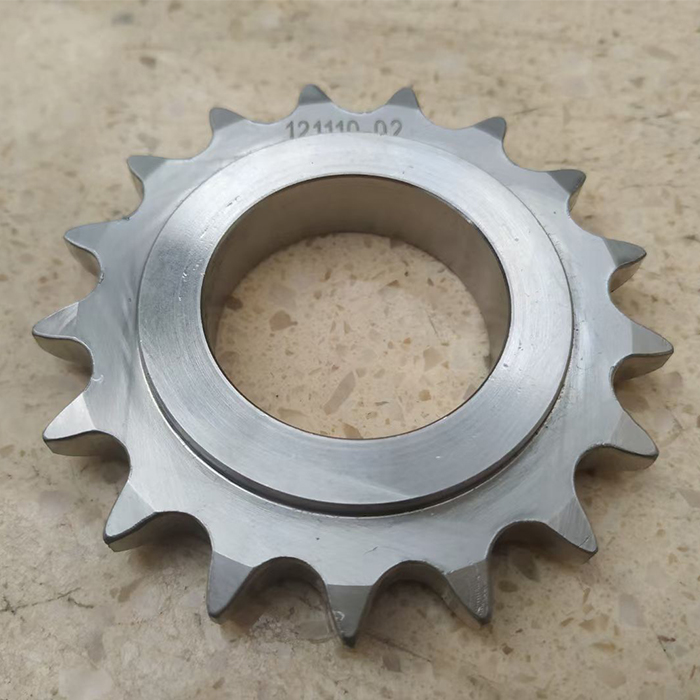

                 Wheel Gear Sprockets                                          Conveyor Gear                                         Wheel Chain Sprocket

1.Main application scenarios

Mine scraper conveyor

• Function: Drive the scraper chain to pull materials (such as coal and ore).

• Function: The sprocket meshes with the round link chain, subjected to tremendous tensile force and wear, and must possess high tooth surface hardness and fatigue resistance.

• Typical equipment: Working face scraper conveyor, transfer machine.

Bucket elevator

• Function: Lift ores or loose materials.

• Function: The sprocket drives the chain to transport the hopper vertically, and it needs to resist the impact of materials and the dynamic load of the chain.

• Features: Double-row or multi-row sprocket designs are often adopted to disperse stress.

Belt conveyor drive system

• Function: Some heavy-duty belt conveyors adopt sprocket-chain drive instead of traditional rollers.

• Advantages: Suitable for long-distance, large-inclination Angle or complex terrain transportation.

Crusher drive device

• Application: Power transmission for equipment such as jaw crushers and impact crushers.

• The sprocket needs to withstand vibration and impact loads, and the material should have high toughness

Mine drilling equipment

• Function: Drive drill pipes or chains for rock layer drilling.

• Challenge: Rust prevention is required under harsh working conditions (such as surface coating or the use of stainless steel materials).

2.Technical characteristics and requirements

Material selection:

• Commonly used high-strength alloy steels such as 42CrMo and 40Cr undergo quenching and tempering heat treatment.

• The tooth surface is quenched (HRC50-55) or surfacing with a wear-resistant layer (such as tungsten carbide).

Structural design

• Large module gears (usually ≥20mm) and deep grooves are used to enhance meshing capacity.

• The split design (hub + rim) makes it convenient to replace worn parts.

Process requirements:

• Precision machining ensures the tooth profile accuracy (such as in ISO 606 standard).

• Dynamic balance testing is conducted to avoid vibration during high-speed operation.

Lubrication and Maintenance

• Equipped with an automatic lubrication system to reduce wear.

• Regularly inspect the wear and cracks on the tooth surface.

3.Common failure forms and solutions

• Tooth surface wear: Optimize the heat treatment process or use ultra-high molecular weight polyethylene liners.

• Broken teeth: Increase the thickness of the wheel body or use forged blanks instead.

• Chain tooth skipping: Adjust the tooth pitch tolerance or install a chain tensioning device.

Therefore, large sprockets in mining machinery are the core components that ensure the continuous operation of the equipment, and their reliability directly affects production efficiency and maintenance costs. In the future, with the advancement of materials science and manufacturing technology, the lifespan and performance of sprockets will be further enhanced, adapting to more demanding mining operation environments.
