Girth Gear Material and Heat Treatment: How to Choose the Right Steel Grade for Rotary Kilns and Ball Mills

A girth gear is one of the most expensive and most critical rotating components in a ball mill, SAG mill, rotary kiln, dryer, or other large open-gear drive. Yet many replacement inquiries still begin with only three data points: diameter, number of teeth, and quantity.

That is not enough.

The long-term performance of a girth gear depends heavily on two linked decisions:

1. Which material should be used

2. How that material should be heat treated

A gear that is too soft may wear too quickly. A gear that is too hard may become difficult to machine, more sensitive to cracking, less repairable, or poorly matched to the pinion. A material route that works well for one mill may not be the best choice for a rotary kiln operating with shell movement, thermal expansion, and alignment variation.

The best girth gear material is not the hardest or the most expensive one. It is the steel grade and heat-treatment route that best matches the load, application, size, lubrication condition, and expected service life of the actual machine.

This guide explains how buyers, engineers, and maintenance teams can evaluate girth gear material and heat-treatment options more intelligently when sourcing replacement parts or new OEM components.

Yile Machinery manufactures custom girth gears, ring gears, pinions, and gear shafts for rotary kilns, ball mills, crushers, and other heavy-duty industrial applications. Based on your drawings and technical requirements, we can support cast steel and forged alloy steel gear production, machining, inspection, and export delivery for cement, mining, and metallurgy projects.

Quick Answer: What Material Is Commonly Used for Large Girth Gears?

For many large ball mill and rotary kiln girth gears, cast steel is the most practical and widely used choice, especially for large-diameter segmented gears. Common options may include carbon cast steel or alloy cast steel such as ZG45 or ZG42CrMo, depending on application requirements.

However, the correct choice depends on:

• transmitted torque,

• gear size and segmentation,

• impact loading,

• lubrication condition,

• alignment stability,

• operating temperature,

• required wear resistance,

• and whether the new gear must run with an existing pinion.

Heat treatment is just as important as material grade. In many projects, the real engineering decision is not simply “carbon steel or alloy steel?” but rather:

What combination of material, hardness, core toughness, and tooth-surface condition will deliver reliable service in this specific drive system?

Why Material and Heat Treatment Matter So Much

A girth gear works under a difficult combination of conditions:

• high torque,

• repeated cyclic bending stress,

• sliding and rolling contact on the tooth flanks,

• outdoor dust and contamination,

• large part size,

• possible alignment variation,

• and long service intervals.

Material and heat treatment affect all of the following:

• tooth wear resistance

• resistance to pitting and scuffing

• tooth root strength

• crack sensitivity

• machinability

• distortion during manufacturing

• repairability in service

• compatibility with the pinion

• overall cost and lead time

In other words, material and heat treatment are not only metallurgical choices. They are operational risk decisions.

If you are still at the product selection stage, see our related guide: How to Select a Girth Gear for Ball Mills and Rotary Kilns.

1. Start with the Application: Ball Mill vs Rotary Kiln

The right steel grade for a girth gear depends first on the machine type.

Ball Mill and SAG Mill Conditions

In mills, the girth gear usually sees:

• heavy continuous transmitted torque,

• variable impact loads from the charge,

• frequent start-stop or load fluctuation,

• long operating hours,

• and high concern for tooth wear and pitting.

This often means the selected material must provide a good balance of:

• tooth flank durability,

• tooth root strength,

• stable contact behavior,

• and predictable long-term wear.

For mill-related product references, buyers can also review our ball mill gear solutions.

Rotary Kiln Conditions

Rotary kilns usually impose a different set of risks:

• shell expansion and contraction,

• axial movement,

• possible runout variation,

• support roller and tyre effects,

• long-term misalignment risk,

• and outdoor dust or high-temperature surroundings.

In kiln service, the gear material must not only resist wear. It must also tolerate:

• structural movement,

• fluctuating mesh conditions,

• and the possibility of edge loading if alignment drifts.

This is why a material choice that seems “stronger” on paper is not automatically better in real kiln service.

2. The Most Common Girth Gear Material Options

Large girth gears are commonly manufactured from either cast steel or, in certain applications and geometries, forged alloy steel. Below are the most practical categories buyers will encounter.

The correct choice depends on whether the gear is:

• a straight replacement of an OEM design,

• a redesign for longer life,

• or part of a new equipment project.

Yile Machinery's gears and pinions product range includes heavy-duty custom gears produced in cast steel and forged alloy steel according to customer requirements, application type, and manufacturing feasibility.

3. Why Cast Steel Is So Common for Large Girth Gears

Many buyers ask whether forged steel is always better. For very large girth gears, especially segmented designs used on kilns and mills, the answer is usually no.

Cast steel remains common because it offers several practical advantages:

Large Diameter Feasibility

Very large gears with multi-meter diameters are often much more practical to manufacture as cast segments than as forged rings.

Segment-Based Manufacturing

Split gears for large mills and kilns are commonly cast in segments, then machined and tooth-cut. This route is well suited to transport, export packaging, and on-site installation.

Good Balance of Cost and Performance

For many heavy industrial applications, properly specified cast steel provides a reliable balance of:

• strength,

• toughness,

• machinability,

• dimensional stability,

• and commercial practicality.

Better Fit for Existing OEM Designs

Many existing machines were originally designed around cast steel girth gears. A replacement project may therefore need to match not only dimensions but also the original material concept.

This does not mean every cast steel grade performs the same. Material chemistry, casting quality, heat treatment, machining accuracy, and inspection discipline all matter.

4. When Alloy Steel May Be Preferred

Alloy steel is often considered when the drive system demands more than a basic carbon cast steel can comfortably provide.

Situations that may justify an alloy steel route include:

• higher transmitted torque,

• more severe impact loading,

• greater demand for tooth root strength,

• a history of cracking or short service life,

• customer specification requiring improved mechanical properties,

• or a new design where higher performance margin is needed.

Alloy cast steels such as ZG42CrMo are often selected when buyers want a better balance of:

• strength,

• toughness,

• fatigue resistance,

• and wear performance.

But upgrading to a higher-alloy grade should never be treated as an automatic fix. If the original failure was caused by:

• poor alignment,

• unstable lubrication,

• incorrect backlash,

• excessive runout,

• or a damaged pinion,

then a stronger material alone will not solve the root problem.

If your existing gear is already worn or damaged, and you are deciding whether replacement is really necessary, see: Girth Gear Repair or Replacement? How to Make the Right Decision for Rotary Kilns and Ball Mills.

5. Heat Treatment Options for Girth Gears

Material grade alone does not define gear performance. Two gears made from similar steel may perform very differently if they receive different heat-treatment routes.

Common heat-treatment approaches for girth gears include:

Normalizing

Normalizing helps refine the steel structure and improve uniformity after casting or forging. It is often used where a balanced, machinable, and stable structure is required.

Typical benefits:

• improved structure uniformity,

• reduced internal stress,

• practical machinability,

• and stable general-purpose performance.

Quenching and Tempering

Quenching and tempering is used where higher strength and toughness are required than a normalized condition alone can provide.

Typical benefits:

• improved mechanical strength,

• better toughness balance,

• stronger tooth root support,

• and improved performance in more demanding service.

However, heat-treatment control becomes more important with large sections and large diameters.

Surface Hardening

Depending on design and manufacturing route, local or overall tooth-surface hardening may sometimes be considered to improve flank wear resistance.

Potential benefits:

• improved surface durability,

• higher resistance to pitting or scuffing,

• and longer life under certain contact conditions.

But it also introduces engineering trade-offs:

• higher distortion risk,

• more demanding machining control,

• reduced repairability,

• and the need to match the pinion hardness carefully.

Stress Relief

Stress-relief treatment may be used after rough machining, welding repair, or certain manufacturing stages to reduce residual stress before finish machining.

For large gears, residual stress control is important because distortion during manufacturing can directly affect tooth accuracy, runout, and final assembly quality.

6. Why “Higher Hardness” Is Not Always Better

One of the most common buyer misunderstandings is the idea that a harder gear is automatically a better gear.

That is not how large open gears should be evaluated.

A very hard tooth surface may improve wear resistance under some conditions, but it can also create other problems:

• increased manufacturing complexity,

• greater distortion risk after heat treatment,

• reduced toughness if not properly controlled,

• more difficult field repair,

• and poor compatibility with an existing pinion.

The goal is not maximum hardness. The goal is the right hardness profile for the complete drive system.

Buyers should ask:

• What hardness range is recommended?

• Is the gear core toughness sufficient?

• Will this hardness level still allow stable machining and inspection?

• How does this hardness compare with the mating pinion?

• Is the gear intended for long-term wear balance or sacrificial protection?

A well-designed girth gear material route is usually based on balanced performance, not on a single extreme property.

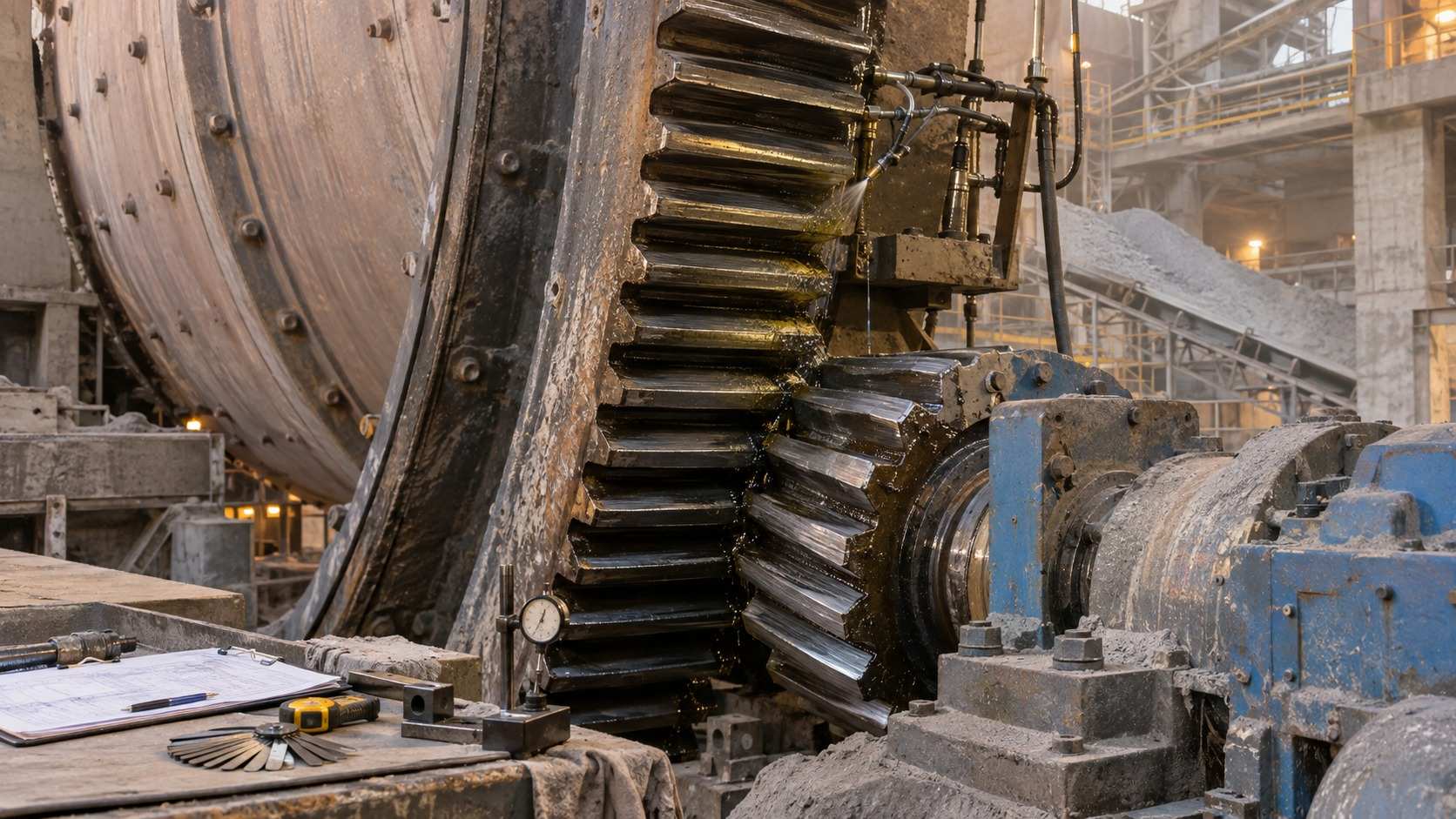

7. Girth Gear and Pinion Must Be Matched as a Pair

Material selection for the girth gear should never be made in isolation.

The mating pinion must be reviewed at the same time, including:

• pinion material,

• hardness,

• heat treatment,

• tooth geometry,

• wear condition,

• and service history.

In many open-gear drives, the pinion may be specified at a higher hardness than the girth gear because:

• it rotates more cycles,

• carries concentrated contact stress,

• and is smaller and more sensitive to surface fatigue.

But exact hardness relationships depend on the original design philosophy and lubrication condition.

If the new girth gear is significantly changed in hardness or material behavior while the old pinion remains in service, the result may be:

• unstable contact pattern,

• unexpected wear balance,

• pitting,

• scuffing,

• or shortened life of both components.

If the project also involves mesh setup and post-installation checks, read our alignment guide: Girth Gear and Pinion Alignment: A Complete Guide to Mesh Adjustment for Rotary Kilns and Ball Mills.

8. Material Choice Should Follow the Real Failure Mode

Before changing from one steel grade to another, first understand how the old gear failed.

This is an important buying principle:

If the failure was caused mainly by alignment or lubrication, changing only the steel grade may increase cost without delivering longer life.

If you are still preparing the quotation package, our RFQ guide can help: How to Send an RFQ for a Custom Girth Gear.

9. What Buyers Should Specify in the RFQ

If you want a technically meaningful quotation, your RFQ should state not only the gear dimensions, but also the material and heat-treatment expectations.

Include the following whenever possible:

Material Data

• required steel grade,

• acceptable equivalent grades,

• whether cast steel or forged route is required,

• and whether material substitution requires approval.

Heat-Treatment Data

• normalized, quenched and tempered, or other required condition,

• whether surface hardening is required,

• hardness target or approved range,

• hardness test locations,

• and any special stress-relief requirement.

Mechanical and Quality Requirements

• hardness report,

• material test certificate,

• chemical composition report if required,

• mechanical property report if required,

• UT and MT requirements,

• and final dimensional inspection report.

Buyers who provide this information early usually get better quotations and fewer technical delays.

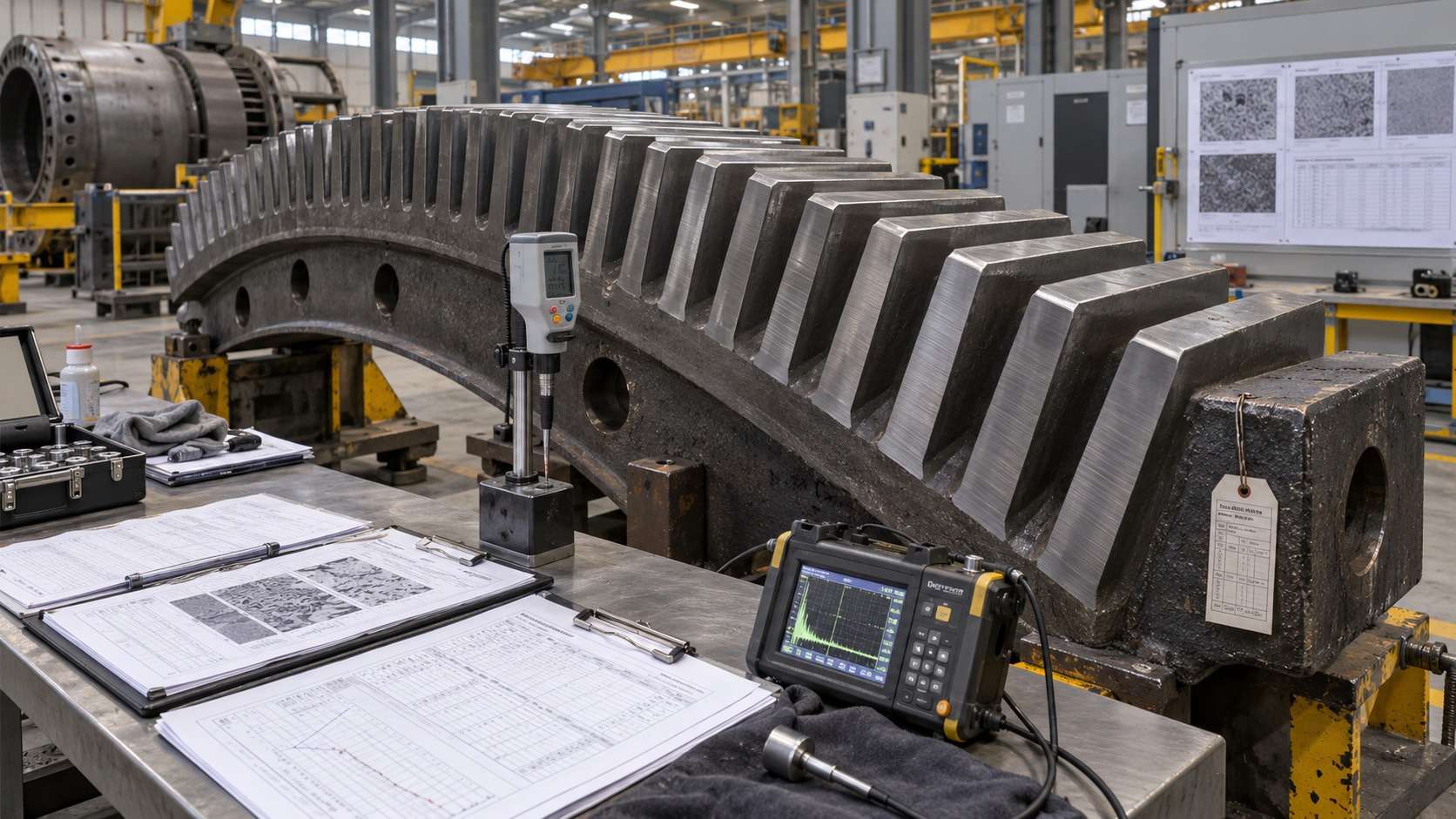

10. Inspection and Documentation to Request from the Supplier

Material quality cannot be judged by appearance alone. For large girth gears, serious buyers should request process and quality documentation.

Recommended documentation may include:

• Material Test Certificate (MTC)

• Chemical composition report

• Heat-treatment record

• Hardness test report

• Ultrasonic testing (UT) report

• Magnetic particle testing (MT) report where applicable

• Dimensional inspection report

• Runout measurement report

• Gear measurement or tooth inspection report

• Packing list and export packing confirmation

Yile Machinery's products page and gear manufacturing pages describe support for heavy-duty machining, inspection, and custom production for kiln, mill, and mining applications. These are exactly the capabilities that procurement teams should verify before placing a high-value order.

11. Common Material Selection Mistakes

Mistake 1: Choosing the Same Material Without Understanding Why the Old Gear Failed

Copying the previous steel grade may be correct — but only if the old gear failed after a normal service life and the root cause was not a design or operating issue.

Mistake 2: Upgrading to a Harder Alloy Without Reviewing Pinion Compatibility

A new girth gear does not work alone. Material upgrades must be checked against the mating pinion and lubrication condition.

Mistake 3: Focusing Only on Strength, Not Toughness

Large rotating gears need a balanced property profile. High strength without enough toughness can increase risk under shock loading or misalignment.

Mistake 4: Ignoring Heat-Treatment Distortion Risk

Large gears require stable tooth geometry. If the heat-treatment route creates excessive distortion, final accuracy may be difficult to control.

Mistake 5: Not Writing Material and Hardness Requirements into the Order

If the purchase order says only “as standard,” the supplier and buyer may be using different assumptions.

Mistake 6: Assuming Material Alone Solves Premature Failure

In many cases, the bigger issue is alignment, backlash, runout, lubrication, or pinion condition.

12. How to Decide Whether to Copy or Upgrade the Original Material

In replacement projects, buyers often face a practical question:

Should we copy the OEM material exactly, or should we upgrade?

A good decision framework is:

Copy the Original Material Route When:

• the original design performed well for a reasonable service life,

• the existing machine geometry is stable,

• no chronic failure pattern exists,

• and interchangeability is the top priority.

Consider an Upgrade When:

• the old gear suffered repeated wear or cracking,

• operating duty has increased,

• the previous material margin was too low,

• the plant wants longer service life,

• or the OEM material is no longer practical to source and an approved equivalent is needed.

The right approach is usually not “copy everything” or “upgrade everything.” It is a controlled technical review of:

• old failure mode,

• current operating duty,

• pinion condition,

• site alignment quality,

• and manufacturing feasibility.

Frequently Asked Questions

What material is most commonly used for large girth gears?

For large-diameter girth gears in rotary kilns and ball mills, cast steel is commonly used because it is practical for large sizes and segmented designs. Typical options may include carbon cast steel such as ZG45 or alloy cast steel such as ZG42CrMo, depending on load and service conditions.

Is forged steel always better than cast steel for girth gears?

No. Forged steel can be excellent for certain components and applications, but for very large segmented girth gears, cast steel is often the more practical and proven solution. The best choice depends on size, design, duty, manufacturing route, and total project requirements.

Should a girth gear be surface hardened?

Sometimes, but not always. Surface hardening can improve tooth flank wear resistance in certain conditions, but it also increases process complexity and requires careful control of distortion, toughness, and pinion compatibility. The choice must be based on the actual drive system and service conditions.

Is the hardest gear always the best gear?

No. Hardness is only one factor. A good girth gear also needs adequate toughness, stable machining accuracy, suitable repairability, and correct compatibility with the pinion and lubrication system.

Should the pinion material be reviewed when replacing the girth gear?

Yes. The girth gear and pinion operate as a matched pair. Material, hardness, wear condition, and tooth geometry of the pinion should always be reviewed before selecting the new girth gear specification.

What material information should I include in the RFQ?

You should include the required steel grade, acceptable equivalents, required heat-treatment condition, hardness range if known, inspection requirements, and whether any substitution requires buyer approval.

Can Yile Machinery manufacture custom girth gears with specific material and heat-treatment requirements?

Yes. Yile Machinery manufactures custom heavy-duty girth gears, ring gears, pinions, and related transmission components according to customer drawings, technical requirements, and application conditions for cement, mining, and other industrial sectors.

Request a Technical Review for Your Girth Gear Material Selection

If you are selecting a new or replacement girth gear for a rotary kiln, ball mill, SAG mill, or industrial dryer, material and heat treatment should be reviewed together with:

• gear size,

• operating duty,

• pinion condition,

• expected service life,

• inspection standard,

• and shutdown schedule.

To request a quotation or technical review, please send:

• gear drawing or field sketch,

• module, number of teeth, and face width,

• outside diameter and number of segments,

• application and equipment type,

• existing material information if known,

• pinion drawing or pinion data,

• required inspection documents,

• quantity, delivery time, and destination port.

Yile Machinery can support custom manufacturing for girth gears, pinions, shafts, and other heavy-duty machinery parts used in cement, mining, lime, and metallurgical industries. You can also explore our full product range or read more technical articles in our blog center.
