Wire Rope Sheave: Groove Design, D/d Ratio, Fleet Angle, and Selection Guide for Heavy Industrial Lifting

A wire rope does not wear out on its own. In the majority of premature wire rope failures in heavy industrial cranes and hoists, the root cause is not the rope itself — it is the sheave. An incorrectly sized groove crushes the rope's outer wires. An undersized pitch diameter causes fatigue from repeated bending. An excessive fleet angle causes the rope to climb the sheave flange and abrade against the groove edge. The sheave is the single component that most directly controls wire rope service life — yet it is routinely under-specified.

This guide provides the complete technical framework for selecting and specifying wire rope sheaves for heavy industrial lifting applications — overhead cranes, gantry cranes, hoists, ladle cranes, and offshore lifting equipment. It covers groove geometry, the critical D/d ratio, fleet angle limits, material and construction choices, load rating, and the failure modes that result from incorrect specification.

Part 1: The Function of a Wire Rope Sheave and Why It Matters

A wire rope sheave (also called a crane pulley or rope block sheave) serves three functions:

1. Direction change — redirecting the rope from one line of action to another

2. Mechanical advantage — in a multi-part line (reeving system), multiple sheaves multiply the lifting force available from the hoist drum

3. Rope guidance — keeping the rope on its intended path and preventing it from jumping off the block

Of these three functions, the third is the most demanding from a design standpoint. The sheave groove must support the rope over its full contact arc without crushing the outer wires, while the groove geometry must allow the rope to enter and exit cleanly without abrasion.

The consequence of sheave failure is not just sheave replacement — it is typically simultaneous rope damage, requiring replacement of both components. In a 500-tonne ladle crane, a wire rope replacement event can cost $50,000–$150,000 in parts and lost production time. The investment in correctly specified sheaves is trivially small by comparison.

Part 2: Sheave Groove Geometry — The Most Critical Specification

The groove is where the rope and sheave interact. Every dimension of the groove affects rope life.

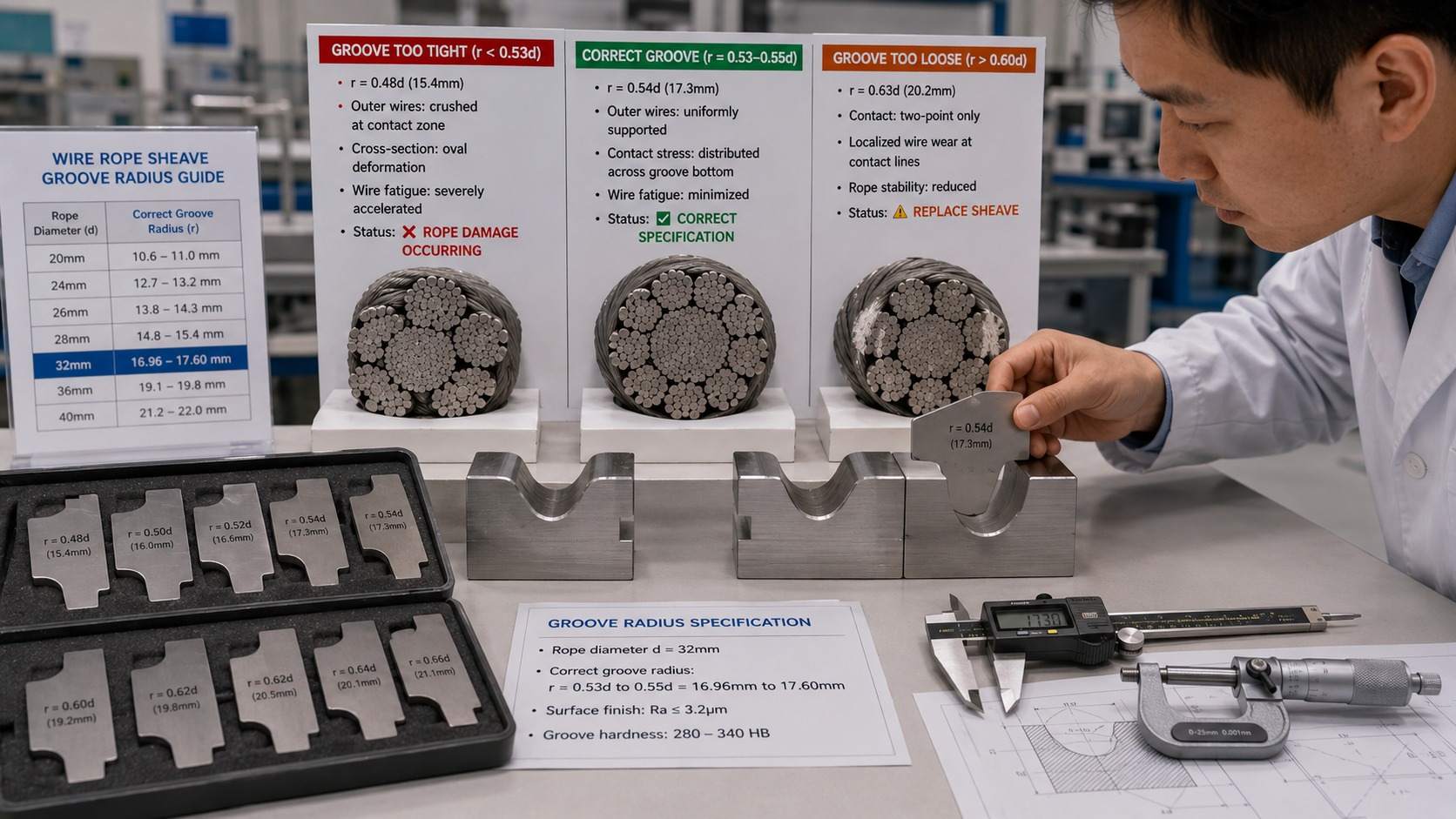

2.1 Groove Radius

The groove radius ($$r$$) is the radius of the curved bottom of the groove. It must be matched to the nominal rope diameter ($$d$$):

$$r = 0.53d \text{ to } 0.55d$$

This gives a groove diameter of $$1.06d$$ to $$1.10d$$ — slightly larger than the rope diameter.

Why slightly larger, not exactly equal?

• If the groove radius equals the rope radius exactly ($$r = 0.5d$$), the rope is in full contact with the groove bottom. This seems ideal but in practice causes problems: manufacturing tolerances mean the groove is sometimes slightly undersized, which crushes the rope; and the rope cannot seat properly as it wears and its diameter changes.

• If the groove radius is too small ($$r < 0.53d$$): The rope is pinched in the groove. The outer wires are crushed against the groove walls, accelerating wire fatigue and break. The rope cross-section deforms from circular to oval. This is the most common and most damaging error.

• If the groove radius is too large ($$r > 0.60d$$): The rope contacts the groove only at two points on its sides rather than being cradled at the bottom. This concentrates contact stress at two lines rather than distributing it across the groove bottom, causing localized wire wear. The rope is also less stable in the groove and more prone to jumping.

The correct range: $$r = 0.53d$$ to $$0.55d$$ for new sheaves. As the groove wears, the radius increases — a worn groove with $$r > 0.60d$$ should be re-machined or the sheave replaced.

2.2 Groove Depth

The groove must be deep enough to retain the rope under all operating conditions, including when the rope enters at the maximum fleet angle. The minimum groove depth is:

$$h_{groove} \geq 1.5d$$

For sheaves subject to high fleet angles or dynamic shock loading (e.g., offshore crane blocks), increase to:

$$h_{groove} \geq 1.75d$$

A groove that is too shallow allows the rope to ride up and out of the groove under lateral load, causing the rope to run on the sheave flange — a rapid wear and potential derailment condition.

2.3 Groove Flare Angle

The groove sides (the walls above the groove bottom) must flare outward at an angle to allow the rope to enter and exit the groove cleanly as it approaches at the fleet angle. The standard flare angle is:

$$\alpha_{flare} = 25° \text{ to } 30° \text{ per side (from vertical)}$$

A flare angle that is too small (< 20°) causes the rope to contact the groove wall as it enters at an angle, abrading the outer wires. A flare angle that is too large (> 35°) reduces the effective groove depth and groove retention.

2.4 Groove Surface Finish and Hardness

The groove surface finish affects the rate of rope wire abrasion during contact. The specified surface finish for crane sheave grooves is:

$$Ra \leq 3.2 , \mu m \text{ (machined finish)}$$

For high-duty cycle applications (A6–A8 crane duty class), specify:

$$Ra \leq 1.6 , \mu m \text{ (fine machined or ground finish)}$$

Groove surface hardness should be in the range of 280–340 HB for standard applications. Harder grooves (> 340 HB) wear the rope faster than the sheave — the sheave becomes the abrasive element. Softer grooves (< 260 HB) wear rapidly, causing the groove to become oversized and lose its rope-supporting geometry.

Part 3: The D/d Ratio — The Most Important Sheave Dimension

The D/d ratio is the ratio of the sheave pitch diameter ($$D$$, measured to the centerline of the rope in the groove) to the nominal rope diameter ($$d$$). It is the single most important parameter governing wire rope fatigue life.

3.1 Why D/d Ratio Controls Rope Fatigue

Every time the rope bends around a sheave, the individual wires in the rope are subjected to bending stress. The outer wires on the outside of the bend are in tension; the inner wires are in compression. This cyclic bending stress, repeated every time the rope passes over the sheave, causes fatigue cracks to initiate in the individual wires — eventually leading to wire breaks and rope condemnation.

The bending stress in the outer wires is approximately:

$$\sigma_{bending} \approx E_{wire} \cdot \frac{d_{wire}}{D}$$

Where:

• $$E_{wire}$$ = elastic modulus of wire rope wire (approximately 190,000–200,000 MPa)

• $$d_{wire}$$ = diameter of an individual wire in the rope (typically 0.05–0.15 × rope diameter depending on rope construction)

• $$D$$ = sheave pitch diameter

This shows that bending stress is inversely proportional to sheave diameter — doubling the sheave diameter halves the bending stress in each wire. Since fatigue life is approximately proportional to the cube of stress amplitude (for high-cycle fatigue):

$$L_{fatigue} \propto \left(\frac{1}{\sigma_{bending}}\right)^3 \propto D^3$$

Doubling the sheave diameter increases rope fatigue life by approximately 8 times. This is why D/d ratio is the dominant design parameter for rope life.

3.2 Minimum D/d Ratios by Application

Different standards and applications specify different minimum D/d ratios. The following table summarizes the requirements:

Important: These are minimum values. Where rope life is critical and sheave size is not constrained by space, use a D/d ratio 20–30% above the minimum. The cost of a larger sheave is negligible compared to the cost of more frequent rope replacements.

3.3 Pitch Diameter vs. Tread Diameter

The D/d ratio must be calculated using the pitch diameter — the diameter measured to the centerline of the rope in the groove — not the outside diameter of the sheave or the groove bottom diameter.

$$D_{pitch} = D_{groove bottom} + d_{rope}$$

A common specification error is to state the sheave outside diameter without specifying whether it is the pitch diameter or the tread diameter. Always clarify which dimension is being specified.

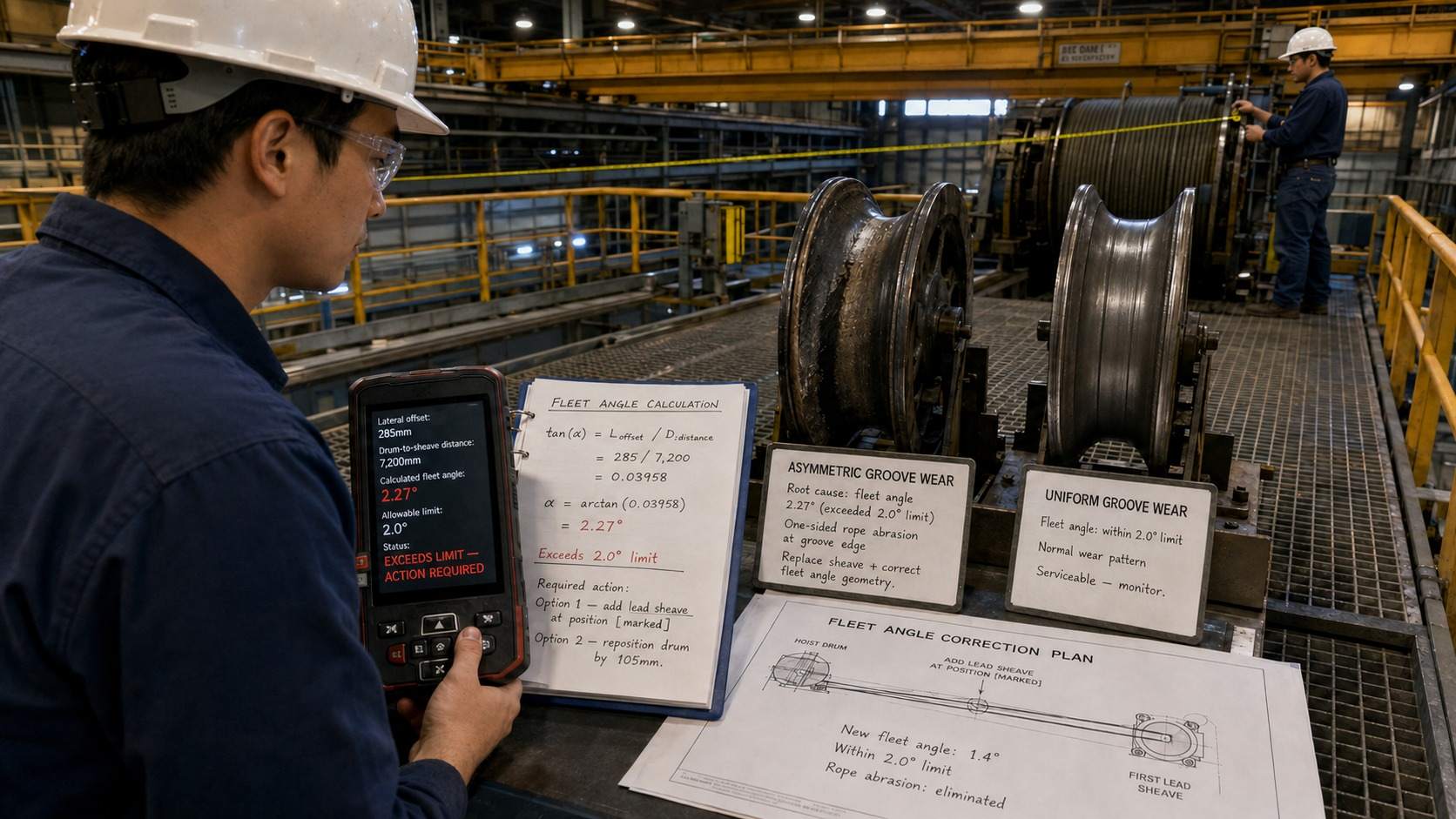

Part 4: Fleet Angle — The Hidden Cause of Rope and Sheave Damage

The fleet angle is the angle between the rope's actual line of approach to the sheave and the plane of the sheave (the plane perpendicular to the sheave axis, passing through the groove centerline). It exists whenever the rope drum or the previous sheave is not perfectly aligned with the sheave in question.

4.1 Fleet Angle Limits

Exceeding these limits causes:

• Rope abrasion at the groove edge — the rope rubs against the side of the groove on entry and exit

• Rope twist — the rope is forced to rotate as it enters the groove at an angle, causing torque buildup in the rope

• Uneven groove wear — one side of the groove wears faster than the other, creating an asymmetric groove profile

• Rope jumping — at very high fleet angles, the rope can climb out of the groove entirely

4.2 Calculating the Fleet Angle

For a drum-to-sheave arrangement:

$$\tan(\alpha_{fleet}) = \frac{L_{offset}}{D_{distance}}$$

Where:

• $$L_{offset}$$ = lateral offset between the drum centerline and the sheave groove centerline (mm)

• $$D_{distance}$$ = distance from the drum to the sheave along the rope line (mm)

Example: Drum offset = 300mm, drum-to-sheave distance = 8,000mm:

$$\alpha_{fleet} = \arctan\left(\frac{300}{8000}\right) = \arctan(0.0375) = 2.15°$$

This exceeds the 2° limit — the sheave must be repositioned or a lead sheave added to reduce the fleet angle.

Part 5: Forged vs. Cast Steel Sheaves

As with crane wheels (see our Forged Crane Wheel Material Selection Guide), the choice between forged and cast construction for sheaves has significant implications for service life and failure mode.

5.1 Forged Steel Sheaves

Forged steel sheaves are produced by pressing a heated steel billet into shape, producing:

• Refined, directional grain structure — grain flow follows the sheave rim contour, maximizing resistance to the bending fatigue loads at the groove root

• Closed internal porosity — no shrinkage voids that could initiate fatigue cracks under cyclic loading

• Higher achievable groove hardness — forged 42CrMo can be induction-hardened at the groove to 340–380 HB

• Superior impact resistance — critical for crane blocks subject to shock loading (e.g., sudden load pickup, rope snatch)

Forged steel sheaves are specified for:

• Crane duty class M5 and above

• Ladle crane and metallurgical crane blocks

• Offshore crane blocks (API Spec 2C applications)

• Any application where sheave failure has safety-critical consequences

• Large diameter sheaves (> 600mm pitch diameter) where casting porosity risk is significant

5.2 Cast Steel Sheaves

Cast steel sheaves are produced by pouring molten steel into a mold. They are acceptable for:

• Light to medium duty applications (M1–M4)

• Smaller sheave diameters (< 400mm pitch diameter)

• Indoor, controlled-environment cranes

• Applications where the cost differential cannot be justified by the duty cycle

Even for cast sheaves, specify cast steel (ZG270-500 or equivalent) — never cast iron for structural crane sheaves. Cast iron is brittle and should not be used in any lifting application where sudden fracture would be hazardous.

5.3 Performance Comparison

Part 6: Sheave Load Rating and Structural Calculation

6.1 Rope Pull Force

The maximum rope pull force ($$S_{max}$$) on a sheave is determined by the hoist system reeving and the rated load:

$$S_{max} = \frac{Q \cdot g}{n_{parts} \cdot \eta_{reeving}}$$

Where:

• $$Q$$ = rated lifting capacity (kg)

• $$g$$ = 9.81 m/s⊃2;

• $$n_{parts}$$ = number of rope parts in the reeving system

• $$\eta_{reeving}$$ = reeving efficiency (typically 0.96–0.98 per sheave)

Example: 100-tonne crane, 8-part reeving, 6 sheaves ($$\eta = 0.97^6 = 0.832$$):

$$S_{max} = \frac{100,000 \times 9.81}{8 \times 0.832} = \frac{981,000}{6.656} \approx 147,400 \text{ N} = 147.4 \text{ kN per rope part}$$

6.2 Sheave Pin Load

The sheave pin (axle) carries the resultant of the two rope tensions on either side of the sheave. For a sheave where the rope wraps through an angle $$\theta$$:

$$F_{pin} = 2 \cdot S \cdot \cos\left(\frac{\pi - \theta}{2}\right) = 2 \cdot S \cdot \sin\left(\frac{\theta}{2}\right)$$

For a 180° wrap (rope enters and exits parallel — common in a hook block):

$$F_{pin} = 2S$$

For a 90° wrap (rope turns 90°):

$$F_{pin} = S\sqrt{2} \approx 1.414S$$

The pin must be sized to carry $$F_{pin}$$ with adequate safety factor — typically 5:1 on breaking load for crane applications.

6.3 Sheave Rim Stress

The sheave rim is subjected to bending stress as the rope load is transmitted from the groove through the rim to the web and hub. For a simplified analysis, the rim can be treated as a curved beam:

$$\sigma_{rim} = \frac{M_{rim}}{Z_{rim}}$$

Where $$M_{rim}$$ is the bending moment in the rim (calculated from the rope load distribution) and $$Z_{rim}$$ is the section modulus of the rim cross-section.

For standard crane sheaves, the rim thickness (measured radially from the groove bottom to the inner face of the rim) should be:

$$t_{rim} \geq 0.25 \times D_{pitch}$$

This is a conservative minimum — for ladle crane and offshore applications, increase to $$t_{rim} \geq 0.35 \times D_{pitch}$$.

Part 7: Sheave Bearing Selection and Lubrication

The sheave bearing carries the pin load calculated in Part 6 and must be selected for the required service life under the operating conditions.

7.1 Bearing Types for Crane Sheaves

Rolling element bearings (spherical roller bearings):

• Most common for crane sheaves in modern equipment

• Self-aligning — accommodates shaft deflection and misalignment

• Low friction — reduces power consumption and heat generation

• Requires sealed or regularly greased design to exclude contamination

• Preferred for high-speed sheaves (peripheral speed > 1 m/s)

Plain (sliding) bearings — bronze bushings:

• Used in older equipment and some heavy-duty slow-speed applications

• Higher friction than rolling bearings — generates more heat

• More tolerant of contamination and shock loads

• Requires continuous or frequent lubrication

• Easier to replace in the field — no specialized tools required

For the comparison between bronze bushings and rolling element bearings in heavy industrial applications, see our detailed guide: Bronze Bushing vs. Rolling Element Bearing Selection.

7.2 Bearing Lubrication for Sheaves

Crane sheave bearings are subject to oscillating motion (the sheave rotates as the rope moves, but the rotation direction reverses as the hoist raises and lowers). Oscillating motion is more demanding on lubricants than continuous rotation because:

• The lubricant film is not continuously replenished by hydrodynamic action

• The contact zone does not move — the same bearing surfaces are loaded repeatedly

• Fretting corrosion can occur at the contact surfaces if lubrication is inadequate

Lubrication recommendations:

• Use a high-viscosity grease with EP (extreme pressure) additives

• Grease interval: every 250 operating hours for standard duty; every 100 hours for heavy duty or outdoor/contaminated environments

• For sealed bearings: replace bearing at end of calculated service life rather than attempting to re-grease

Sheave bearings in ladle crane hook blocks are subject to elevated temperatures from radiant heat — specify a high-temperature grease rated to at least 150°C for these applications.

Part 8: Sheave Inspection, Wear Limits, and Replacement Criteria

8.1 Groove Wear Measurement

The groove radius increases as the sheave wears. Measure the groove radius using a groove gauge (a set of radius templates matched to the rope diameter). Compare the measured radius to the original specification:

8.2 Groove Profile Inspection

Use a profile template (a thin metal template cut to the correct groove profile) to check the groove shape. A worn groove may develop:

• Flat bottom — the groove bottom has worn flat, concentrating rope contact at two points on the groove walls

• Asymmetric wear — one side of the groove is deeper than the other, indicating excessive fleet angle

• Groove ridging — a raised ridge forms at the groove center, caused by the rope riding up on the sides

Any of these conditions requires sheave replacement or re-machining.

8.3 Structural Inspection

Inspect the sheave for:

• Rim cracks — particularly at the groove root and at the rim-to-web junction. Use magnetic particle inspection (MT) for cast sheaves; MT or dye penetrant (PT) for forged sheaves

• Web cracks — inspect the web (the disc connecting rim to hub) for radial cracks

• Hub bore wear — measure the bore diameter and compare to the pin diameter; excessive clearance allows the sheave to rock on the pin, causing impact loading

• Flange damage — check sheave flanges (the raised edges on either side of the groove) for impact damage, cracks, or excessive wear

Replacement criteria:

• Any crack detected by NDT → immediate replacement

• Hub bore wear > 1% of nominal bore diameter → replace or re-bush

• Rim thickness worn below $$0.20 \times D_{pitch}$$ → replace

8.4 Inspection Intervals

Part 9: Common Sheave Failure Modes and Root Causes

Failure Mode 1: Rope Groove Wear-Through (Rapid Groove Wear)

Appearance: Groove radius increases rapidly; groove bottom becomes flat or irregular.

Root cause: Groove surface hardness insufficient for the rope contact stress; contamination (mill scale, abrasive dust) acting as a lapping compound between rope and groove; rope diameter larger than groove specification.

Prevention: Specify adequate groove hardness (280–340 HB); protect sheaves from abrasive contamination; verify rope diameter matches groove specification.

Failure Mode 2: Rim Fracture (Sudden)

Appearance: Sudden fracture of the sheave rim, often with little prior warning.

Root cause: Brittle fracture in cast iron or low-toughness cast steel; fatigue crack propagation from an undetected groove root crack; overloading (rope snatch, shock load).

Prevention: Specify forged steel for all safety-critical applications; implement regular MT inspection to detect fatigue cracks before they reach critical size; do not use cast iron sheaves in any lifting application.

Failure Mode 3: Rope Wire Breaks (Accelerated Rope Fatigue)

Appearance: Wire breaks appear in the rope at the sheave contact zone, at a rate faster than expected.

Root cause: D/d ratio below minimum — rope is being bent too sharply; groove radius too small — rope is being pinched; fleet angle excessive — rope is abrading against groove edge.

Prevention: Verify D/d ratio meets minimum for the crane duty class; check groove radius with gauge; survey fleet angle geometry.

Failure Mode 4: Rope Jumping (Rope Derailment)

Appearance: Rope rides up out of the groove and runs on the sheave flange or jumps off the sheave entirely.

Root cause: Groove depth insufficient; fleet angle excessive; rope slack condition (load suddenly released); sheave guard missing or damaged.

Prevention: Specify minimum groove depth of 1.5d; control fleet angle; install and maintain rope guards; ensure hoist controls prevent slack rope conditions.

Failure Mode 5: Bearing Seizure

Appearance: Sheave stops rotating — rope slides over a stationary sheave, causing rapid rope wear at the contact point.

Root cause: Bearing lubrication failure; bearing contamination; bearing overload from undersized specification; corrosion in outdoor or marine applications.

Prevention: Implement regular lubrication program; specify sealed bearings for contaminated environments; verify bearing load rating against calculated pin load.

Part 10: Sheave Specification Checklist

When ordering replacement or new sheaves, provide the following information:

Frequently Asked Questions

Q1: What is the correct groove radius for a wire rope sheave?

The groove radius should be 0.53 to 0.55 times the nominal rope diameter. For a 32mm rope, the correct groove radius is 17.0–17.6mm. A groove that is too tight (radius < 0.53d) crushes the rope's outer wires; a groove that is too loose (radius > 0.60d) concentrates contact stress at two points on the groove walls. Always verify groove radius with a gauge when inspecting sheaves.

Q2: What D/d ratio should I specify for my crane sheaves?

The minimum D/d ratio depends on the crane duty class: 16:1 for light duty (M1–M3), 18:1 for standard overhead cranes (M4–M5), 20:1 for heavy duty (M6–M7), and 25:1 for very heavy duty and ladle cranes (M8). These are minimums — where space allows, use a D/d ratio 20–30% above the minimum to significantly extend rope life. Remember that doubling the sheave diameter increases rope fatigue life approximately 8 times.

Q3: Should I specify forged or cast steel sheaves?

For crane duty class M5 and above, ladle cranes, offshore applications, and any safety-critical lifting, specify forged steel sheaves. Forged sheaves have superior fatigue life, impact toughness, and achievable groove hardness compared to cast sheaves. For light duty indoor applications (M1–M4), cast steel sheaves are acceptable. Never specify cast iron sheaves for any crane lifting application.

Q4: What is fleet angle and why does it matter?

Fleet angle is the angle between the rope's approach direction and the plane of the sheave. It exists when the rope drum or previous sheave is not perfectly aligned with the sheave. Excessive fleet angle (> 2° for most applications) causes rope abrasion at the groove edge, rope twist, and uneven groove wear. Calculate the fleet angle from the geometry of your reeving system and add a lead sheave if the fleet angle exceeds the limit.

Q5: How often should crane sheave grooves be inspected?

Groove radius should be measured at least annually for M4–M5 duty cranes and every 6 months for M6–M7 duty cranes. For ladle cranes (M8), measure quarterly. Use a groove radius gauge (radius template set) to compare the actual groove radius to the specification. Replace or re-machine the sheave when the groove radius exceeds 0.60 times the rope diameter.

Q6: Can a worn sheave groove be re-machined?

Yes — if the sheave rim has sufficient remaining thickness, the groove can be re-machined on a lathe to restore the correct profile. After re-machining, the groove must be re-hardened if the original specification included induction hardening. Verify that the remaining rim thickness after re-machining is at least 0.20 × pitch diameter. If the rim is too thin after re-machining, replace the sheave.

Yile Machinery: Custom Forged and Cast Steel Sheaves for Heavy Industrial Lifting

Yile Machinery manufactures wire rope sheaves and crane pulleys for overhead cranes, gantry cranes, ladle cranes, hoists, and specialized lifting equipment — from standard catalog sizes to fully custom designs manufactured to your drawings or reverse-engineered from worn components.

Our sheave manufacturing capabilities:

• Forging capacity: Sheaves up to 1,500mm pitch diameter from 42CrMo and 34CrNiMo6 alloy steel

• Casting capacity: Cast steel sheaves (ZG270-500, ZG310-570) for light-to-medium duty applications

• Groove machining: CNC turning to groove radius tolerance ±0.1mm; groove surface finish Ra ≤ 1.6 μm

• Heat treatment: Induction hardening of groove surface — 300–380 HB with controlled case depth ≥ 15mm

• NDT: 100% UT + MT on all sheaves, full inspection documentation

• Bearing fitting: Sheaves supplied with fitted spherical roller bearings or bronze bushings as specified

• Matched sets: Multiple sheaves for a single block supplied as a matched set

We also manufacture the complete range of components for your crane and lifting system:

• Overhead Crane Wheels & EOT Crane Wheels — forged and cast, all duty classes

• Girth Gears for Rotary Kilns and Ball Mills — large-diameter segmented ring gears

• Custom Worm Gear and Shaft Sets — high-ratio right-angle drives for hoist and crane applications

• Bronze Bushings and Plain Bearings — for sheave hubs and crane wheel axle boxes

• Mining & Cement Industry Solutions — full component packages for rotary kiln and mill systems

To receive a quotation, provide:

• ✅ Pitch diameter, rope diameter, groove radius, hub bore

• ✅ Crane type, capacity, and duty class (FEM/ISO)

• ✅ Material and hardness requirements (or describe application)

• ✅ Quantity and required delivery date

• ✅ Drawings or photographs of existing sheaves (for reverse engineering)

Email: jasmine@yileindustry.com

Submit RFQ: www.yilemachinery.com/contactus.html

All technical inquiries receive a response within 24 hours. Matched-set and urgent breakdown orders given priority scheduling.

Related Technical Resources

• Forged Crane Wheel: Material Selection, Load Rating & Manufacturing Guide

• Bronze Bushing vs. Rolling Element Bearing: Selection Guide

• Forged vs. Cast Steel Shafts for Crushers

• Open-Die Forging vs. Closed-Die Forging

• Rotary Kiln Trunnion Alignment Guide

• Girth Gear Installation and Maintenance

• Full Crane & Lifting Components Range
