Forged Crane Wheel: Material Selection, Load Rating, and Manufacturing Guide for Heavy Industrial Cranes

A crane wheel failure is not simply a maintenance event — it is a safety incident. When a crane wheel fractures or derails under load, the consequences range from dropped loads and structural damage to fatalities. Yet crane wheel selection and specification is frequently treated as a commodity purchasing decision, with buyers choosing on price alone and discovering the consequences only after premature failure.

The difference between a correctly specified, properly manufactured forged crane wheel and a substandard casting is not visible to the naked eye. It shows up in the fatigue life under cyclic loading, in the resistance to sudden fracture under shock loads, in the tread wear rate under high contact stress — and ultimately in the total cost of ownership over the crane's service life.

This guide gives procurement engineers, crane maintenance managers, and plant engineers the technical framework to specify crane wheels correctly — covering the fundamental choice between forged and cast construction, material and hardness selection, load capacity calculation, flange geometry, and the manufacturing quality parameters that determine whether a wheel will deliver its rated service life or fail prematurely.

Part 1: Crane Wheel Types and Their Applications

Before selecting materials and specifications, it is essential to understand the different crane wheel configurations and the operating conditions each must withstand.

1.1 By Crane Type

Overhead (Bridge) Crane Wheels — EOT Crane Wheels

Overhead crane wheels run on elevated runway rails, carrying the full bridge weight plus the lifted load. The end truck wheels (bridge travel wheels) carry the largest loads — typically 4 wheels per end truck, each carrying 25–35% of the total crane weight plus load. The cross-travel trolley wheels carry the trolley weight plus the lifted load and typically run on a lower-profile rail on the bridge girder.

Key characteristics:

• Load range: 5–500+ tonnes crane capacity

• Speed: typically 10–80 m/min for bridge travel, 5–40 m/min for cross-travel

• Duty cycle: varies from light (A1–A3) to very heavy (A7–A8) depending on application

• Environment: indoor (clean) to outdoor (exposed to weather, dust, heat)

Gantry Crane Wheels

Gantry cranes run on ground-level rails, with the crane structure supported directly on the wheels. The wheel loads are typically higher than overhead cranes of equivalent capacity because the gantry structure itself is heavier. Outdoor gantry cranes in ports, shipyards, and steel mills are exposed to the most severe environmental conditions.

Key characteristics:

• Load range: 50–1,000+ tonnes crane capacity

• Speed: typically 5–30 m/min

• Rail size: typically A75–A150 or equivalent crane rail

• Environment: often outdoor, exposed to weather, marine atmosphere, or industrial contamination

Ladle Crane Wheels

Ladle cranes in steel mills carry molten metal ladles — the most demanding crane application in terms of load, temperature, and consequence of failure. Wheel loads can exceed 100 tonnes per wheel. Radiant heat from the ladle elevates wheel temperatures significantly.

Key characteristics:

• Load range: 100–400+ tonnes crane capacity

• Duty cycle: A7–A8 (very heavy — continuous operation)

• Temperature: wheel surface temperatures can reach 80–120°C from radiant heat

• Consequence of failure: catastrophic — molten metal spill

Metallurgical and Process Crane Wheels

Cranes in aluminum smelters, foundries, and chemical plants face chemical attack in addition to mechanical loading. Wheel material must resist corrosion from process atmospheres.

1.2 By Wheel Profile

Double-Flange Wheels (Most Common)

Two flanges, one on each side of the tread, constrain the wheel laterally on the rail. Used where the rail must guide the wheel in both lateral directions — standard for most overhead and gantry crane applications.

Single-Flange Wheels

One flange on one side only. Used in applications where one side of the crane is guided by the flange and the other side is free to accommodate thermal expansion of the runway structure. Common on long-span gantry cranes.

Flat-Tread Wheels (Flangeless)

No flanges — the wheel is guided by other means (guide rollers or rail geometry). Used in some specialized applications where flange wear is a problem.

Tapered-Tread Wheels

The tread has a slight taper (typically 1:20 to 1:40) that causes the wheel to self-center on the rail through the conical action of the tread. Reduces flange contact and flange wear. Preferred for high-speed or high-duty cycle applications.

Part 2: Forged vs. Cast Crane Wheels — The Definitive Comparison

This is the most consequential specification decision for crane wheels. The choice between forged and cast construction affects fatigue life, impact resistance, tread hardness achievability, and failure mode — not just initial cost.

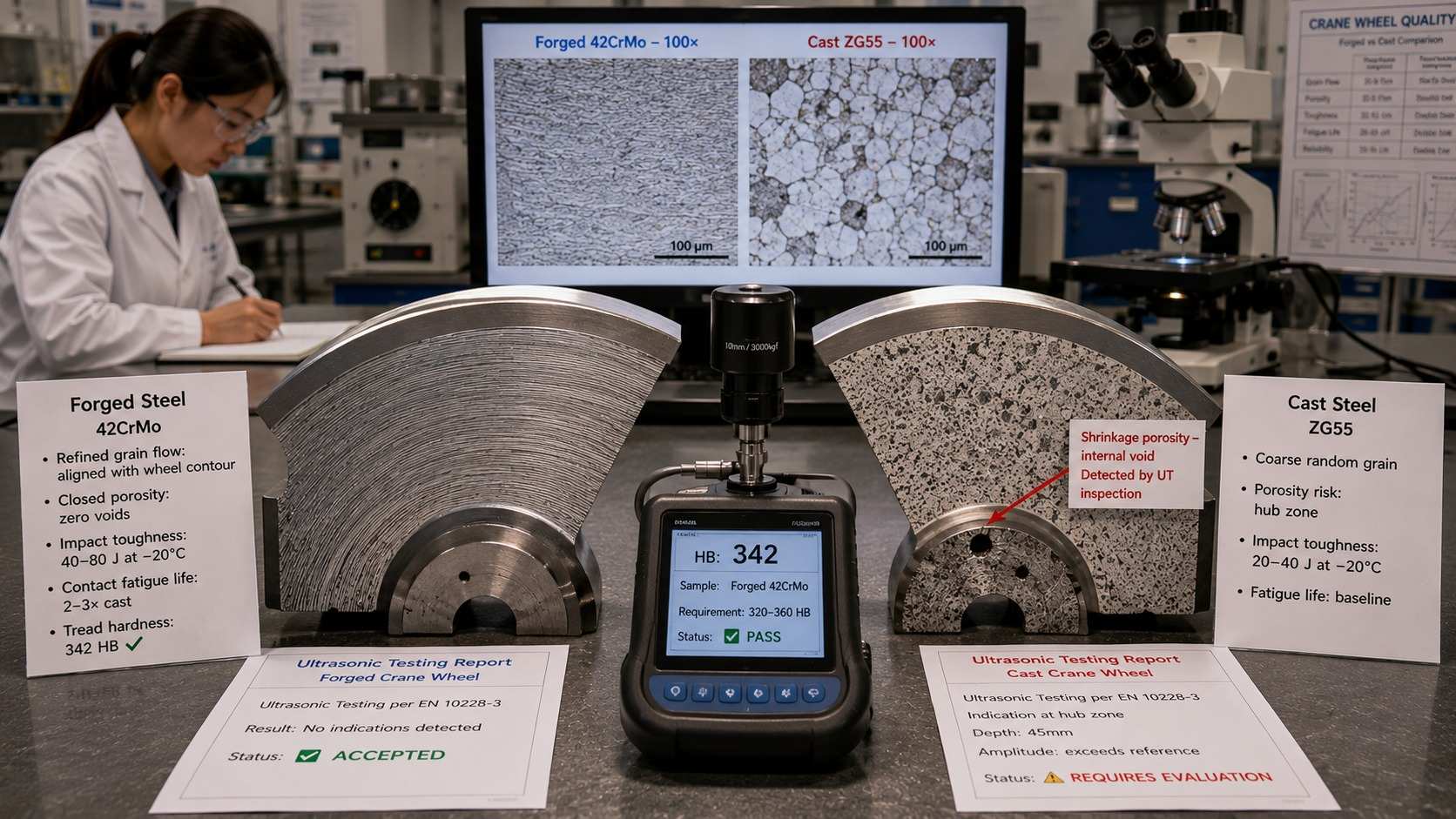

2.1 The Metallurgical Difference

Forged crane wheels are produced by pressing or hammering a heated steel billet into shape under high compressive force. The forging process:

• Refines the grain structure — the coarse, random grain structure of the original cast billet is broken up and refined into a fine, uniform structure aligned with the wheel geometry

• Closes internal porosity — any voids or micro-porosity in the billet are welded shut under the forging pressure

• Creates favorable grain flow — the grain lines follow the wheel contour, so the tread and flange zones have grain boundaries oriented to resist the applied stresses

• Produces a fully dense, defect-free structure — no shrinkage cavities, no gas porosity, no inclusion clusters

Cast crane wheels are produced by pouring molten steel into a mold and allowing it to solidify. The casting process:

• Produces a coarser grain structure — solidification from the liquid state creates larger grains than forging

• Is susceptible to shrinkage porosity — as the steel contracts during solidification, voids can form in the last-to-solidify zones (typically the center of the wheel hub and rim)

• Cannot produce the directional grain flow of a forging — grain boundaries are randomly oriented

• Can produce inclusion clusters if melt cleanliness is not carefully controlled

2.2 Performance Comparison

2.3 When to Specify Forged Wheels

Specify forged crane wheels for:

• Crane duty class A5 and above (ISO 4301) — medium-heavy to very heavy duty cycles

• Ladle cranes and metallurgical cranes — high loads, high temperatures, catastrophic failure consequences

• Outdoor gantry cranes — exposure to low temperatures increases brittle fracture risk in cast wheels

• High-speed cranes (bridge travel > 60 m/min) — higher dynamic loads and impact energy

• Any crane where wheel failure has safety or production-critical consequences

• Wheel diameter > 500mm — at large diameters, the internal porosity risk in cast wheels increases significantly

2.4 When Cast Wheels Are Acceptable

Cast crane wheels are acceptable for:

• Light duty cranes (A1–A3 duty class) with infrequent use

• Small wheel diameters (< 315mm) where the casting section is thin enough to solidify without significant porosity

• Indoor, controlled environment applications with no low-temperature exposure

• Budget-constrained applications where the cost differential cannot be justified by the duty cycle

Even for cast wheels, specify cast steel (not cast iron) for any structural crane application. Cast iron wheels are brittle and should never be used on cranes carrying significant loads.

Part 3: Material Selection for Forged Crane Wheels

3.1 Standard Steel Grades

The material grade determines the base mechanical properties of the wheel before heat treatment. For forged crane wheels, the following grades are standard:

55# / C55 Carbon Steel (GB/T 699 / EN 10083)

• Carbon content: 0.52–0.60%

• Tensile strength (Q&T): 700–800 MPa

• Hardness after rim quenching: 300–340 HB

• Application: Standard overhead crane wheels, light-to-medium duty (A1–A5)

• Advantage: Good balance of strength, toughness, and machinability; widely available; cost-effective

ZG55 Cast Steel (for cast wheels)

• Similar composition to 55# but in cast form

• Lower mechanical properties than forged 55# due to casting microstructure

• Application: Light duty cast crane wheels only

42CrMo / 42CrMo4 Alloy Steel (GB/T 3077 / EN 10083)

• Carbon: 0.38–0.45%, Chromium: 0.90–1.20%, Molybdenum: 0.15–0.25%

• Tensile strength (Q&T): 900–1,100 MPa

• Hardness after rim quenching: 340–380 HB

• Application: Heavy duty and very heavy duty cranes (A5–A8), ladle cranes, large diameter wheels (> 630mm)

• Advantage: Superior hardenability — achieves higher and more uniform tread hardness than carbon steel, especially for large wheel diameters where carbon steel cannot be hardened through the full rim section

34CrNiMo6 Alloy Steel (EN 10083)

• Higher alloy content — chromium + nickel + molybdenum

• Tensile strength (Q&T): 1,000–1,200 MPa

• Application: Extreme duty ladle cranes, very large diameter wheels (> 900mm), low-temperature environments (< −20°C)

• Advantage: Excellent low-temperature toughness — Charpy impact energy remains high at −40°C, preventing brittle fracture in cold climates

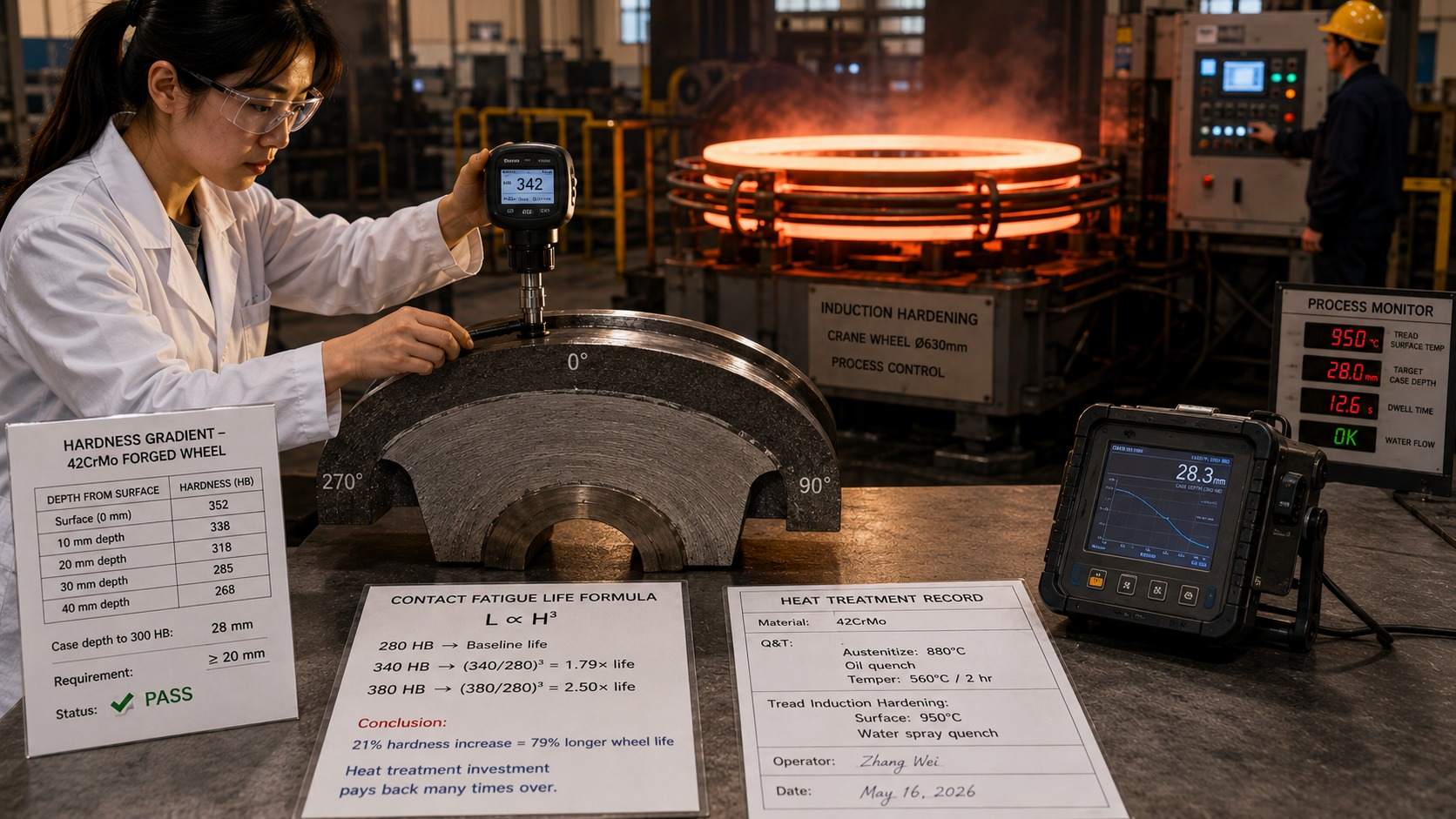

3.2 Heat Treatment for Crane Wheels

The heat treatment process is as important as the material grade — it determines the final mechanical properties and tread hardness.

Quenching and Tempering (Q&T) of the whole wheel:

The entire wheel is austenitized, quenched, and tempered. This produces uniform properties throughout the wheel body — good toughness in the hub and web, adequate hardness in the rim. However, the tread hardness achievable by whole-wheel Q&T is limited by the tempering temperature needed to achieve adequate toughness in the hub.

Typical result: 260–300 HB throughout, including tread surface.

Rim Quenching (Tread Hardening) after Q&T:

After whole-wheel Q&T, the tread surface is selectively hardened by induction heating or flame heating followed by rapid quenching. This produces a hard surface layer (case depth 20–40mm) on the tread while maintaining the toughened core properties established by the prior Q&T.

Typical result: 300–380 HB at tread surface, 260–300 HB at hub and web.

Why tread hardness matters:

The tread hardness determines the contact fatigue life of the wheel. Under the cyclic Hertzian contact stress between wheel tread and rail, subsurface fatigue cracks initiate and propagate — the harder the tread, the higher the contact stress it can sustain before fatigue damage initiates.

The relationship between tread hardness and contact fatigue life is approximately:

$$L_{fatigue} \propto H^3$$

Where $$H$$ is the tread hardness in HB. This means that increasing tread hardness from 280 HB to 340 HB (a 21% increase) increases contact fatigue life by approximately:

$$\left(\frac{340}{280}\right)^3 \approx 1.79 \times$$

— nearly doubling the fatigue life for a 21% hardness increase. The investment in proper heat treatment pays back many times over in extended wheel life.

3.3 Tread Hardness Specification

Part 4: Load Rating and Wheel Diameter Selection

Selecting the correct wheel diameter is a structural calculation, not a judgment call. An undersized wheel will fail by contact fatigue long before its expected service life.

4.1 Wheel Load Calculation

The wheel load is the force that each wheel must carry. For a standard 4-wheel end truck on an overhead crane:

$$P_{wheel} = \frac{(Q + G_{bridge}) \times f_{dynamic}}{n_{wheels}}$$

Where:

• $$Q$$ = rated lifting capacity (kN)

• $$G_{bridge}$$ = bridge self-weight (kN) — typically 0.3–0.5 × Q for light cranes, 0.5–0.8 × Q for heavy cranes

• $$f_{dynamic}$$ = dynamic load factor — typically 1.1–1.3 depending on crane class and speed

• $$n_{wheels}$$ = number of wheels sharing the load (typically 4 for a standard end truck)

Example: 50-tonne overhead crane, bridge weight 30 tonnes, dynamic factor 1.2, 4 wheels:

$$P_{wheel} = \frac{(500 + 300) \times 1.2}{4} = \frac{960}{4} = 240 \text{ kN per wheel}$$

4.2 Contact Stress Calculation

The contact stress between the wheel tread and the rail determines the fatigue life. For a cylindrical wheel tread on a flat-topped rail (the standard configuration), the maximum Hertzian contact pressure is:

$$p_0 = 0.418 \sqrt{\frac{P \cdot E}{R \cdot b}}$$

Where:

• $$P$$ = wheel load (N)

• $$E$$ = elastic modulus of steel (210,000 MPa)

• $$R$$ = wheel radius (mm)

• $$b$$ = effective contact width (mm) — approximately equal to the rail head width for a flat-topped rail

The allowable contact stress is related to tread hardness:

$$p_{0,allowable} \approx 3.5 \times H_{HB} \text{ (MPa)}$$

For a 340 HB tread: $$p_{0,allowable} \approx 1,190 \text{ MPa}$$

Practical implication: For a given wheel load, a larger diameter wheel produces lower contact stress (larger contact area). If the contact stress exceeds the allowable value, increase the wheel diameter — do not simply increase the hardness, as this reduces toughness.

4.3 Standard Wheel Diameter Selection Table

As a practical guide, the following table gives recommended minimum wheel diameters for standard crane duty classes:

These values are conservative estimates based on standard industry practice. Always verify with a formal contact stress calculation using the actual wheel load, rail size, and material properties.

Part 5: Flange Geometry and Rail Compatibility

The flange is the lateral guidance element of the crane wheel — it prevents the wheel from derailing by bearing against the side of the rail. Correct flange geometry is essential for both guidance performance and flange wear life.

5.1 Flange Height and Thickness

Flange height (the distance from the tread surface to the top of the flange) must be sufficient to prevent the wheel from climbing over the rail under lateral forces. Standard flange heights are:

$$h_{flange} \geq 0.12 \times D_{wheel}$$

For a 500mm diameter wheel: minimum flange height = 60mm.

Flange thickness (the thickness of the flange at the tread level) must be sufficient to resist the lateral forces without yielding or fracturing. Standard flange thicknesses are:

$$t_{flange} \geq 0.08 \times D_{wheel}$$

For a 500mm diameter wheel: minimum flange thickness = 40mm.

These are minimum values — for heavy duty cranes with significant lateral forces (wind loading on outdoor gantry cranes, skewing forces from misaligned runway rails), increase flange dimensions accordingly.

5.2 Tread Width and Rail Head Width Compatibility

The tread width must be wider than the rail head to ensure that the wheel load is carried on the tread and not on the flange root. The standard clearance is:

$$b_{tread} \geq b_{rail head} + 2 \times c_{lateral}$$

Where $$c_{lateral}$$ is the lateral clearance between the flange inner face and the rail side — typically 5–15mm per side depending on runway rail alignment tolerance.

Rail compatibility check: Always verify that the specified wheel tread width is compatible with the installed rail size. Common mismatches occur when crane rails are replaced with a different profile without updating the wheel specification.

5.3 Tread Profile: Cylindrical vs. Tapered

Cylindrical tread: The tread surface is parallel to the wheel axis. Simple to manufacture and inspect. The wheel does not self-center on the rail — lateral positioning is controlled entirely by the flanges. Flanges carry lateral loads continuously, leading to higher flange wear.

Tapered tread (conical tread): The tread surface has a slight taper — typically 1:20 (2.86°). The larger-diameter side of the taper is at the flange side. When the wheel moves laterally toward the flange side, the larger diameter causes the wheel to roll faster on that side, generating a restoring force that moves the wheel back toward center. This self-centering action reduces flange contact and flange wear significantly.

Recommendation: Specify tapered tread (1:20) for:

• High-speed cranes (travel speed > 40 m/min)

• Heavy duty cranes (A5 and above)

• Long-span cranes where runway rail alignment is difficult to maintain

• Any application where flange wear has been a recurring problem

Part 6: Crane Wheel Manufacturing Quality Requirements

Specifying the correct material and geometry is necessary but not sufficient — the manufacturing process must be controlled to ensure that the specified properties are actually achieved in the finished wheel.

6.1 Forging Quality Requirements

Forging ratio: The forging ratio (ratio of original billet cross-section area to finished forging cross-section area) determines the degree of grain refinement achieved. For crane wheels, a minimum forging ratio of 3:1 is required to achieve adequate grain refinement. Wheels forged from oversized billets with insufficient reduction will have coarser grain structure and lower mechanical properties than specified.

Die forging vs. open-die forging: For wheel diameters up to approximately 800mm, die forging (closed-die forging) is preferred — the die constrains the material flow and produces a more consistent shape and grain flow than open-die forging. For very large wheels (> 800mm diameter), ring rolling or open-die forging is used.

Forging temperature control: The forging temperature must be controlled within the correct range for the steel grade — too hot causes grain growth; too cold causes forging cracks. Temperature monitoring and recording during forging is a quality requirement for critical crane wheels.

6.2 Heat Treatment Verification

Hardness survey: After rim quenching, measure tread hardness at minimum 4 points around the circumference and at 3 depths (surface, 10mm depth, 20mm depth). The hardness must meet the specified range at all measurement points. A hardness gradient that drops too rapidly with depth indicates insufficient case depth — the hardened layer will be worn through before the wheel reaches its design life.

Hardness depth requirement:

• Minimum case depth to 300 HB: ≥ 20mm for wheels up to 630mm diameter

• Minimum case depth to 300 HB: ≥ 30mm for wheels 630–1,000mm diameter

• Minimum case depth to 300 HB: ≥ 40mm for wheels > 1,000mm diameter

6.3 Dimensional Tolerances

Matched pairs: For cranes where two wheels share a common axle (double-wheel bogies), the two wheels must be supplied as a matched pair with tread diameters within 0.3mm of each other. A diameter mismatch causes one wheel to carry more load than the other, accelerating wear of the larger-diameter wheel.

6.4 Non-Destructive Testing Requirements

For ladle crane wheels and other safety-critical applications, add:

• Charpy impact testing at −20°C (or lower if specified)

• Full mechanical property testing (tensile, yield, elongation) from test bars forged with the same heat

Part 7: Crane Wheel Wear Monitoring and Replacement Criteria

Even correctly specified and manufactured crane wheels wear over time. Establishing a systematic monitoring program prevents unexpected failures and allows replacement to be planned during scheduled maintenance windows.

7.1 Wear Measurement Methods

Tread diameter measurement:

Use a large outside micrometer or a dedicated wheel diameter gauge to measure the tread diameter at multiple points around the circumference. Compare to the original nominal diameter — the difference is the total tread wear.

Flange thickness measurement:

Use a flange thickness gauge (a dedicated tool available from crane maintenance suppliers) to measure flange thickness at the tread level. Compare to the original nominal thickness.

Profile measurement:

For high-duty cranes, use a profile gauge (template) to check the tread and flange profile against the nominal profile. Wear concentrations (hollowing of the tread center, flange root wear) are detected by profile comparison.

7.2 Replacement Criteria

7.3 Monitoring Interval Recommendations

Part 8: Common Crane Wheel Failure Modes and Root Causes

Understanding failure modes helps diagnose problems and prevent recurrence after replacement.

Failure Mode 1: Tread Spalling (Contact Fatigue)

Appearance: Flaking or pitting of the tread surface, typically in a band around the circumference.

Root cause: Contact stress exceeds the fatigue limit of the tread material — caused by undersized wheel diameter, insufficient tread hardness, or overloading.

Prevention: Correct wheel diameter selection based on load calculation; specify adequate tread hardness; do not overload the crane.

Failure Mode 2: Flange Fracture

Appearance: Sudden fracture of one or both flanges, often with little prior warning.

Root cause: Lateral forces exceeding flange bending strength — caused by runway rail misalignment, crane skewing, or insufficient flange dimensions. Brittle fracture in cast iron or low-toughness cast steel wheels.

Prevention: Specify forged steel wheels with adequate toughness; maintain runway rail alignment; check for crane skewing.

Failure Mode 3: Rapid Tread Wear (Abrasive Wear)

Appearance: Uniform tread diameter reduction at a rate faster than expected.

Root cause: Tread hardness insufficient for the contact stress level; rail surface contamination (mill scale, abrasive dust); wheel slipping on the rail (brake or drive issues).

Prevention: Increase tread hardness specification; clean rail surfaces; check drive and brake systems.

Failure Mode 4: Hollow Tread Wear

Appearance: The tread center wears faster than the edges, creating a concave (hollow) tread profile.

Root cause: The rail head is narrower than the tread width, concentrating contact stress at the center of the tread. Common when rails are replaced with a smaller profile without updating the wheel specification.

Prevention: Ensure rail head width is compatible with tread width; specify tapered tread profile to distribute contact.

Failure Mode 5: Flange Wear (One-Sided)

Appearance: One flange wears significantly faster than the other, or one end of the crane wears faster than the other.

Root cause: Runway rail misalignment — the rails are not parallel, forcing the crane to run at an angle (skewing), which loads one flange continuously.

Prevention: Survey and correct runway rail alignment; check crane end truck squareness.

Frequently Asked Questions

Q1: What is the difference between a forged crane wheel and a cast crane wheel?

A forged crane wheel is shaped by pressing or hammering a heated steel billet, producing a refined grain structure, closed porosity, and superior mechanical properties — particularly impact toughness and fatigue life. A cast crane wheel is produced by pouring molten steel into a mold, which can result in coarser grain structure and internal porosity. For heavy-duty cranes (A5 and above), ladle cranes, and outdoor gantry cranes, forged wheels are strongly preferred due to their superior resistance to fatigue and brittle fracture.

Q2: What tread hardness should I specify for my overhead crane wheels?

Tread hardness depends on the crane duty class and wheel load. As a general guide: 260–300 HB for light duty (A1–A3); 300–340 HB for medium duty (A4–A5); 320–360 HB for heavy duty (A6–A7); 340–380 HB for very heavy duty and ladle cranes (A8). For 42CrMo forged wheels with induction hardening, 340–380 HB is achievable with a case depth of 25–40mm. Always specify both the hardness range and the minimum case depth.

Q3: How do I calculate the correct wheel diameter for my crane?

Calculate the wheel load (crane capacity + bridge weight × dynamic factor ÷ number of wheels), then calculate the Hertzian contact stress for candidate wheel diameters using the formula $$p_0 = 0.418\sqrt{PE/Rb}$$. Select the smallest diameter where the contact stress is below the allowable value for the specified tread hardness (approximately 3.5 × HB in MPa). For a quick estimate, use the standard diameter selection table in Part 4 of this guide.

Q4: Should I replace crane wheels in pairs or individually?

For wheels sharing a common axle (double-wheel bogies), always replace as a matched pair — tread diameter must be within 0.3mm between the two wheels. For independent wheels on the same end truck, it is best practice to replace all four wheels simultaneously to maintain equal tread diameters and even load distribution. Replacing only the most worn wheel creates a diameter mismatch that causes the new wheel to carry disproportionate load.

Q5: Can crane wheels be re-profiled (re-turned) rather than replaced?

Yes — if the wheel body is structurally sound (no cracks, adequate remaining rim thickness), worn crane wheels can be re-turned on a lathe to restore the correct tread profile and diameter. However, re-turning removes material from the tread surface, reducing the remaining hardened case depth. After re-turning, verify that the remaining case depth still meets the minimum requirement (≥ 20mm to 300 HB for most applications). If the case depth is insufficient after re-turning, the wheel must be re-hardened or replaced.

Q6: What information do I need to provide to order replacement crane wheels?

Provide: wheel diameter (nominal), tread width, flange height and thickness, bore diameter and fit (H7 or as specified), material grade (or duty class for our recommendation), tread hardness requirement, quantity, and any special requirements (matched pairs, keyway, tapered tread). If drawings are available, please include them. For reverse-engineered replacements, provide the worn wheel or clear photographs with key dimensions. Contact jasmine@yileindustry.com — we respond within 24 hours.

Yile Machinery: Custom Forged Crane Wheels for Every Application

Yile Machinery manufactures forged and cast steel crane wheels for overhead cranes, gantry cranes, EOT cranes, ladle cranes, and specialized metallurgical cranes — from standard catalog sizes to fully custom designs manufactured to your drawings.

Our crane wheel manufacturing capabilities include:

• Forging capacity: Wheels up to 1,200mm diameter, from 55# carbon steel, 42CrMo, and 34CrNiMo6 alloy steel

• Heat treatment: Whole-wheel quench and temper + tread induction hardening — tread hardness up to 380 HB with controlled case depth

• Precision machining: CNC turning to dimensional tolerances per the table in Part 6 of this guide

• NDT: 100% UT + MT on all wheels, with full inspection documentation

• Matched pairs: Tread diameter matched to ±0.3mm for double-wheel bogies

• Custom profiles: Cylindrical tread, tapered tread (1:20 or as specified), single-flange, double-flange, flangeless

We also manufacture the complete range of wire rope sheaves and crane pulleys, gear couplings and shaft couplings for crane drives — enabling single-source procurement for your crane maintenance program.

To receive a quotation, provide:

• ✅ Wheel diameter, tread width, flange dimensions, bore diameter

• ✅ Crane type, capacity, and duty class

• ✅ Material and hardness requirements (or describe application — we will recommend)

• ✅ Quantity and required delivery date

• ✅ Drawings or photographs of existing wheels (for reverse engineering)

Email: jasmine@yileindustry.com

Submit your RFQ: www.yilemachinery.com/contactus.html

All technical inquiries receive a response within 24 hours. Matched-pair and urgent breakdown orders given priority scheduling.
