Forged vs Cast Gears: Which Is Better for Heavy-Duty Industrial Applications?

When buyers source industrial gears for kilns, mills, crushers, reducers, cranes, or mining machinery, one common question comes up early in the project: should the gear be forged or cast?

The answer depends on the application, gear size, loading condition, material requirement, and manufacturing feasibility. In heavy industry, both forged gears and cast gears are widely used, but they are not interchangeable in every case. Each manufacturing route offers different advantages in terms of mechanical strength, internal structure, size range, production flexibility, cost, and delivery.

At Yile Machinery, we manufacture a wide range of custom industrial transmission components, including girth gears, spur gears & pinions, bevel gears, and gear racks. Some of these products are more commonly made from cast steel, while others are better suited to forged alloy steel blanks.

This article explains the key differences between forged and cast gears, and how to choose the right option for heavy-duty industrial service.

What Is a Forged Gear?

A forged gear is made from a forged steel blank that has been shaped under compressive force before final machining. After forging, the blank is heat treated and machined into the required gear geometry.

Forged gears are commonly used when the application requires:

• high strength

• good toughness

• improved grain flow

• better resistance to impact loading

• reliable performance in high-torque service

Typical forged gear products include:

• forged pinion shafts

• high-load spur gears

• gearbox gears

• heavy-duty drive pinions

• some straight or spiral bevel gears

What Is a Cast Gear?

A cast gear is produced from a cast steel blank made by pouring molten metal into a mold. After solidification and heat treatment, the blank is machined and the tooth profile is cut to the required specification.

Cast gears are commonly selected when the application involves:

• very large diameter

• complex geometry

• segmented structure

• lower cost for large blanks

• practical manufacturing of oversized parts

Typical cast gear products include:

• large ring gears

• split girth gears

• segmented gears

• large-diameter replacement gears

• heavy-duty gears for kilns and mills

This is particularly relevant to your Girth Gears category, where large cast steel girth gears made from materials such as ZG45 and ZG42CrMo are used for rotary kilns, ball mills, SAG mills, and industrial dryers.

The Main Difference Between Forged and Cast Gears

Although both forged and cast gears can serve in demanding applications, the main difference lies in the way the material blank is formed.

Forging

In forging, the steel is plastically deformed under pressure. This can refine the grain structure and improve mechanical properties, especially toughness and fatigue resistance.

Casting

In casting, molten steel fills a mold cavity and solidifies into shape. This method allows very large and complex blanks to be made more economically, especially when forging would be impractical due to size.

In simple terms:

• forging is often preferred for strength and toughness

• casting is often preferred for very large size and structural practicality

However, the final choice should always be based on actual operating requirements rather than a general assumption that one method is always better.

1. Strength and Toughness: Forged Gears Usually Have the Advantage

For applications involving high torque, repeated shock loading, or dynamic load fluctuation, forged gears often have an advantage.

Why?

• forged steel generally has better internal compactness

• grain flow can improve toughness

• forged blanks are often preferred for shafts and pinions

• forged materials usually perform well in fatigue-critical applications

This is why forged alloy steels such as 42CrMo, 34CrNiMo6, 20CrMnTi, or 17CrNiMo6 are commonly used for:

• drive pinions

• gearbox gears

• spur gears & pinions

• matched bevel gear sets

• integral shaft-and-gear assemblies

For example, a mill drive pinion or gearbox output shaft often experiences concentrated load and repeated stress cycles. In such cases, a forged blank is usually the more reliable option.

2. Large Size and Segmented Design: Cast Gears Often Make More Sense

When the gear becomes very large, casting often becomes the more practical manufacturing route.

This is especially true for:

• large girth gears

• ring gears

• segmented kiln gears

• split gears for mills

• oversized replacement gears

For very large gears, forging may be limited by:

• forging equipment capacity

• blank handling difficulty

• high raw material cost

• excessive machining allowance

• transport limitations

That is why large girth gears for rotary kilns and ball mills are commonly produced as cast steel components, often in segmented form. According to your website, your girth gears can reach outer diameters up to 12 meters, with module ranges from M8 to M55, and can be supplied as two-half or multi-segment designs.

In this size range, casting is not just economical. It is often the most realistic engineering solution.

3. Cost Considerations: The Better Option Depends on Gear Size

There is no universal rule that forged gears are always more expensive or cast gears are always cheaper. Cost depends heavily on size, material grade, quantity, and process route.

Forged gears may be cost-effective when:

• the gear is medium-sized

• the part requires high mechanical performance

• forging stock is readily available

• machining allowance is controlled

• repeated production is planned

Cast gears may be cost-effective when:

• the gear is very large

• the design is segmented

• near-net shape blank production reduces waste

• one-off replacement parts are needed

• tooling cost is justified by part geometry

For example:

• a forged pinion shaft may be the best balance of performance and cost for a heavy-duty drive

• a large kiln ring gear is far more likely to be economical as a cast steel segmented gear

So the real question is not “which process is cheaper in general,” but which process is more suitable for this specific gear.

4. Internal Quality and Inspection Requirements

Both forged and cast gears can perform well when the manufacturing process is properly controlled and the inspection standards are appropriate.

For forged gears, buyers often focus on:

• material chemistry

• forging reduction ratio

• heat treatment quality

• hardness

• mechanical properties

• ultrasonic testing if required

For cast gears, buyers often focus on:

• casting soundness

• shrinkage control

• internal defect inspection

• stress relief

• ultrasonic testing

• machining allowance and stability

Your Girth Gears page already highlights quality practices such as:

• stress relief

• ultrasonic testing

• dimensional verification

In practice, a well-made cast gear will outperform a poorly made forged gear, and a properly forged gear will outperform a poorly controlled casting. The manufacturing discipline matters as much as the process category.

5. Machining and Heat Treatment Differences

After the blank is produced, both forged and cast gears still require precision machining and often heat treatment.

Common follow-up processes include:

• rough machining

• gear hobbing

• shaping or milling

• grinding or lapping

• quenching and tempering

• carburizing

• nitriding

• induction hardening

• stress relief

Forged gears are often selected when:

• tooth hardening is important

• shaft and gear are integrated

• fatigue life is critical

• high precision is required after heat treatment correction

Cast gears are often selected when:

• the component is very large

• tooth machining is performed after stress relief

• the body geometry is difficult to forge

• the gear is part of a segmented assembly

For example:

• forged spur gears & pinions often benefit from induction hardening, carburizing, or nitriding

• cast girth gears often rely on stable casting quality, stress relief, and accurate large-diameter tooth cutting

• gear racks may be forged or machined from alloy steel and then case hardened depending on duty conditions

6. Typical Applications: When Forged Gears Are Preferred

Forged gears are often preferred in applications such as:

• pinion shafts for mills and kilns

• industrial gearbox gears

• reducer output pinions

• crusher transmission gears

• high-load shaft-integrated gears

• precision bevel gears for right-angle drives

Why?

Because these parts often require:

• high bending strength

• good impact resistance

• reliable tooth root performance

• improved fatigue strength

• compact structure with high torque density

If the gear is relatively smaller but highly loaded, forging is often the better choice.

7. Typical Applications: When Cast Gears Are Preferred

Cast gears are often preferred in applications such as:

• girth gears for rotary kilns

• ring gears for ball mills and SAG mills

• segmented gears for industrial dryers

• large-diameter open gears

• oversized replacement gears for old equipment

These applications often prioritize:

• large diameter capability

• segmented transport and installation

• practical manufacturing route

• stable tooth machining on a large blank

• cost-effective production for oversized parts

8. Forged vs Cast Gears for Replacement Parts

Replacement projects are common in cement plants, mining operations, and heavy industrial maintenance. In these situations, the choice between forging and casting depends on more than performance alone.

Key considerations include:

• original part design

• available drawings

• lead time requirement

• equipment shutdown pressure

• reverse engineering feasibility

• installation constraints

• compatibility with mating parts

If the original part was a cast segmented girth gear, replacing it with a forged alternative may not be practical. If the original part was a forged pinion shaft, using a cast blank may create risk in service performance.

For replacement parts, the best approach is usually:

1. review the original design

2. analyze failure mode

3. confirm operating conditions

4. evaluate whether to keep or upgrade the original blank type

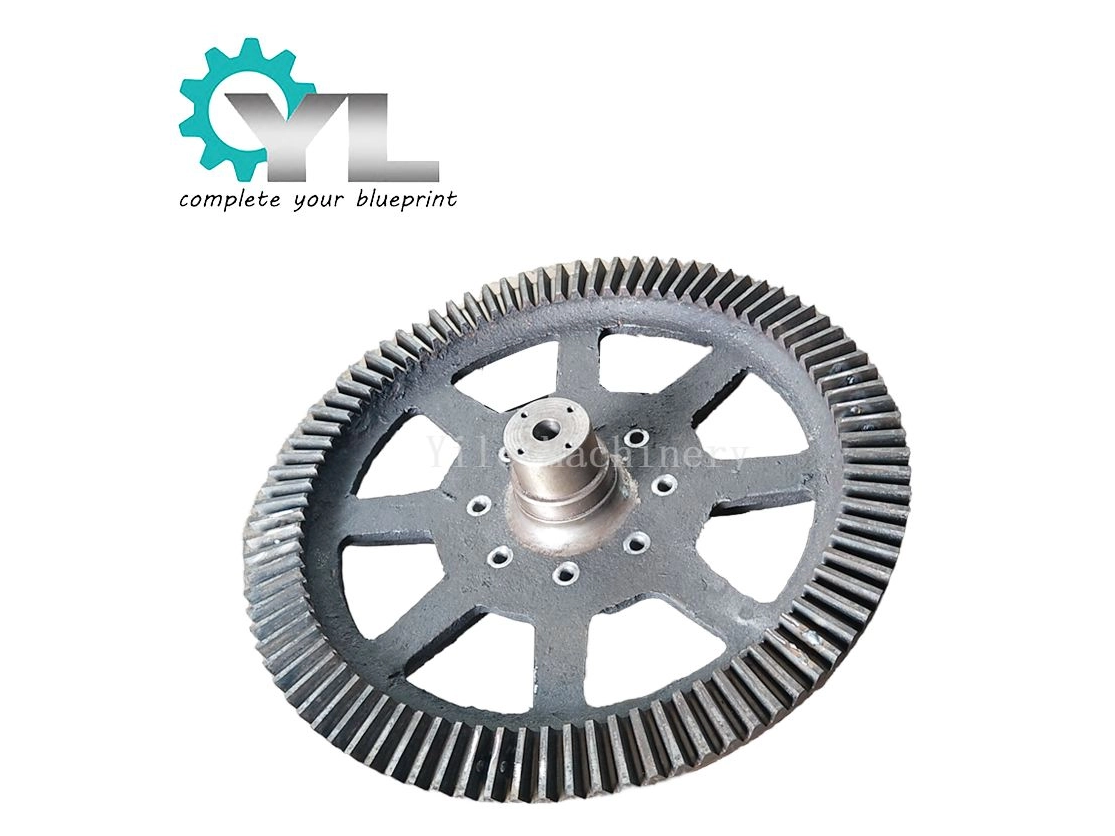

9. Can Bevel Gears Be Forged or Cast?

Yes, both are possible, but forged bevel gears are often preferred for higher-performance applications.

For bevel gears, the choice depends on:

• size

• torque

• tooth geometry

• noise requirement

• precision requirement

• production volume

Forged bevel gears are commonly used where:

• high torque transmission is required

• carburizing and grinding are needed

• tooth quality must be tightly controlled

• long service life is essential

Cast bevel gears may still be used in some applications, especially when:

• geometry is large

• cost pressure is high

• performance level is moderate

• application conditions are less demanding

10. How to Choose Between Forged and Cast Gears

Buyers should evaluate the following questions before selecting the blank type:

Choose forged gears when:

• high strength and toughness are critical

• the part is a pinion or shaft-integrated gear

• the service includes impact load

• fatigue resistance is important

• the size is suitable for forging

• high-performance alloy steel is required

Choose cast gears when:

• the gear diameter is very large

• segmented structure is needed

• the body geometry is complex

• one-piece forging is impractical

• installation and transport require split construction

• the application is a girth gear or ring gear

Ask your supplier to recommend the route based on:

• drawing

• dimensions

• material requirement

• application load

• service environment

• target service life

• budget

• delivery schedule

A capable supplier should not simply ask, “forged or cast?” They should help determine which route is technically and commercially appropriate.

11. There Is No Universal “Best” Option

It is tempting to assume that forged gears are always superior. In reality, this is too simplistic.

A forged pinion shaft may absolutely be the right choice for a high-torque drive system. But a giant kiln girth gear is usually better produced as a cast segmented gear because of size, practicality, and engineering logic.

Likewise, it is incorrect to assume that cast gears are low-grade by default. Large cast steel gears can deliver excellent service life when properly designed, stress-relieved, machined, inspected, and aligned in service.

The best choice is the one that matches:

• gear size

• load condition

• operating environment

• service life target

• manufacturing feasibility

• inspection requirement

• overall project economics

Conclusion

When comparing forged vs cast gears for heavy-duty industrial applications, the right choice depends on the actual job the gear must do.

In general:

• forged gears are often preferred for high-strength, high-toughness, high-torque applications such as pinion shafts, gearbox gears, and many spur gears & pinions or precision bevel gears

• cast gears are often the practical and economical choice for very large gears such as girth gears, segmented ring gears, and oversized mill or kiln drive components

At Yile Machinery, we support custom gear manufacturing based on application requirements, gear dimensions, material selection, and service conditions. Whether your project requires a cast steel girth gear, a forged pinion shaft, a precision bevel gear set, or a custom gear rack, the most important step is to evaluate the application and choose the process route accordingly.

If you are planning a new project or replacing an existing industrial gear, send us your drawing, technical specifications, or sample details for review.

FAQ

1. Are forged gears always stronger than cast gears?

In many cases forged gears have better toughness and fatigue resistance, especially for shafts and heavily loaded pinions. However, large cast gears can also perform very well when properly designed and manufactured.

2. Why are girth gears often cast instead of forged?

Because girth gears are usually very large in diameter and may require segmented construction. Casting is often the more practical and economical manufacturing route.

3. Are forged gears better for pinion shafts?

Yes, forged alloy steel is often preferred for pinion shafts because these parts usually experience high torque, concentrated load, and repeated stress cycles.

4. Can bevel gears be made by both forging and casting?

Yes. Both methods are possible, but forged bevel gears are more common in higher-performance industrial applications requiring good tooth quality and long service life.

5. How can I know whether my gear should be forged or cast?

The best way is to provide the drawing, dimensions, application, and operating conditions to an experienced supplier. They can evaluate the correct manufacturing route based on performance and practicality.
