Custom CNC Machined Metal Fixture Base Plate Precision Positioning Block for Automation Assembly Line

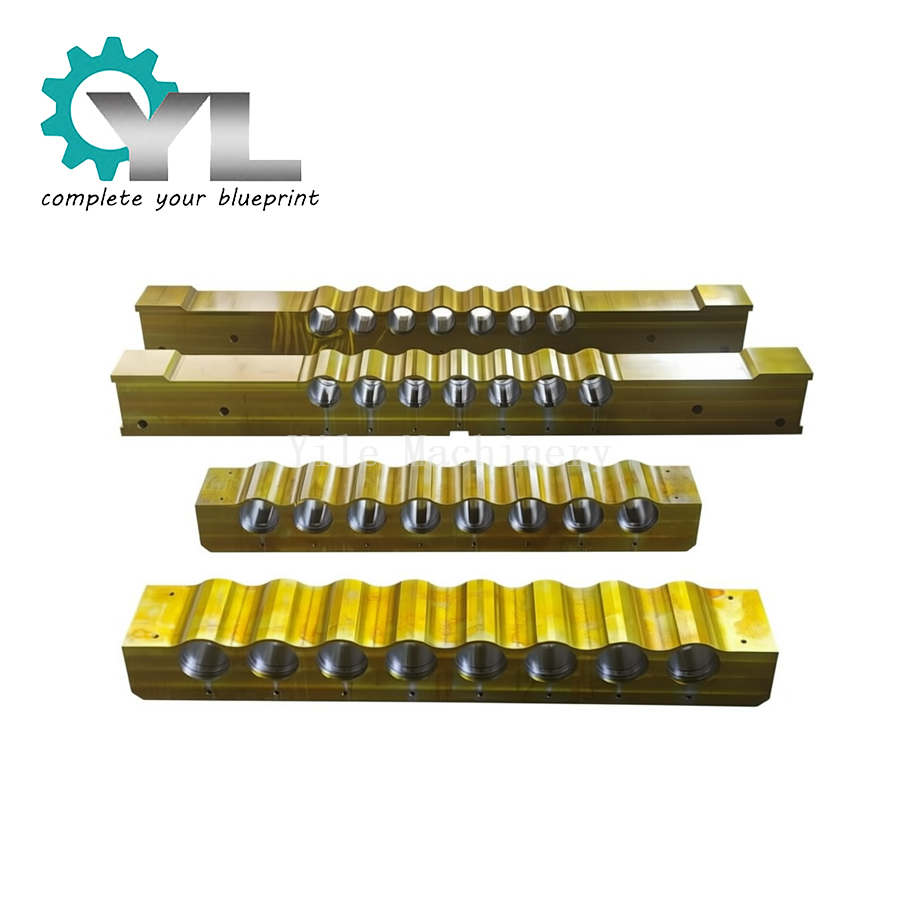

High-Precision Custom CNC Machined Fixture Base & Positioning Module
Designed for industrial automation and assembly lines, this heavy-duty fixture base serves as a critical component for precise mechanical support and positioning. Manufactured with strict tolerance control, it ensures stability and repeatability for your robotic workstations or production jigs.
Availability:
Inquire Add to Basket

Product Description

Product Description

1. Key Features

  • Customizable Design: Fully customizable dimensions, hole patterns, and groove shapes based on your CAD drawings or samples.

  • Precision Machining: High-accuracy CNC milling and drilling ensure perfect alignment for your assembly tools.

  • Durable Surface Treatment: Finished with industrial-grade yellow coating (paint/anodizing) for excellent corrosion resistance and wear protection.

  • Versatile Application: Ideal for use as a manifold block base, robot mounting plate, or multi-station positioning jig.

2. Specifications

Feature Details
Material Aluminum Alloy (6061/7075), Carbon Steel, or Stainless Steel (Customizable)
Surface Finish Yellow Chromate, Anodizing, Painting, or Powder Coating
Machining Tolerance +/- 0.01mm to +/- 0.05mm (Depends on requirements)
Processing Equipment 3-Axis/4-Axis/5-Axis CNC Milling Centers, Drilling Machines
Application Automation Equipment, Robotic Arms, Assembly Lines, Inspection Jigs
Drawing Format PDF, AI, DXF, DWG, STEP, IGES

3. Why Choose Us?

  • Direct Factory: No middlemen, offering you the most competitive factory-direct pricing.

  • Fast Prototyping: We can provide rapid prototyping services to speed up your R&D process.

  • Quality Assurance: 100% inspection before shipment with professional CMM reports available.

  • One-Stop Solution: From design optimization to manufacturing and surface treatment.

4. FAQ

Q: Do you accept custom designs?
A: Yes, we specialize in non-standard custom parts. Please send us your 2D/3D drawings for a quick quote.
Q: What is the MOQ (Minimum Order Quantity)?
A: We support both prototyping (MOQ=1) and mass production.
Q: How long is the lead time?
A: Usually 7-15 days for samples and 15-25 days for mass production, depending on complexity.
