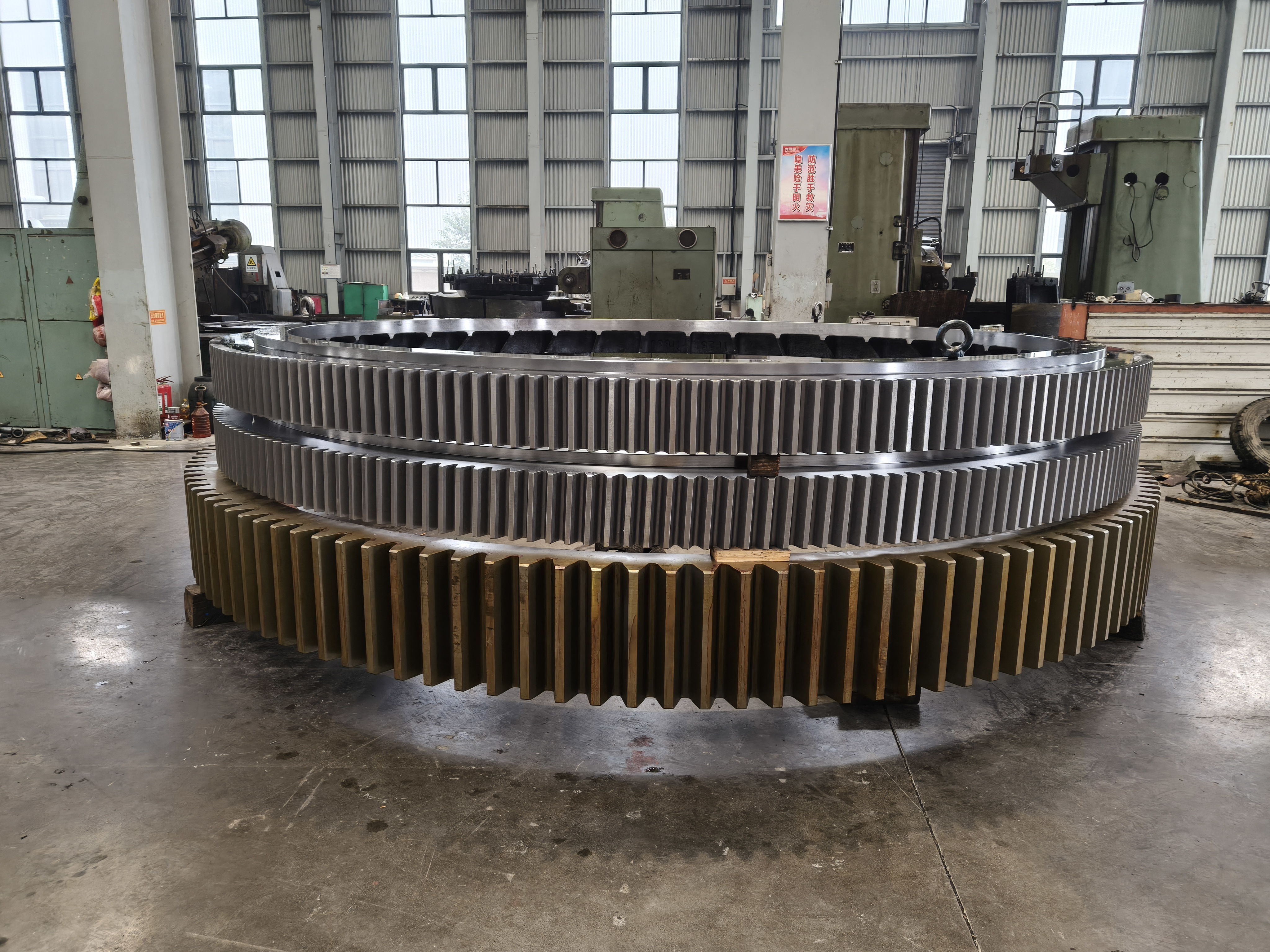

Custom Girth Gears for Rotary Kilns: Manufacturing Standards and Quality Control

When you're running a cement plant or mining operation, the last thing you want is unexpected downtime from a failed girth gear. These massive components are the backbone of rotary kilns, transferring torque from the drive system to the kiln shell. If something goes wrong, your entire production line comes to a grinding halt.

We've been manufacturing custom industrial gears for rotary kilns at our Luoyang facility for over 8 years. In that time, we've learned what separates a gear that'll last 20 years from one that'll fail within two. Let me walk you through what you need to know.

What Exactly Is a Girth Gear?

Let me start with the basics, because understanding the component helps you understand the quality requirements.

A girth gear is essentially a large ring gear that wraps around the outside of a rotary kiln or mill drum. It meshes with a pinion gear that's driven by the motor. The girth gear's job is straightforward but demanding: it supports the entire weight of the rotating kiln while transferring the torque needed to turn it.

These aren't small components. A typical girth gear for an industrial kiln can weigh anywhere from 2 tons to over 50 tons. And because the kiln shell itself can be 60-100 meters long, the gear needs to maintain precise alignment throughout its entire circumference.

Key Manufacturing Standards You Should Know

Here's where things get technical, but I promise it's worth understanding.

AGMA Standards

The American Gear Manufacturers Association has established quality standards specifically for industrial girth gears. The most relevant is AGMA 2004, which covers gear materials, heat treatment, and tooth geometry. When you're sourcing gears from China, you want a manufacturer familiar with these international standards.

ISO 1328

This international standard specifies gear geometry and quality requirements. It defines tooth thickness tolerances, pitch variation limits, and tooth profile accuracy classes. For rotary kiln applications, we typically recommend aiming for ISO 1328 Class 7 or better.

GB/T Standards

In China, the national standard GB/T 3480 series covers similar ground to ISO 1328. Most reputable Chinese gear manufacturers work to both GB/T and ISO standards, giving you international-quality components.

Material Selection Matters More Than You Think

The material your girth gear is made from directly impacts its performance and lifespan. Here's what you need to ask about.

Common Materials for Girth Gears

ZGCr5 (Low Alloy Cast Steel): This is our most commonly used material for standard rotary kiln applications. It offers good wear resistance and can be heat-treated to achieve the hardness needed for demanding environments.

ZG35CrMo (Alloy Cast Steel): If your kiln operates under higher stress or temperature variations, this material provides better toughness and fatigue resistance.

ZG42CrMo: For the most demanding applications, this high-alloy option delivers superior mechanical properties, though at a higher cost.

Heat Treatment is Non-Negotiable

Raw casting alone isn't enough. Your girth gear needs proper heat treatment to achieve the right balance of surface hardness and core toughness. We use normalized and tempered heat treatment processes, followed by case hardening on tooth surfaces.

The typical hardness range for kiln girth gear teeth is 260-320 HB on the surface, with adequate core toughness to resist cracking under shock loads.

The Manufacturing Process: Where Quality Is Made or Broken

Let me walk you through our process at Yile Machinery so you know what to expect from a quality manufacturer.

Pattern Making and Casting

First, we create or receive the casting pattern based on your drawings. The pattern quality directly affects the final gear's dimensional accuracy. After casting, we perform UT testing to detect any internal defects before machining begins.

Tooth Cutting

This is where precision really matters. We use CNC gear hobbing machines to cut the gear teeth to exact specifications. For large girth gears, this can be a multi-day operation. We typically achieve AGMA Quality Class Q9-Q11 during this stage.

Heat Treatment

After tooth cutting, the gear goes through a carefully controlled heat treatment process. This includes normalizing, tempering, and possibly surface induction hardening for the tooth flanks. We document every heat treatment cycle to provide you with traceability.

Final Machining and Inspection

The bore, keyways, and mounting surfaces get machined to final tolerances. Then comes the critical part: comprehensive inspection.

Quality Control: What Tests Should Your Manufacturer Perform?

Here's a checklist of the quality control measures you should expect from any serious girth gear manufacturer.

Dimensional Inspection

We verify every critical dimension against your drawings. This includes:

• Outer diameter and face width

• Bore diameter and tolerance

• Keyway dimensions

• Tooth thickness (at multiple points around the circumference)

• Face runout and radial runout

Hardness Testing

Using Brinell hardness testers, we verify surface hardness at multiple points on the gear. We also check for proper hardness penetration from surface to core.

Gear Metrology

Using specialized equipment, we measure tooth profile, tooth trace, and pitch accuracy. This confirms the gear will mesh properly with your pinion.

Magnetic Particle Testing (MT)

Before shipment, we perform magnetic particle inspection on the tooth flanks and all critical areas. This detects surface and near-surface cracks that could lead to premature failure.

Ultrasonic Testing (UT)

For critical applications, ultrasonic testing confirms the integrity of the casting throughout. This is especially important for large gears where internal defects could be catastrophic.

Common Quality Issues and How to Avoid Them

Based on our experience supplying gears to customers in Russia, Sri Lanka, and beyond, here are the most common problems we see.

Porosity and Inclusions

Poor-quality castings often have internal voids or non-metallic inclusions. These become crack initiation points under cyclic loading. Always insist on UT testing reports.

Incorrect Hardness

Too soft means rapid wear. Too hard means brittle failure. The manufacturer needs to hit the sweet spot, which requires precise heat treatment control and verification.

Dimensional Errors

If the gear doesn't match your drawings exactly, it won't fit properly during installation. Misalignment leads to vibration, noise, and accelerated wear on both the gear and pinion.

Why Choose a Specialized Gear Manufacturer?

You might be tempted to source girth gears from a general foundry. Here's why that's usually a mistake.

Girth gears require specialized equipment and expertise that general foundries simply don't have. The tooth cutting alone requires massive CNC gear machines that cost millions of dollars. The heat treatment processes need to be precisely controlled. The inspection equipment needs to be calibrated to international standards.

At Yile Machinery, we've invested specifically in gear manufacturing capabilities. Our heavy-duty CNC gear hobbing machines can handle gears up to 6 meters in diameter. We have dedicated heat treatment facilities and a full quality control laboratory.

Working with Chinese Manufacturers: Our Perspective

We've worked with buyers from Russia, Sri Lanka, and dozens of other countries. Here's what makes a successful partnership.

Communication is Key

Never assume the manufacturer understood your requirements. Always provide detailed drawings with tolerances, material specifications, and inspection requirements in writing. We prefer to review your drawings before quoting to identify any potential issues.

Request Samples or Trials

If you're ordering multiple gears, consider ordering one first as a sample. This lets you verify quality before committing to the full order.

Inspect Before Shipment

We encourage customers to arrange third-party inspection before shipment. This adds some cost but provides peace of mind. Alternatively, request detailed inspection reports with photos and measurement data.

Final Thoughts

A quality girth gear is a significant investment, but it's one that pays dividends over years of reliable operation. The extra cost of working with a specialized manufacturer who follows international standards is almost always worth it compared to the downtime costs of gear failures.

If you're in the market for rotary kiln girth gears, we'd be happy to review your requirements and provide a detailed quotation. We export to Russia, Sri Lanka, and worldwide, with experience handling the documentation and logistics for international shipments.

Don't hesitate to reach out with your drawings. We're here to help you find the right solution for your application.
