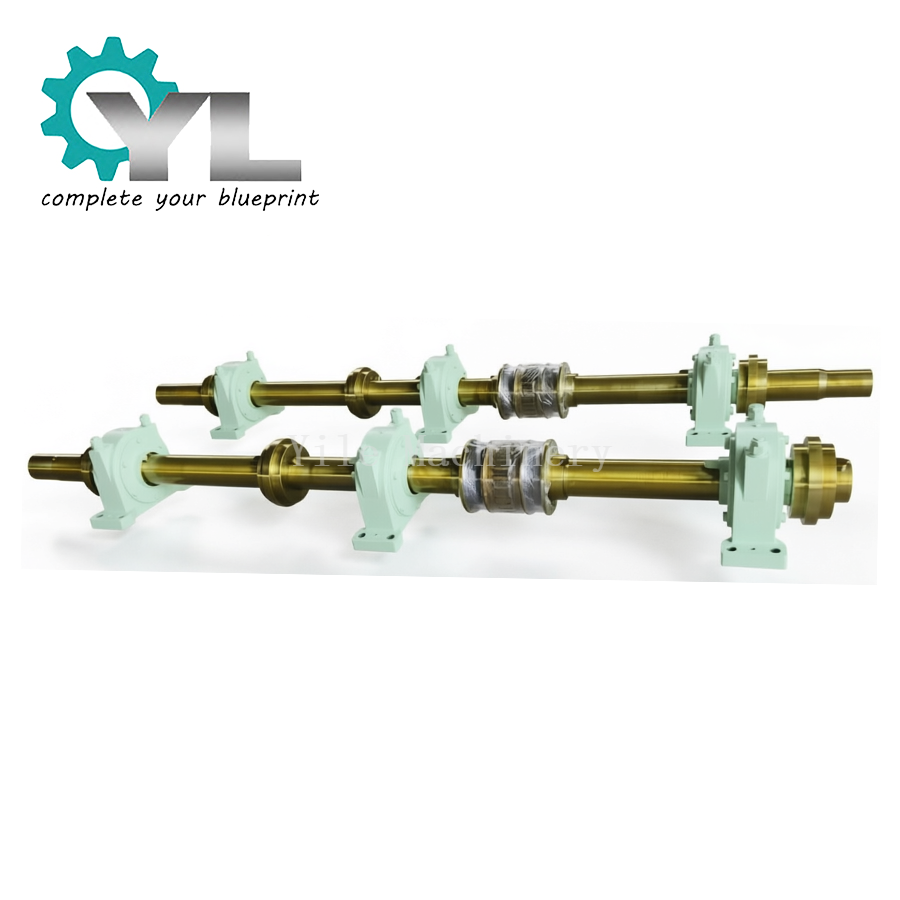

Heavy Duty Industrial Transmission Shaft Assembly with Split Sliding Bearing Housing for Mining Machinery

Elevate your hydraulic systems with our high-precision Hydraulic Valve Body / Manifold Block. Designed for demanding industrial applications, this component features complex internal channeling and precise port machining to ensure leak-free performance and optimal fluid control.
Availability:
Inquire Add to Basket

Product Description

Product Description

1. Product Overview

Whether you require a standard replacement or a fully customized solution based on your CAD drawings, our advanced CNC manufacturing process guarantees tight tolerances and superior surface finishes.

2. Key Features

  • Precision Machining: Manufactured using state-of-the-art 5-axis CNC centers to ensure dimensional accuracy within ±0.01mm.

  • Superior Material: Crafted from high-grade [Bronze / Brass / Aluminum Alloy / Steel] to withstand high pressure (up to [350] bar) and resist corrosion.

  • Leak-Proof Design: Expertly machined sealing surfaces and threaded ports ensure zero leakage under extreme operating conditions.

  • Complex Internal Channels: Capable of drilling intersecting holes and intricate flow paths as per specific hydraulic circuit requirements.

  • Surface Treatment: Available with various finishes including passivation, nickel plating, or painting to suit different environmental needs.

3. Technical Specifications

Parameter Details
Material C3604 Brass, QAl9-4 Aluminum Bronze, 6061 Aluminum, or Custom
Manufacturing Process CNC Milling, Deep Hole Drilling, Turning
Max Pressure Rating Up to 350 Bar (5000 PSI) - Customizable
Port Types BSP, NPT, SAE, Metric (DIN)
Tolerance Grade ISO h6 / H7 or per drawing
Surface Roughness Ra 0.8 - Ra 1.6 for sealing surfaces
Application Hydraulic Power Units, Injection Molding Machines, Marine Systems

4. Customization Services (OEM/ODM)

We specialize in non-standard customization.

  • Drawings Accepted: PDF, CAD, SolidWorks, ProE, STEP files.

  • Prototyping: Rapid prototyping available for design verification.

  • Testing: We can perform pressure testing and flow testing before shipment upon request.

5. Quality Control

Every valve body undergoes a strict inspection process:

  1. Material Inspection: Spectrometer analysis to verify alloy composition.

  2. Dimensional Check: CMM (Coordinate Measuring Machine) verification.

  3. Visual Inspection: 100% visual check for burrs and surface defects.

6. Packaging & Shipping

  • Packaging: Individual protective wrapping + Foam insertion + Strong Export Carton/Wooden Case.

  • Lead Time: 15-25 days depending on quantity and complexity.

FAQ

Q: Can you manufacture based on our samples?
A: Yes, we can reverse engineer and manufacture based on physical samples or technical drawings.
Q: What is the minimum order quantity (MOQ)?
A: For customized parts, our MOQ is typically 1 piece for prototyping and 10 pieces for mass production.
Q: Do you provide material certificates?
