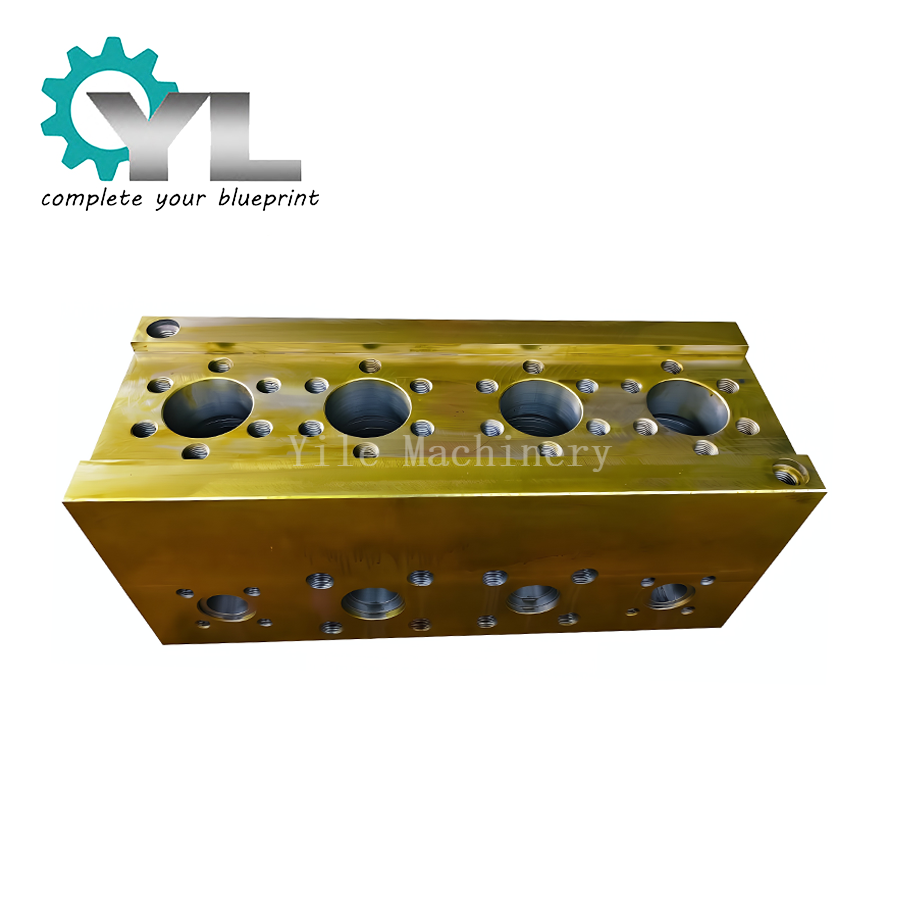

Custom Precision Machined Bronze Valve Body / Hydraulic Manifold Block for Industrial Machinery

Elevate your hydraulic systems with our high-precision Hydraulic Valve Body / Manifold Block. Designed for demanding industrial applications, this component features complex internal channeling and precise port machining to ensure leak-free performance and optimal fluid control.
Availability:
Inquire Add to Basket

Product Description

Product Description

1. Product Overview

Whether you require a standard replacement or a fully customized solution based on your CAD drawings, our advanced CNC manufacturing process guarantees tight tolerances and superior surface finishes.

2. Key Features

  • Precision Machining: Manufactured using advanced 5-axis CNC centers to ensure hole concentricity and flatness within microns (±0.01mm).

  • High-Quality Material: Made from premium [Insert Material, e.g., C95400 Aluminum Bronze / Brass / Steel], offering excellent corrosion resistance and high-pressure durability.

  • Complex Internal Geometry: Capable of drilling deep holes and intersecting channels with smooth internal surfaces to minimize pressure drop.

  • Leak-Proof Design: All ports are meticulously deburred and chamfered to prevent seal damage and ensure a perfect fit with standard fittings.

  • Customizable Finish: Available in natural metal finish, zinc plating, or nickel plating upon request.

3. Technical Specifications

Specification Details
Product Name Hydraulic Valve Body / Manifold Block / Distribution Block
Material Options Brass, Bronze, Carbon Steel (1045/1018), Stainless Steel (304/316), Aluminum 6061/7075
Manufacturing Process Die Casting + CNC Machining / Forging + CNC Machining / Solid Bar CNC Machining
Max Dimensions Up to [e.g., 1000mm x 800mm x 500mm] (Customizable)
Tolerance ISO 2768-m / H7/H8 for valve bores
Surface Roughness Ra 0.8 - Ra 1.6 for sealing surfaces
Working Pressure Up to [e.g., 350 Bar / 5000 PSI] depending on material
Thread Standards BSP, NPT, SAE, Metric (ISO)
Application Hydraulic Power Units, Injection Molding Machines, Marine Equipment, Mining Machinery

4. Why Choose Us?

  • OEM/ODM Expertise: We accept custom orders based on your 2D drawings (PDF/DWG) or 3D models (STEP/IGES).

  • Strict Quality Control: Every unit undergoes 100% dimensional inspection and pressure testing before shipment.

  • Fast Turnaround: Optimized production lines allow for rapid prototyping (7-15 days) and mass production.

  • Global Export Experience: Familiar with international packaging and shipping standards.

5. Application Scenarios

This valve body is widely used in:

  • Mobile Hydraulics (Excavators, Loaders)

  • Industrial Presses

  • Plastic Injection Molding Systems

  • Oil & Gas Pipeline Control Systems

  • Agricultural Machinery

6. Packaging & Shipping

  • Protection: Each product is cleaned, coated with anti-rust oil, and wrapped in VCI paper.

  • Packaging: Secured in sturdy wooden crates or heavy-duty cartons to prevent damage during transit.

  • Shipping Terms: FOB, CIF, DDP available.

FAQ (Frequently Asked Questions)

Q: Can you manufacture this based on my specific design?
A: Yes, we specialize in custom manufacturing. Please send us your drawings or samples for a quick quote.
Q: What is the lead time for a sample?
A: Typically 7-15 days for prototyping, depending on the complexity of the structure.
Q: Do you provide material certificates?
