What Role Do Pulleys Play in Large Mining Excavators?

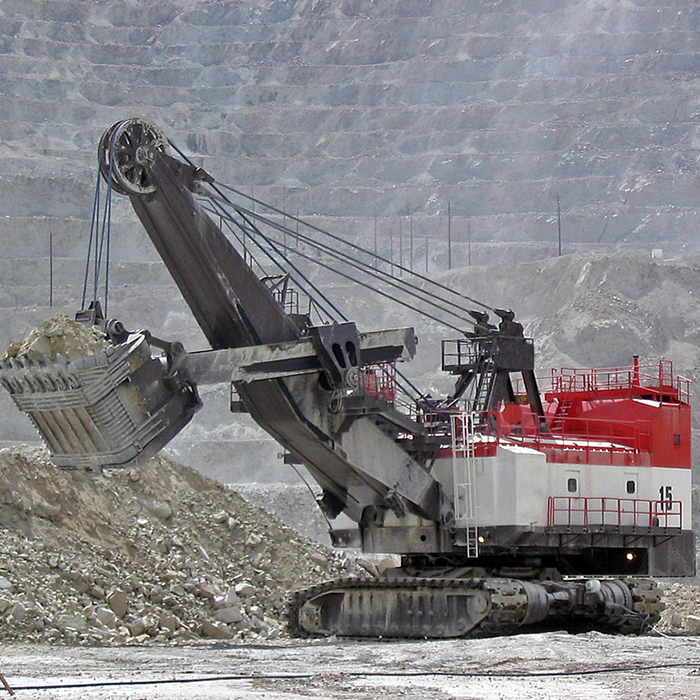

In large mining excavators, the pulleys (or pulley systems) are crucial transmission and load-bearing components, and they mainly enhance the performance and efficiency of the equipment through the following functions:

Crane PulleyDrum PulleyDriven Pulley

                    Drive Open Pulley                                   Crusher Pulley Wheel                                  Rope Pulley Block


1.Changing the direction of force and transmitting power

  • Wire rope guidance: The pulley system guides the movement direction of the wire rope, transferring the power generated by the engine or hydraulic motor to the bucket, boom, and other actuating components, enabling excavation, lifting, or towing actions.

  • Coordinating multi-institutional movements: For example, in a backhoe excavator, the pulley system coordinates the linkage of the bucket, the bucket arm, and the lifting cable to ensure precise excavation trajectories.


2. Effort Reduction and Force Enhancement (Mechanical Advantage)

  • The pulley system multiplies the pulling force: By constructing a system of multiple pulleys as the moving pulley, the input force can be amplified several times (for example, a force enhancement ratio of 1:4), enabling the equipment to lift heavier loads (such as tens of tons of ore) with less power.

  • Reduce the load on the engine/hydraulic system: Decrease the demand for the original power source, extend the equipment's lifespan and reduce energy consumption.


3. Support and Balance Load

  • Distributing the Load: In the boom or truss structure of large excavators, the pulley system distributes the tension of the steel wire rope, preventing local overload and maintaining the stability of the steel structure.

  • Dynamic balance: During movement or rotation, the pulley system helps to stabilize the weight fluctuations of the bucket and the load, reducing the shaking of the equipment.


4. Extend the lifespan of the steel wire rope

  • Reduce friction wear: The pulleys are made of high-strength alloys or composite materials, with smooth surfaces and possibly lubrication grooves, thereby reducing the frictional loss of the steel wire rope.

  • Anti-skid design: The edge flanges or guiding devices prevent the steel wire rope from slipping off, avoiding sudden failures.


5. Adaptation to extreme conditions

  • Resistant to heavy loads and impacts: Mining pulleys need to withstand the intense vibrations and rock impacts during mining operations. Typically, reinforced bearings and sealing designs are adopted.

  • Dust prevention and corrosion resistance: In the dusty and humid environment of open-pit mines, the pulleys must have the ability to resist rust and self-clean.


Regularly inspect the wear of the pulleys, the lubrication of the bearings, and the alignment of the steel wire ropes to prevent downtime or accidents caused by pulley failure. Modern intelligent excavators may also be equipped with sensors to monitor the condition of the pulley system, enabling preventive maintenance.

In summary, the pulley in mining excavators serves not only as a "link" for power transmission, but also as a guarantee for stability and efficiency, directly influencing the working ability and reliability of the equipment.
